Description

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.

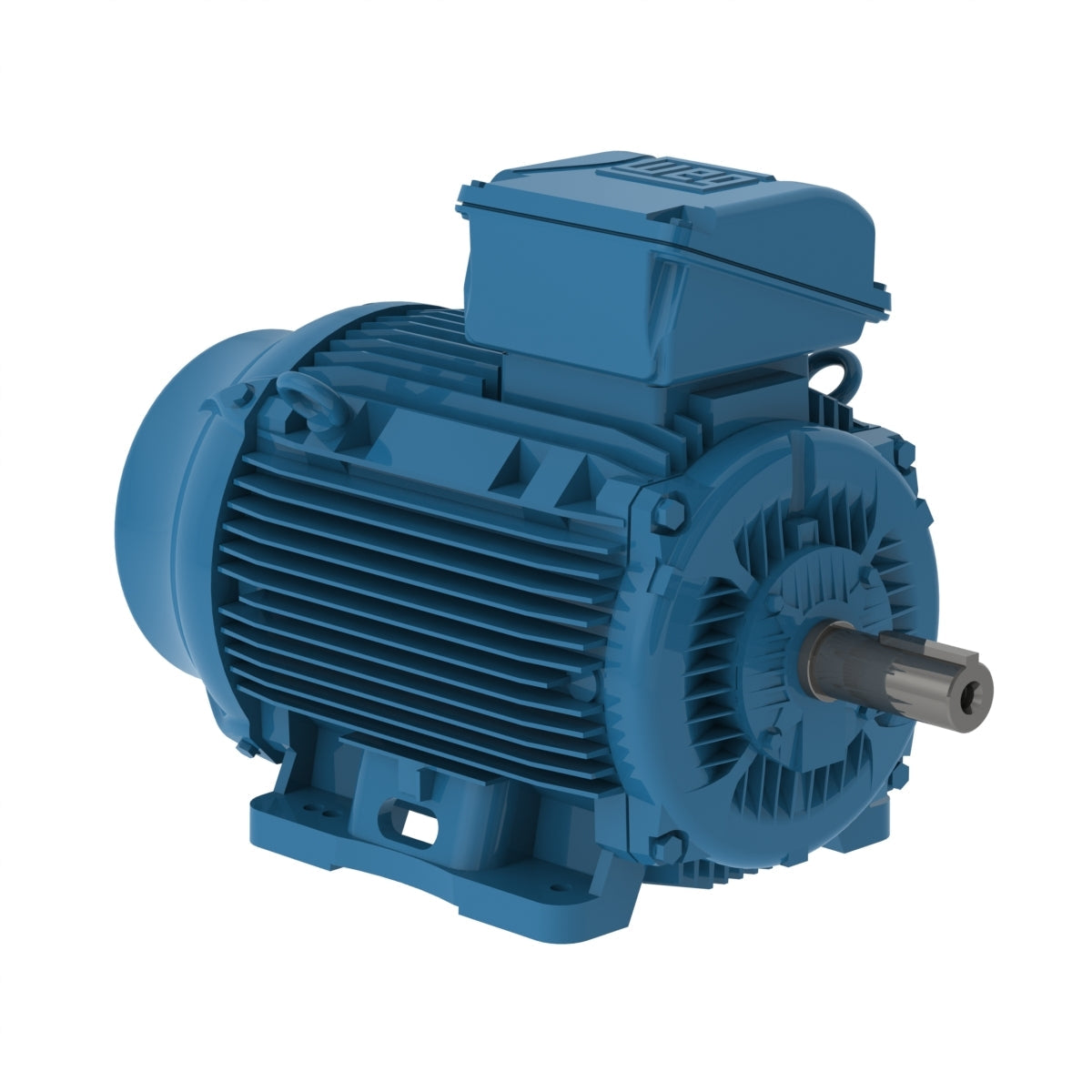

This model has terminal box on top (F3).

Specifications

• Model: 10018ET3E405TF3-W22
• Phase: Three-Phase
• Power: 100 HP
• Base RPM: 1800
• Frame: 405T
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 230/460V (usable at 208V)
• Construction: Cast Iron
• Weight: 1297.04 lb
