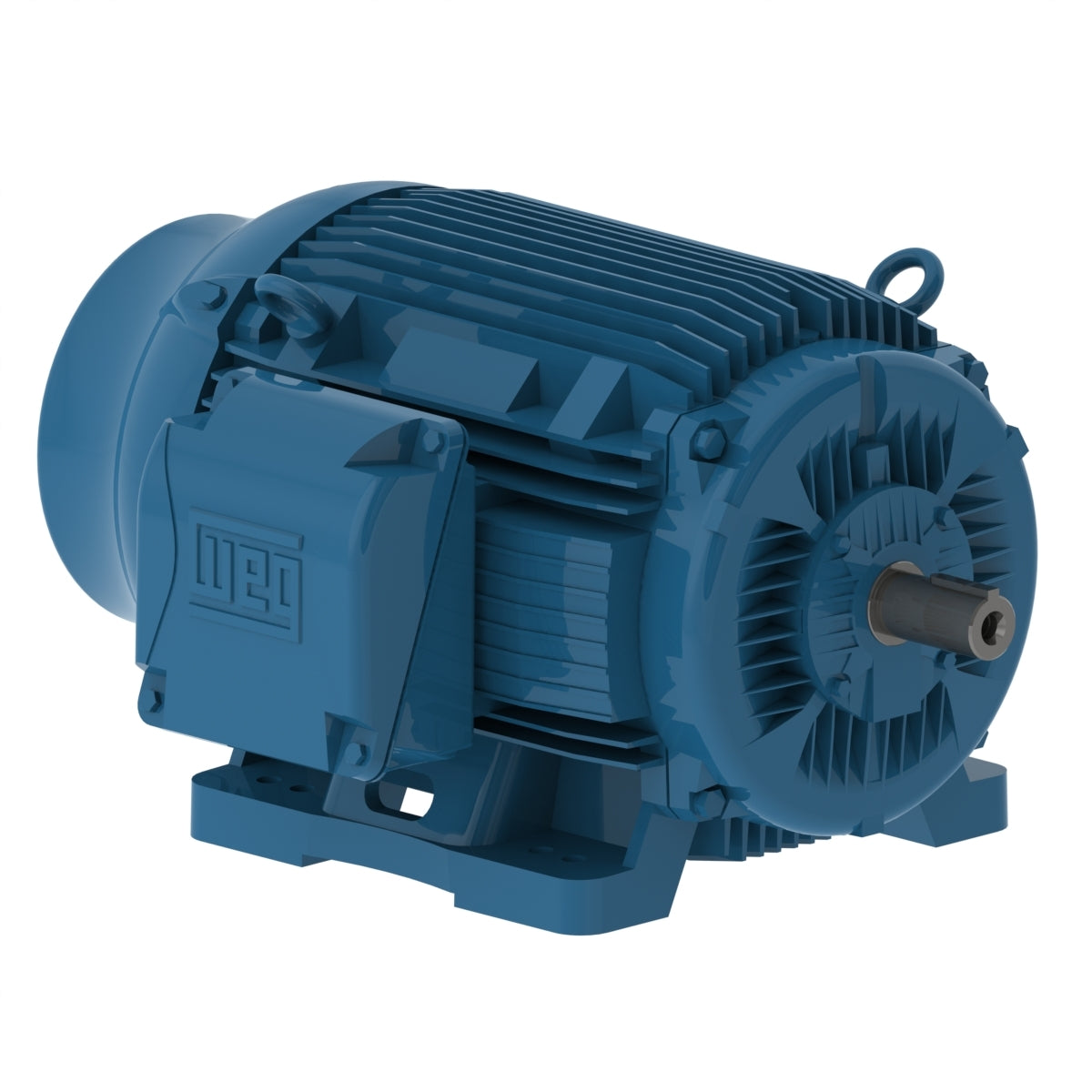

Weg 05012ET3E365T-W22 50 HP 1200 RPM 365T TEFC Three-Phase Motor
Weg 05012ET3E365T-W22 50 HP 1200 RPM 365T TEFC Three-Phase Motor
Regular price
$6,388.50
Regular price
$8,518.00
Sale price
$6,388.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.
Share
Specifications, Features and Documentation
-
Specs
Model: 05012ET3E365T-W22
Phase: Three-Phase
Power: 50 HP
RPM: 1200
Frame: 365T
Enclosure: TEFC
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 1004.02 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose
-

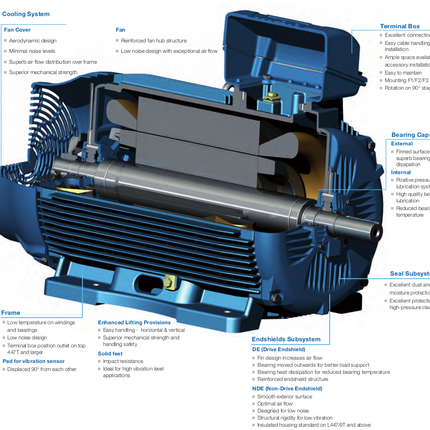

Features
- 50/60 Hz Rated Operation
- Gasketed Conduit Box
- 1.25 SF up to 100 HP
- Hi-Grade FC200 Cast Iron
- All Cast Iron Construction, including Terminal Box
- IP55 Ingress Rated Protection
- Exclusive WEG paint exceed 200Hrs Corrosion Test (exceeds IEEE841)
- Balanced to 0.08 IPS meeting IEEE841 Standards
- Stainless Steel Nameplate laser etched
- Corrosion Proof Drains
- Certified Class I Div 2, Groups A,B,C, & D; Class I Div 2 Groups F & G
- Suitable for IEEE45 and USCG259 - Marine Duty
- Warranty: 36 Months from Invoice Date
-
More Documentation
