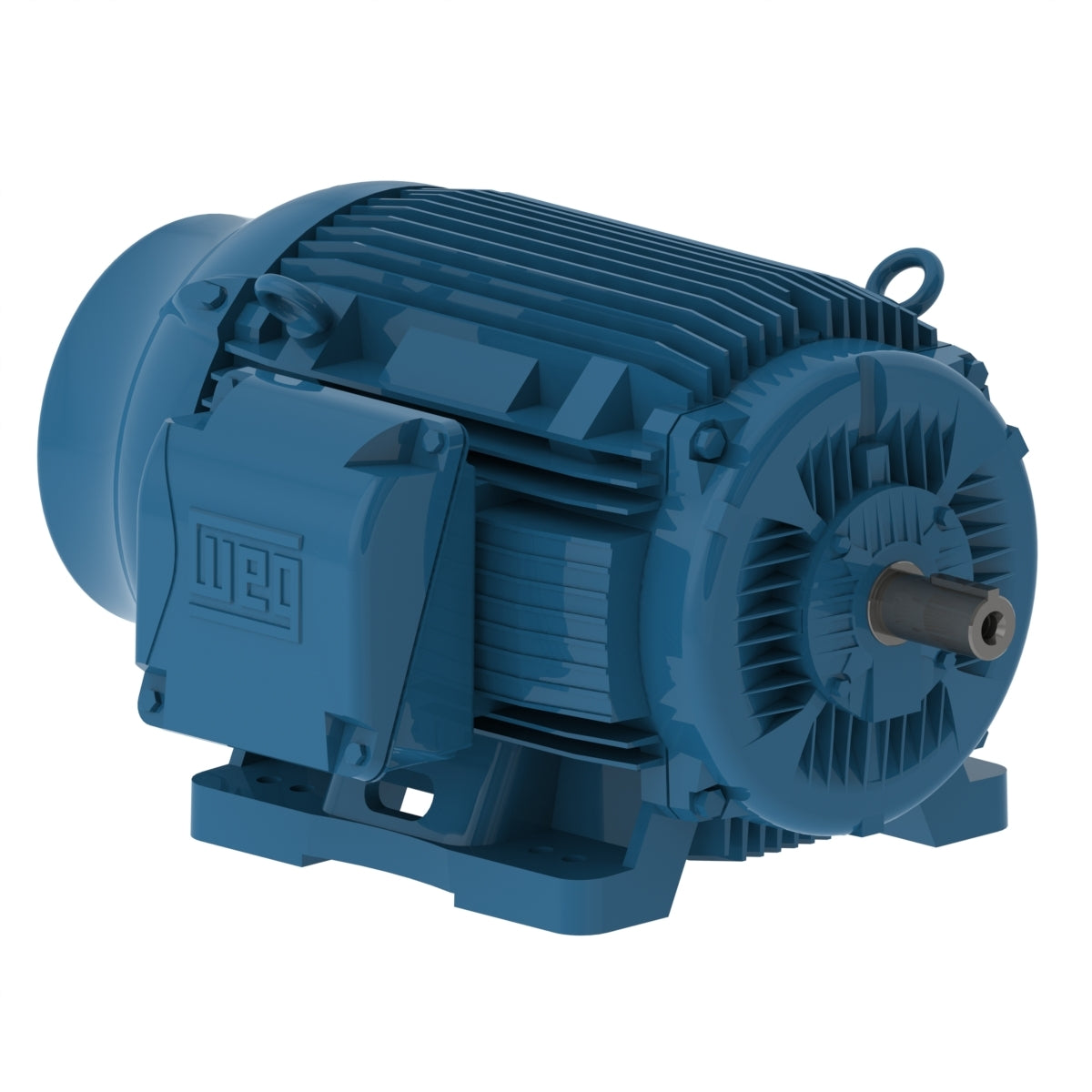

Weg 04018ET3E324TSC-W22 40 HP 1800 RPM 324T TEFC Three-Phase Motor

VendorWEG
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress... Read more

SKU: Weg-04018ET3E324TSC-W22
Barcode: 7909322107301

$4,300.00 $4,139.47

Description

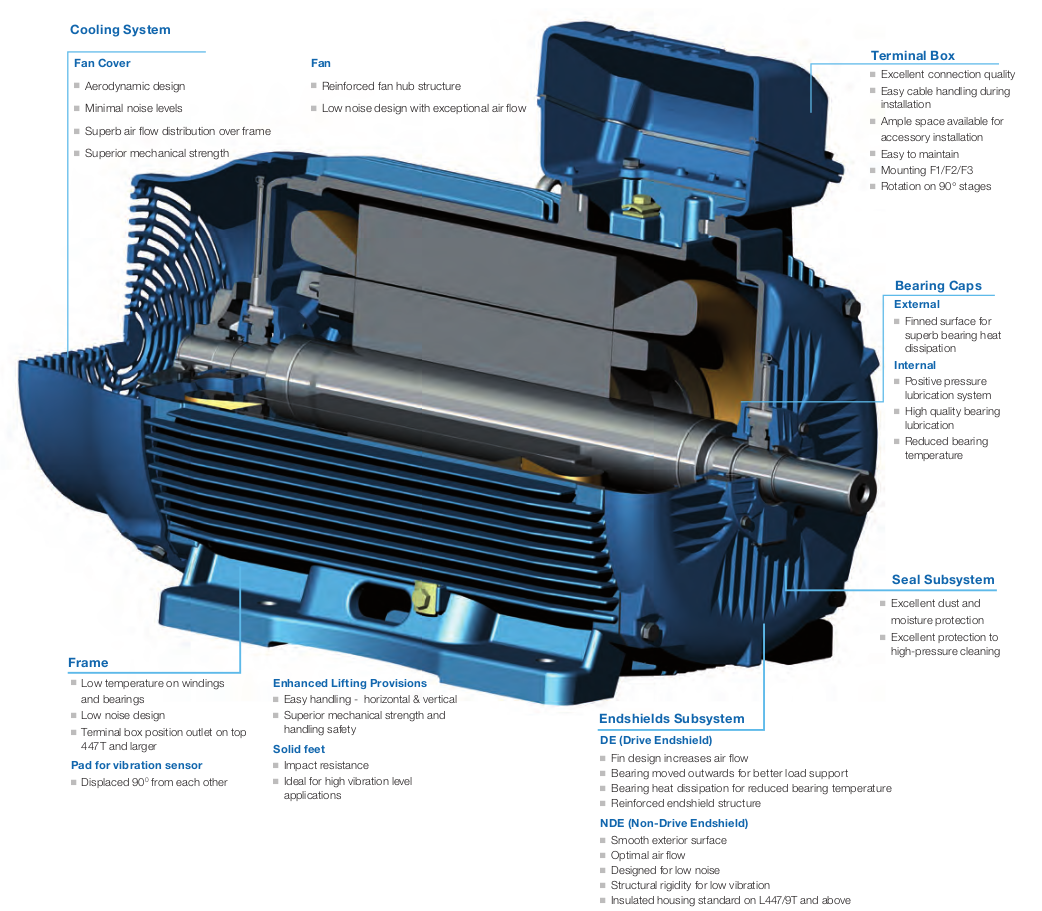

Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.

Specifications

Model: 04018ET3E324TSC-W22
Phase: Three-Phase
Power: 40 HP
Base RPM: 1800
Frame: 324T
Enclosure: TEFC
Enclosure Rating: IP55
Voltage: 230/460V (usable at 208V)
Construction: Cast Iron
Weight: 611.2 lb
