WEG

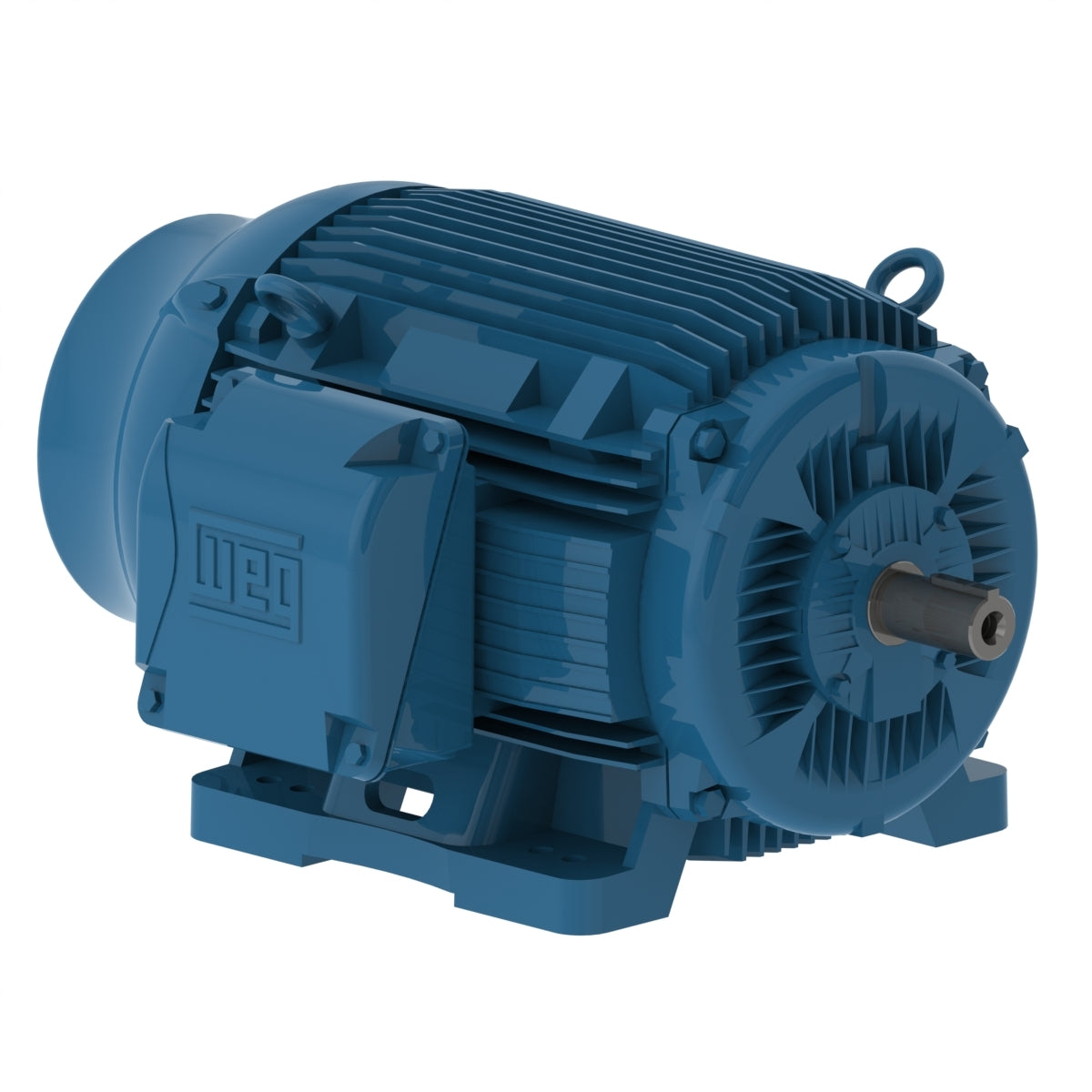

Weg 04012ET3H364T-W22G 40 HP 1200 RPM 364T TEFC Three-Phase Motor
Weg 04012ET3H364T-W22G 40 HP 1200 RPM 364T TEFC Three-Phase Motor
Regular price
$6,093.00
Regular price
$8,124.00
Sale price
$6,093.00
Unit price
/
per
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.
This model (-W22G) has Aegis Ring bearing protection installed.
Share
Specifications, Features and Documentation
-
Specs
Model: 04012ET3H364T-W22G
Phase: Three-Phase
Power: 40 HP
RPM: 1200
Frame: 364T
Enclosure: TEFC
Voltage: 575V
Bearings: Ball Bearing
Weight: 1000.27 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- General Purpose
-
Features
- 50/60 Hz Rated Operation
- Gasketed Conduit Box
- 1.25 SF up to 100 HP
- Hi-Grade FC200 Cast Iron
- All Cast Iron Construction, including Terminal Box
- IP55 Ingress Rated Protection
- Exclusive WEG paint exceed 200Hrs Corrosion Test (exceeds IEEE841)
- Balanced to 0.08 IPS meeting IEEE841 Standards
- Stainless Steel Nameplate laser etched
- Corrosion Proof Drains
- Certified Class I Div 2, Groups A,B,C, & D; Class I Div 2 Groups F & G
- Suitable for IEEE45 and USCG259 - Marine Duty
- Warranty: 36 Months from Invoice Date
-
