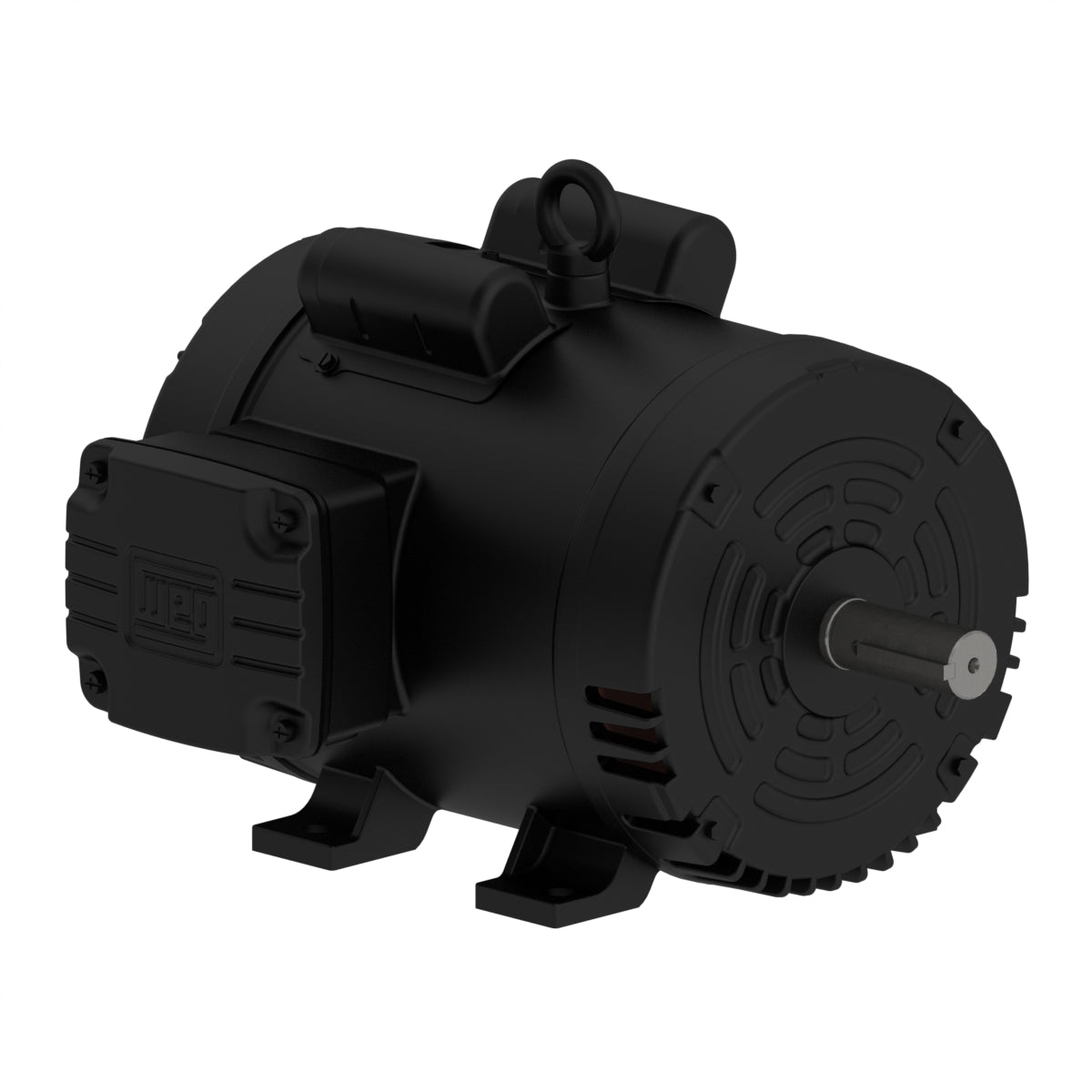

Weg 00518OS1CCD184T 5 HP 1800 RPM 184T ODP Single-Phase Compressor Duty Motor
Weg 00518OS1CCD184T 5 HP 1800 RPM 184T ODP Single-Phase Compressor Duty Motor
Regular price
$693.53
Regular price
$682.00
Sale price
$693.53
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG compressor duty motors are designed to meet the high torque requirements of air compressor loads.
This model is designed for high-torque compressor applications.
Share
Specifications, Features and Documentation
-
Specs
Model: 00518OS1CCD184T
Phase: Single-Phase
Power: 5 HP
RPM: 1800
Frame: 184T
Enclosure: ODP
Voltage: 208-230V
FL Amps:
Bearings: Ball Bearing
Weight: 100.54 lb
Efficiency: Standard Efficiency
Construction: Cast Iron
Application:
- Compressor
-
Features
- High Starting Torque
- Ball Bearings
- Class 'B' Insulation
- Base Seam-welded to Frame
- Manual Reset Overload (on single-phase motors)
-
