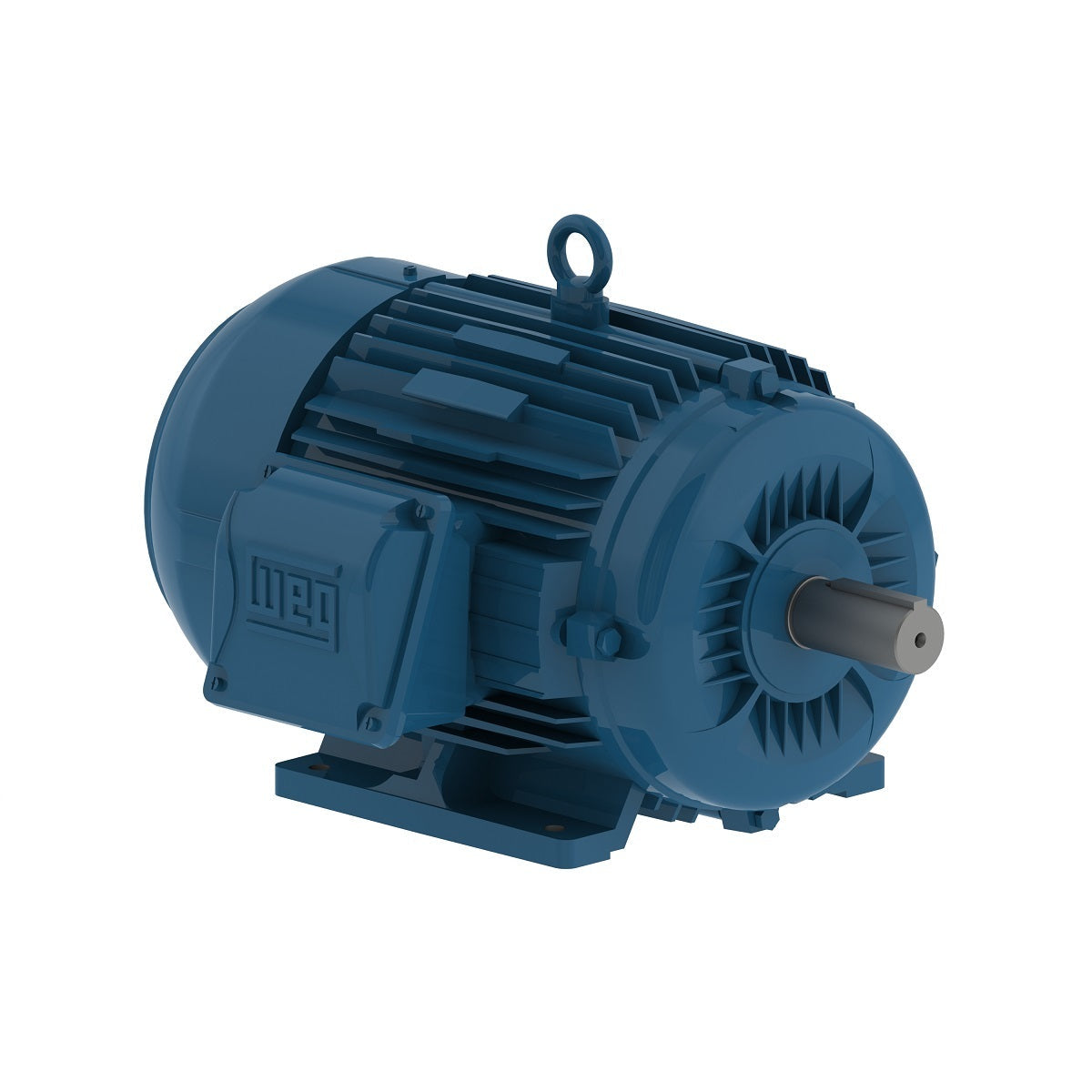

Weg 00118ET3H143T-W22G 1 HP 1800 RPM 143T TEFC Three-Phase Motor
- VendorWEG
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress... Read more
SKU: Weg-00118ET3H143T-W22G
$678.27
Description
Weg W22 motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 20:1 at constant torque. Available in both NEMA Premium Efficiency and NEMA Super Premium Efficiency levels.
This model (-W22G) has Aegis Ring bearing protection installed.
Specifications
- Model: 00118ET3H143T-W22G
- Phase: Three-Phase
- Power: 1 HP
- Base RPM: 1800
- Frame: 143T
- Enclosure: TEFC
- Enclosure Rating: IP55
- Voltage: 575V
- Construction: Cast Iron
- Weight:
