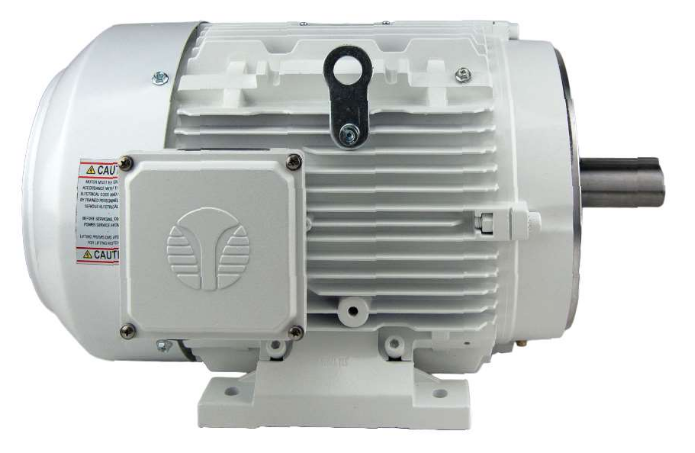

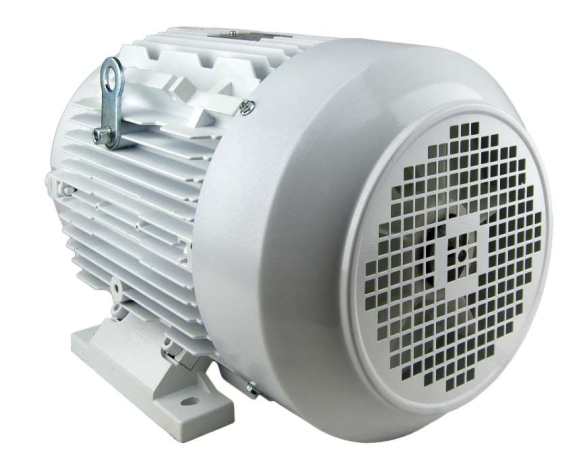

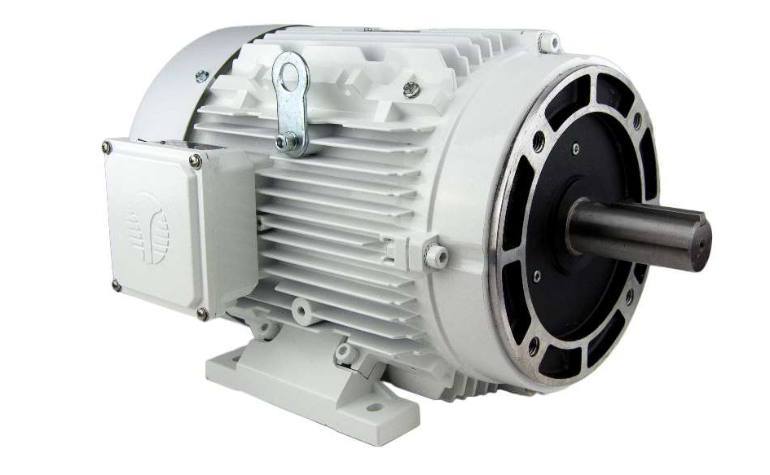

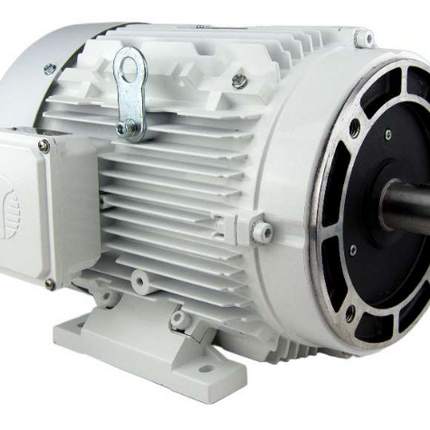

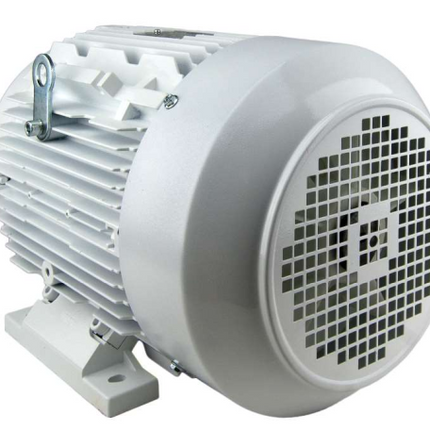

Techtop WX3-AL-TF-145TC-2-B-D-2 TEFC 2 HP 3600 145TC Washdown Duty Motor
Techtop WX3-AL-TF-145TC-2-B-D-2 TEFC 2 HP 3600 145TC Washdown Duty Motor
Regular price
$572.25
Regular price
Sale price
$572.25
Unit price
/
per
Techtop Washdown Duty rated motors are designed for harsh wet environments where equipment may be washed down frequently, such as food processing, or car washes. These 3-phase motors feature IP 56 rated ingress protection, double-lip oil seals, and one-way brass condensation drains.
Share
Specifications, Features and Documentation
-
Specs
Model: WX3-AL-TF-145TC-2-B-D-2
Phase: Three-Phase
Power: 2 HP
RPM: 3600
Frame: 145TC
Enclosure: TEFC
Voltage: 208-230/460 VAC
Bearings:
Weight: 30 lb
Efficiency:
Construction:
Application:
- Washdown
-
Features
- IP 56 Rated Ingres Protection
- NEMA Premium Efficiency
- 1.15 Service Factor (SF)
- 9 Lead Dual Voltage
- Double Lip Oil Seals on Both Ends
- Inverter Rated 15:1 Constant Torque for VFDs
- Multi-Mount Removable Feet
- T-Box Position Movable F1,F2,F3
- Class F Insulation with Class H Stator
- One-Way Brass Condensation Drains
- Drive End Bearing Locks
- EISA Compliant
- Fully Potted Conduit Entry
- 24 Month Warranty
