Description

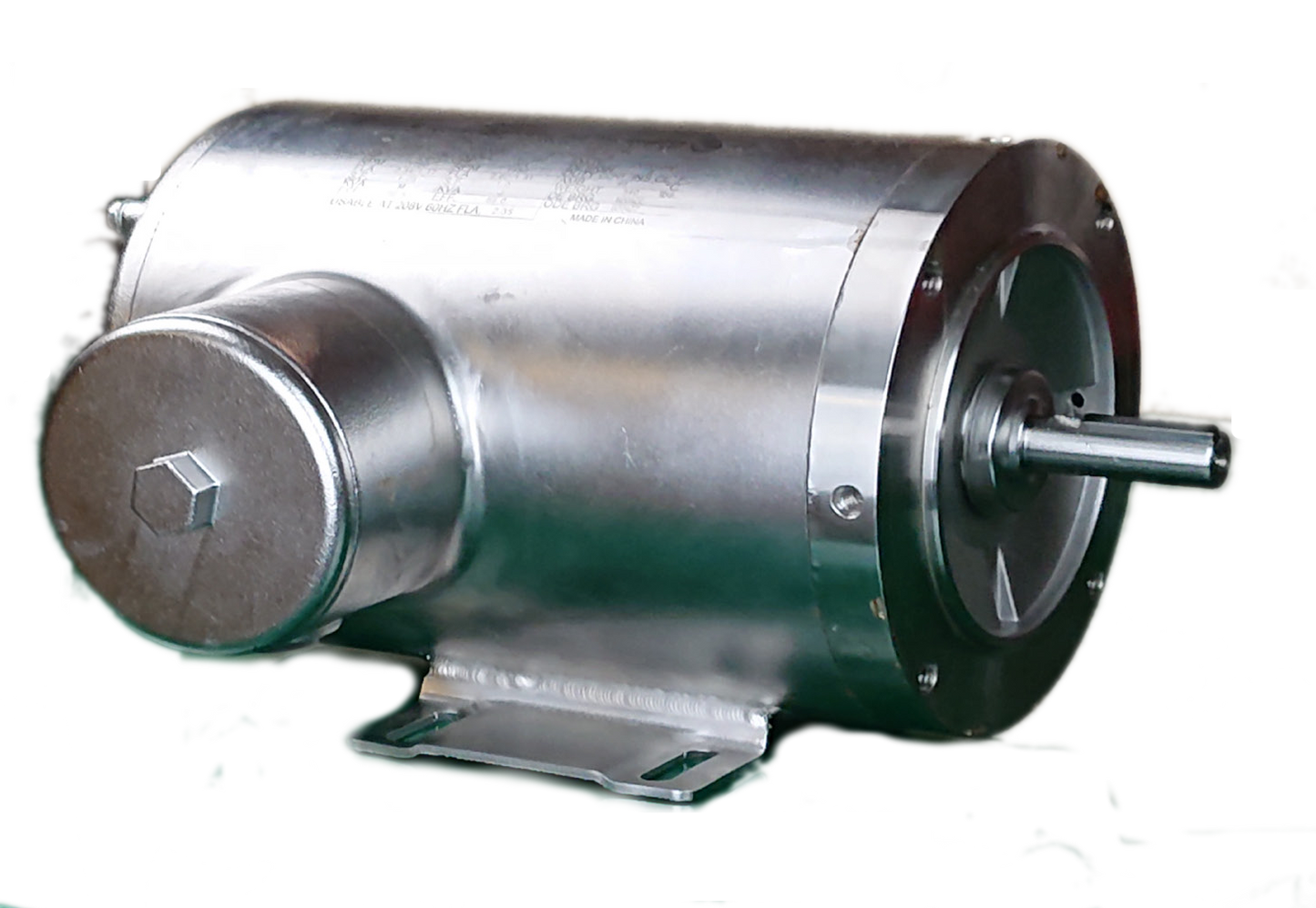

Techtop Stainless Steel Motors are specifically designed for the food industry, and are food grade / BISCC certified. They are washdown duty with IP 69K rated ingress protection. Available with or without mounting feet (RND extension on P/N). Totally Enclosed Non-Ventalated (TENV) models up to 1 HP, and Totally Enclosed Fan Cooled (TEFC) from 0.5 to 3 HP.

Spec Sheets

200/400V-60Hz

230/460V-60Hz

190/380V-50Hz

3D Models

SS-56HC-SS-TN.step

Techtop Stainless Steel Motor Line Card

Specifications

• Model: SS3-TN-56HC-4-D-1
• Phase: Three-Phase
• Power: 1 HP
• Base RPM: 1800
• Frame: 56HC
• Enclosure: TENV
• Enclosure Rating: IP69K
• Voltage: 208-230/460V
• Construction: Stainless Steel
• Weight: 40 lb
