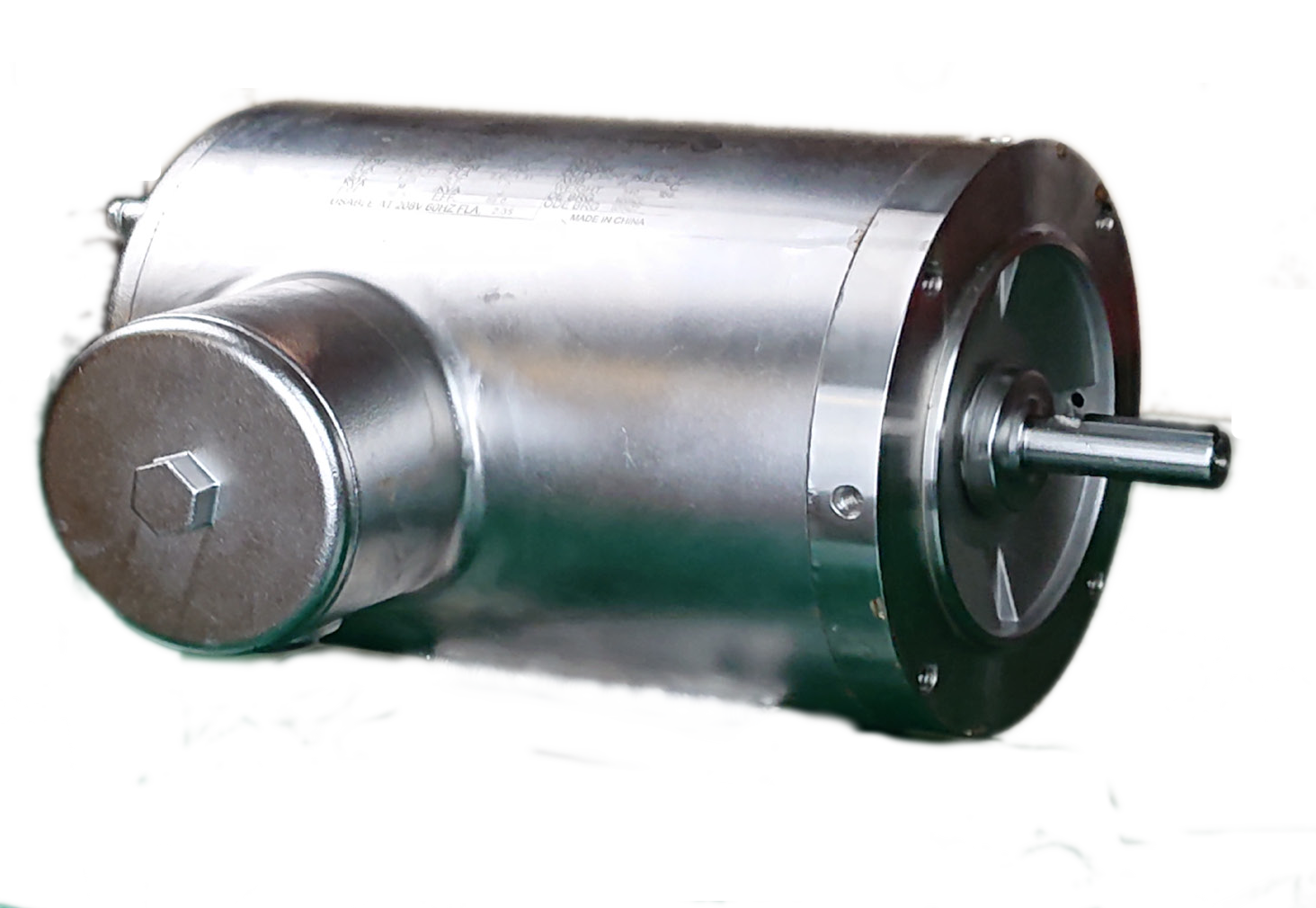

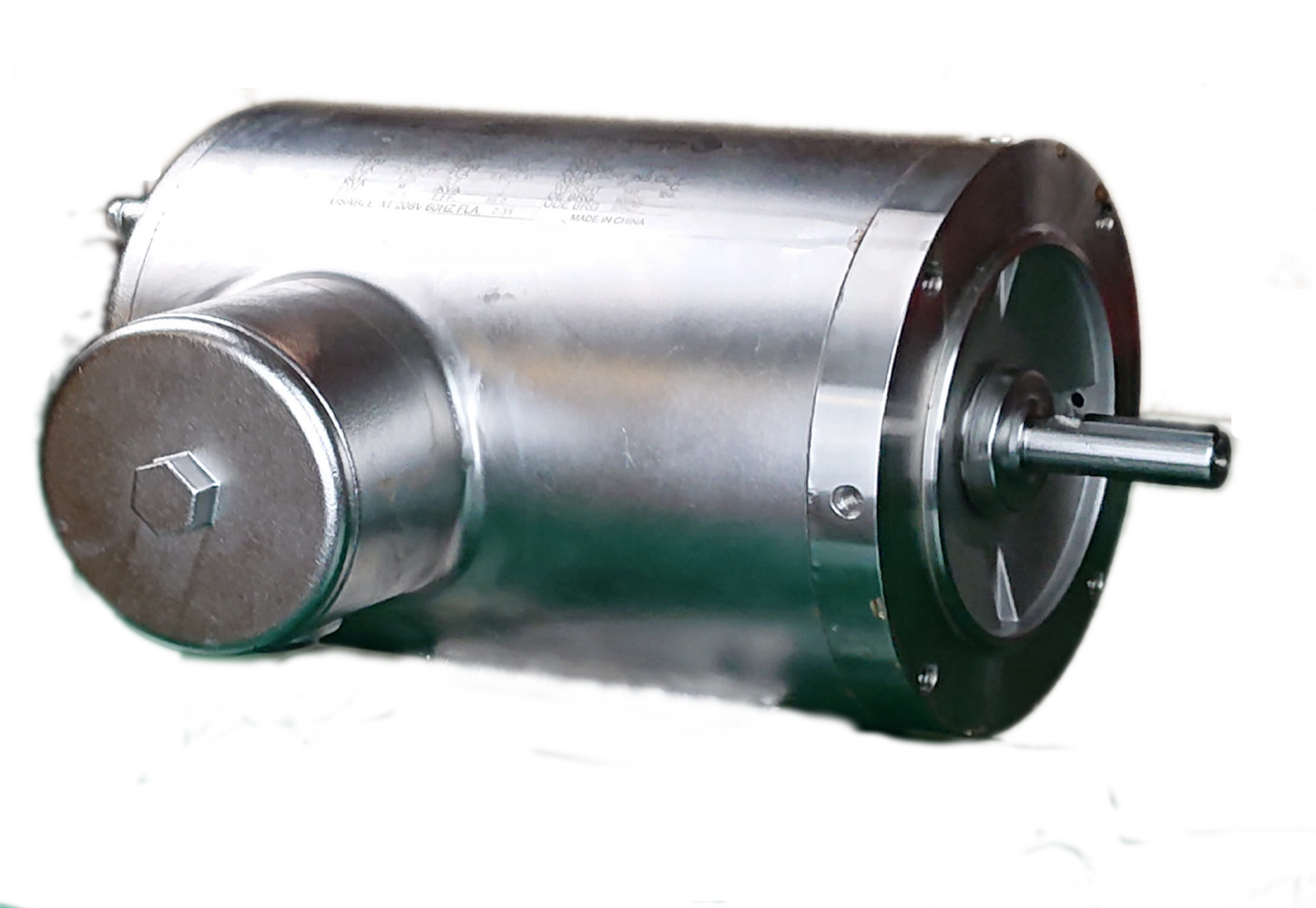

Techtop SS3-TN-56C-4-D-0.75-RND TENV 0.75 HP 1800 56C Stainless Steel Motor
Techtop SS3-TN-56C-4-D-0.75-RND TENV 0.75 HP 1800 56C Stainless Steel Motor
Couldn't load pickup availability
Techtop Stainless Steel Motors are specifically designed for the food industry, and are food grade / BISCC certified. They are washdown duty with IP 69K rated ingress protection. Available with or without mounting feet (RND extension on P/N). Totally Enclosed Non-Ventalated (TENV) models up to 1 HP, and Totally Enclosed Fan Cooled (TEFC) from 0.5 to 3 HP.
Spec Sheets
3D Models
Techtop Stainless Steel Motor Line Card
NOTE: This model does not have a mounting base. It is intended to be mounted from the shaft face only.
Share
Specifications, Features and Documentation
-
Specs
Model: SS3-TN-56C-4-D-0.75-RND
Phase: Three-Phase
Power: 0.75 HP
RPM: 1800
Frame: 56C
Enclosure: TENV
Voltage: 208-230/460V
FL Amps:
Bearings: Shielded Ball Bearing
Weight: 35 lb
Efficiency: NEMA Premium Efficiency
Construction: Stainless Steel
Application:
- Food Processing, Stainless Steel
-
Features
- IP 69K Ingres Protection
- NEMA Premium Efficiency
- 1.15 Service Factor (SF)
- Inverter Rated 20:1 VT, 4:1 CT
- Fully Encapsulated Windings
- Semipermeable Pressure Vent
- Food Grade / BISCC Certified
- 24 Month Warranty
