TECHTOP

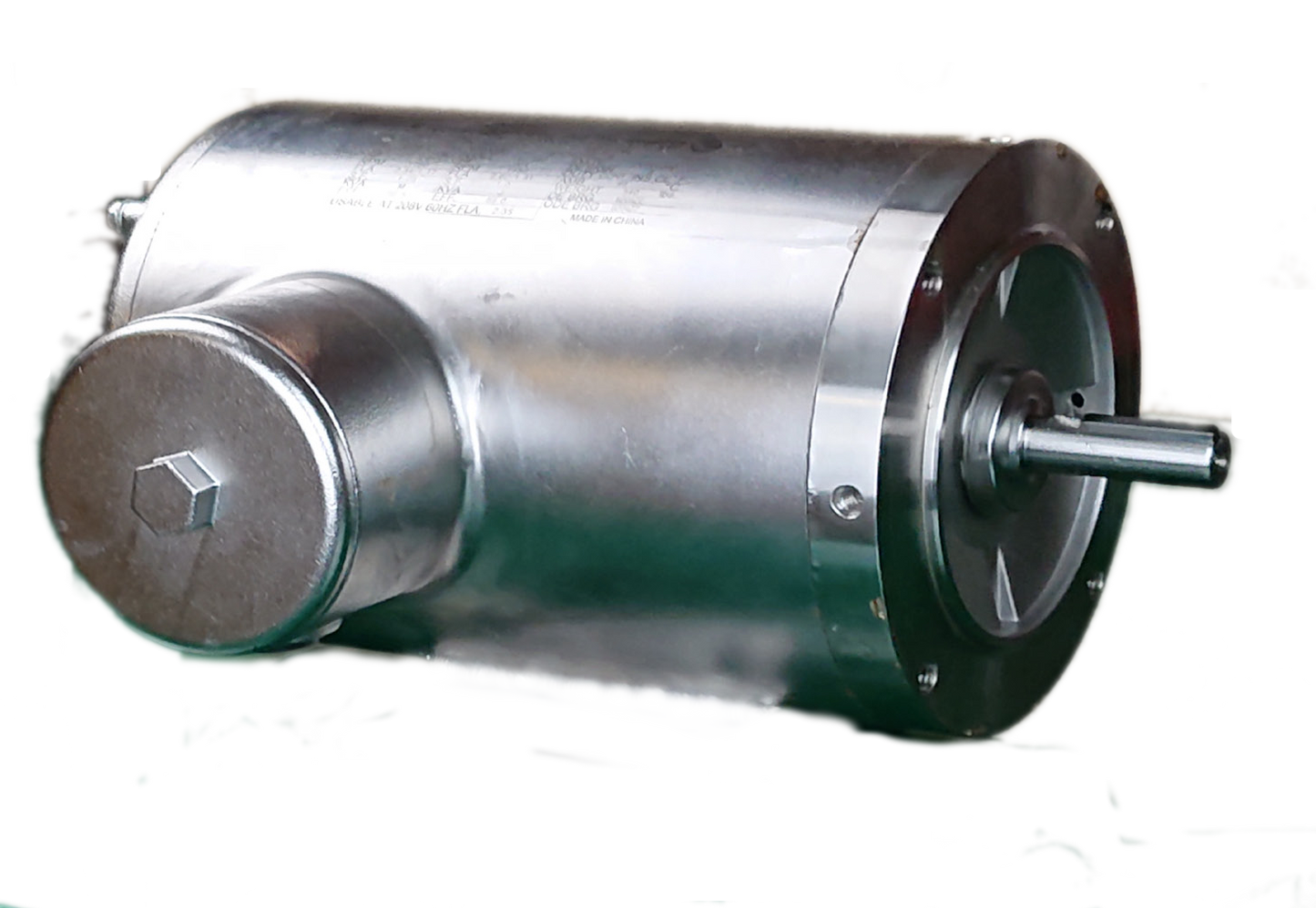

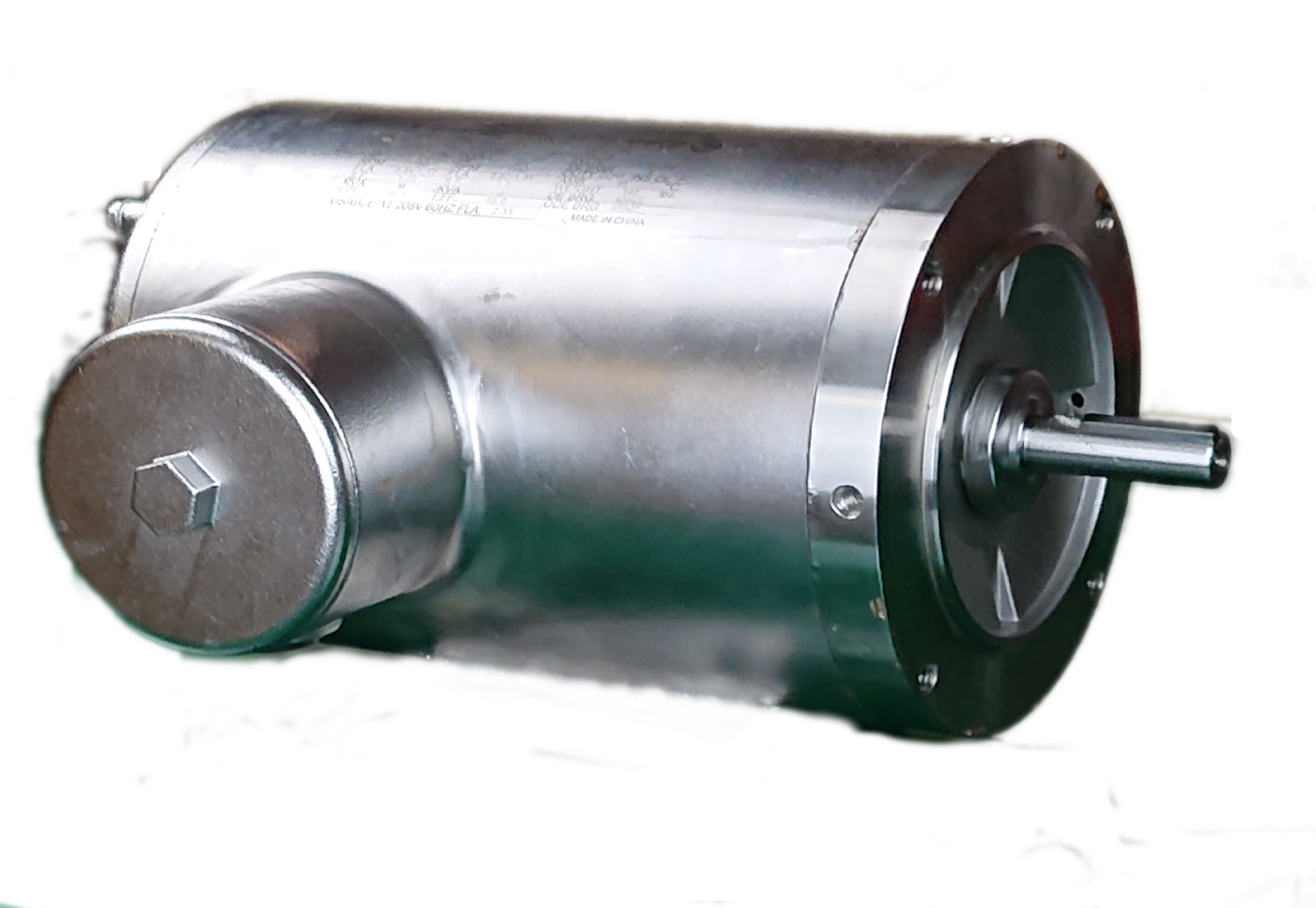

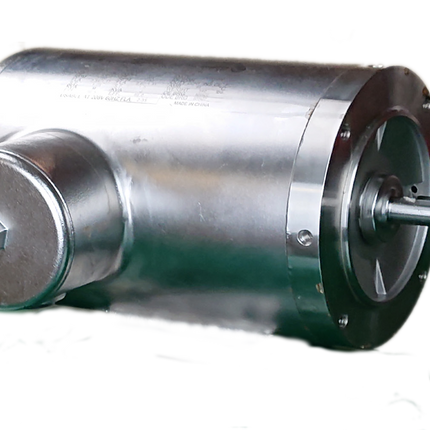

Techtop SS3-TN-56C-2-D-0.75-RND TENV 0.75 HP 3600 56C Stainless Steel Motor
Techtop SS3-TN-56C-2-D-0.75-RND TENV 0.75 HP 3600 56C Stainless Steel Motor
Regular price
$669.75
Regular price
Sale price
$669.75
Unit price
/
per
Techtop Stainless Steel Motors are specifically designed for the food industry, and are food grade / BISCC certified. They are washdown duty with IP 69K rated ingress protection. Available with or without mounting feet (RND extension on P/N). Totally Enclosed Non-Ventalated (TENV) models up to 1 HP, and Totally Enclosed Fan Cooled (TEFC) from 0.5 to 3 HP.
Techtop Stainless Steel Motor Line Card
NOTE: This model does not have a mounting base. It is intended to be mounted from the shaft face only.
Share
Specifications, Features and Documentation
-
Specs
Model: SS3-TN-56C-2-D-0.75-RND
Phase: Three-Phase
Power: 0.75 HP
RPM: 3600
Frame: 56C
Enclosure: TENV
Voltage: 208-30/460 VAC
Bearings:
Weight: 35 lb
Efficiency:
Construction:
Application:
- Food Processing, Stainless Steel
-
Features
- IP 69K Ingres Protection
- NEMA Premium Efficiency
- 1.15 Service Factor (SF)
- Inverter Rated 20:1 VT, 4:1 CT
- Fully Encapsulated Windings
- Semipermeable Pressure Vent
- Food Grade / BISCC Certified
- 24 Month Warranty
