Description

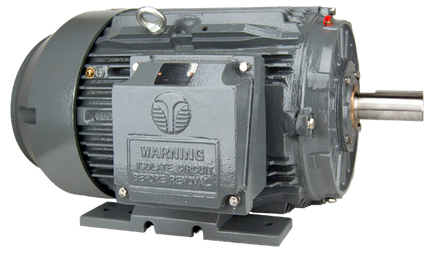

Techtop IEEE 841 motors are engineered to meet the demanding requirements of both IEEE 841 specifications, as well as IEEE 45 Marine Duty specs. Highlights include IP 56 Ingress Protection, Stainless Steel Hardware, Drive End Shaft Grounding Brush, and a 60 Month / 5 Year Warranty. See table below for more features.

Spec Sheets

460V-60Hz

3D Models

SD-405TS-CI-TF.step

Techtop IEEE Motor Line Card

Specifications

• Model: SD3-405TS-2-BR-E-100
• Phase: Three-Phase
• Power: 100 HP
• Base RPM: 3600
• Frame: 405TS
• Enclosure: TEFC
• Enclosure Rating: IP56
• Voltage: 460V
• Construction: Cast Iron
• Weight: 1025 lb
• Read more less
