Description

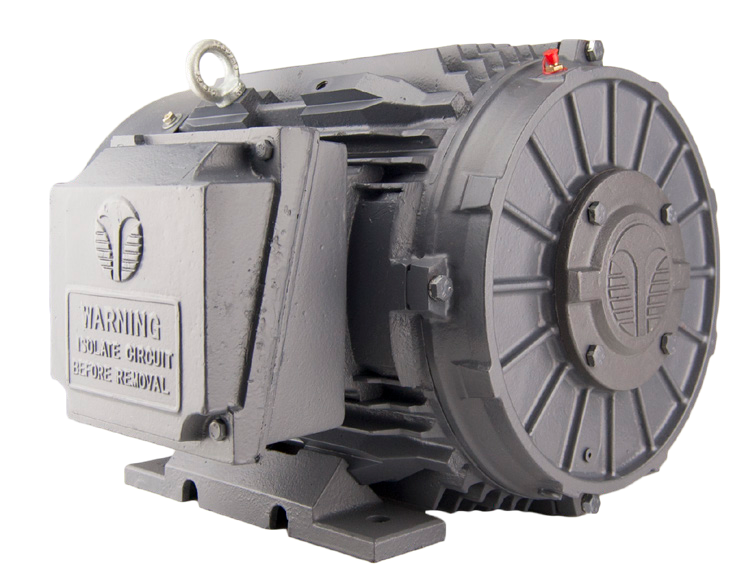

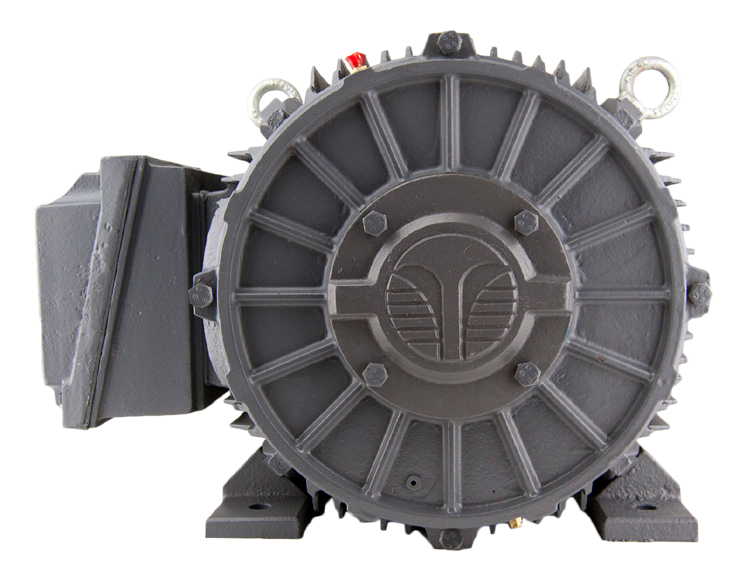

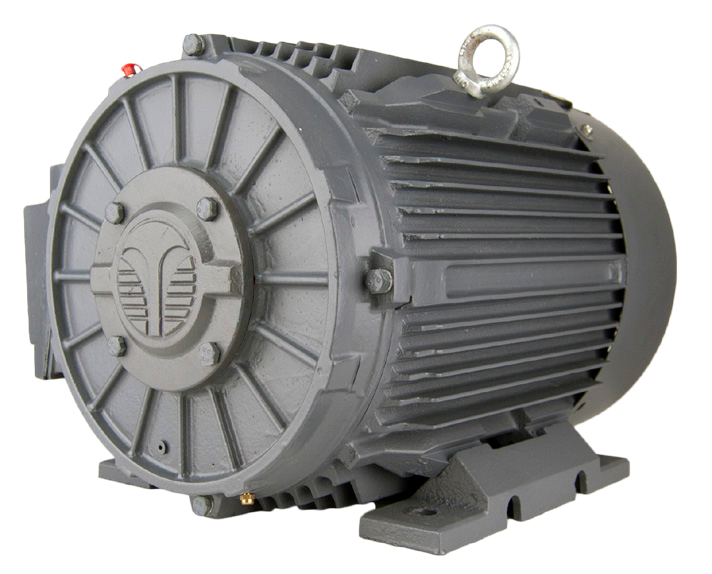

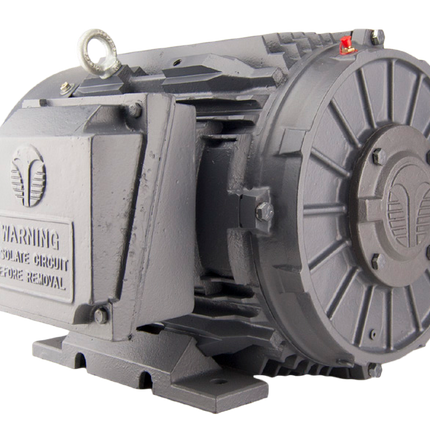

Techtop Phase Converter Idler motors are designed specifically for rotary phase conveters. The shaftless design minimizes space requirements and increases safety. Available in both a simple 3-wire 230VAC and a 12-Lead dual voltage 230/460V motor. Cast Iron sealed construction rate for IP 55 ingress protection.

Spec Sheets

200/400V-60Hz

230/460V-60Hz

190/380V-50Hz

3D Models

PC-286T-CI-TF.step

Techtop Idler Motor Line Card

Specifications

• Model: PC3-CI-TF-286T-4-BR-D-30
• Phase: Three-Phase
• Power: 30 HP
• Base RPM: 1800
• Frame: 286T
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 208-230/460V
• Construction: Cast Iron
• Weight: 397 lb
• Read more less
