Description

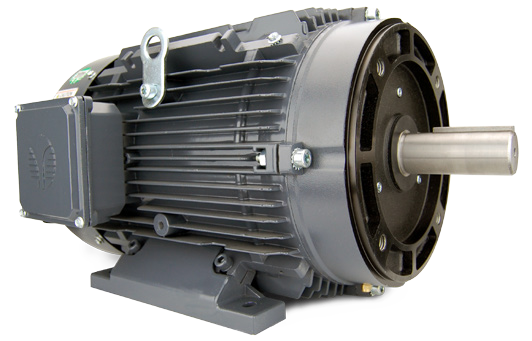

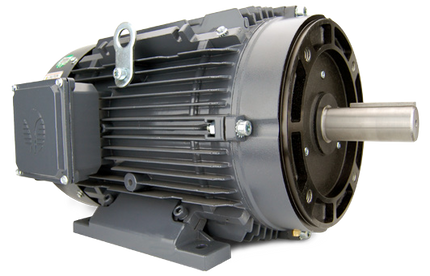

The Techtop GX3 line of aluminum frame motors are very popular due to their light weight, excellent construction and included internal shaft grounding brush. The shaft grounding brush makes this motor an excellent choice for use with a VFD drive, as the grounding brush will help protect the bearings from early failure due to electrical-discharge machining (EDM) wear. Removable feet and movable terminal box allows mounting in a variety of positions. 36-month warranty from purchase date.

Spec Sheets

200/400V-60Hz

230/460V-60Hz

190/380V-50Hz

3D Models

GX-213TC-AL-TF.step

Specifications

• Model: GX3-AL-TF-213TC-2-B-D-7.5
• Phase: Three-Phase
• Power: 7.5 HP
• Base RPM: 3600
• Frame: 213TC
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 208-230/460V
• Construction: Aluminum
• Weight: 95 lb
