Description

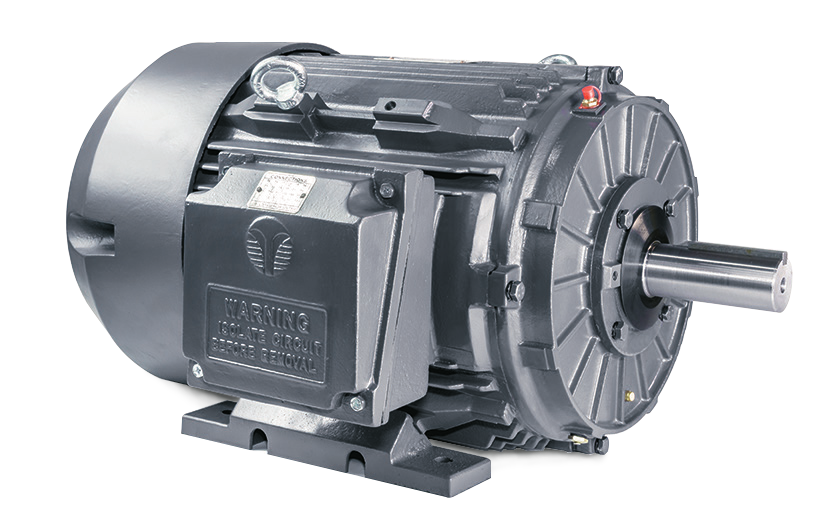

Techtop Cast Iron motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and inverter-duty rated for use with variable frequency drives (VFDs). The terminal box can be moved from left (F1), to right (F2), or top (F3/F0), by moving the removable feet to the top, left or right sides (up to frame size 360). A service factor of 1.25 along with IP55 rating, epoxy coating and built-in one-way purge valves makes these motors an excellent value. Includes 3-year / 36-month warranty.

Spec Sheets

460V-60Hz

3D Models

GR-449T-CI-TF.step

Specifications

• Model: GR3-CI-TF-449T-6-RR-E-200
• Phase: Three-Phase
• Power: 200 HP
• Base RPM: 1200
• Frame: 449T
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 460V
• Construction: Cast Iron
• Weight: 2245 lb
