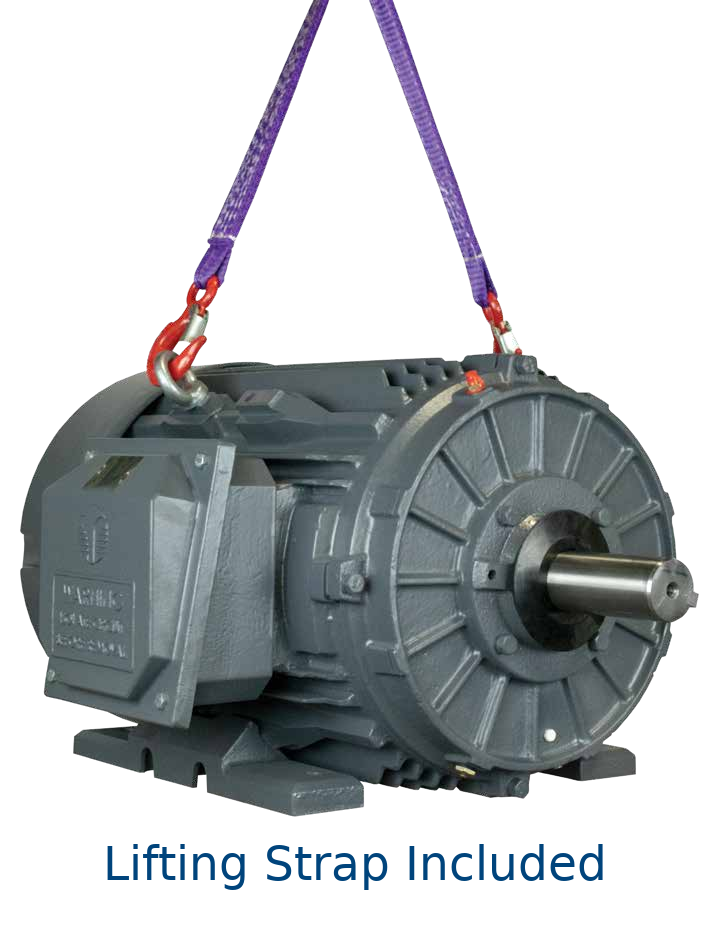

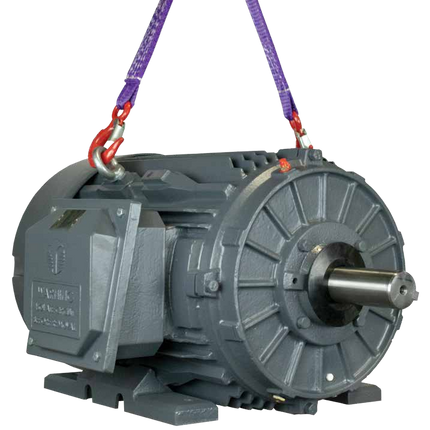

Techtop GR3-CI-TF-286JM-4-BR-D-30 TEFC 30 HP 1800 RPM 286JM 208-230/460V Three-Phase Motor
Techtop GR3-CI-TF-286JM-4-BR-D-30 TEFC 30 HP 1800 RPM 286JM 208-230/460V Three-Phase Motor
Couldn't load pickup availability

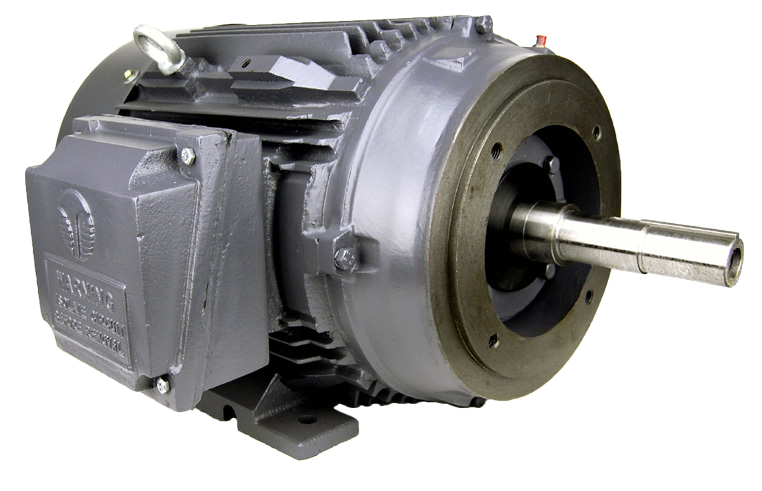

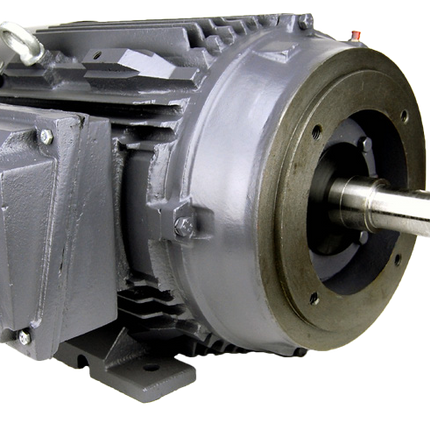

Techtop JP / JM motor are perfect for pump applications, with standard frame sizes to match close-coupled pumps. Available in light-weight aluminum frames up to 15 HP, and cast iron from 15 HP and up. Techtop motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and inverter-duty rated for use with variable frequency drives (VFDs). Can be field-configurable for the terminal box on the left (F1 - standard, looking at shaft-end), or F2 (right) or F3 (top). A service factor of 1.15 along with IP 55 rating and 300 series stainless steel shaft makes these motors an excellent value. Comes with a 3-year / 36-month warranty.
Spec Sheets
3D Models
Share
Specifications, Features and Documentation
-
Specs
Model: GR3-CI-TF-286JM-4-BR-D-30
Phase: Three-Phase
Power: 30 HP
RPM: 1800
Frame: 286JM
Enclosure: TEFC
Voltage: 208-230/460V
FL Amps:
Bearings: Regreasable Ball Bearing
Weight: 397 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- NEMA Premium Efficiency
- IP 55 Ingress Protection
- VFD Use - MG1 Part 31, 20:1 Variable Torque
- 1.15 Service Factor
- 40°C Ambient Rated
- Double Lip Oil Seals
- 300 Series Stainless Steel Shaft
- Multi-mount Removable Feet
- Stainless Steel Nameplate
- One-Way Brass Condensation Drains
- Regreasable Bearings 254 Frame & Larger
- F1,F2,F3 Terminal Box Location Configurable
- Class H Insulated Stator with Class F Leads
- Class 1, Div 2, Groups A,B,C, and D Compliant
- 36 Month Warranty
