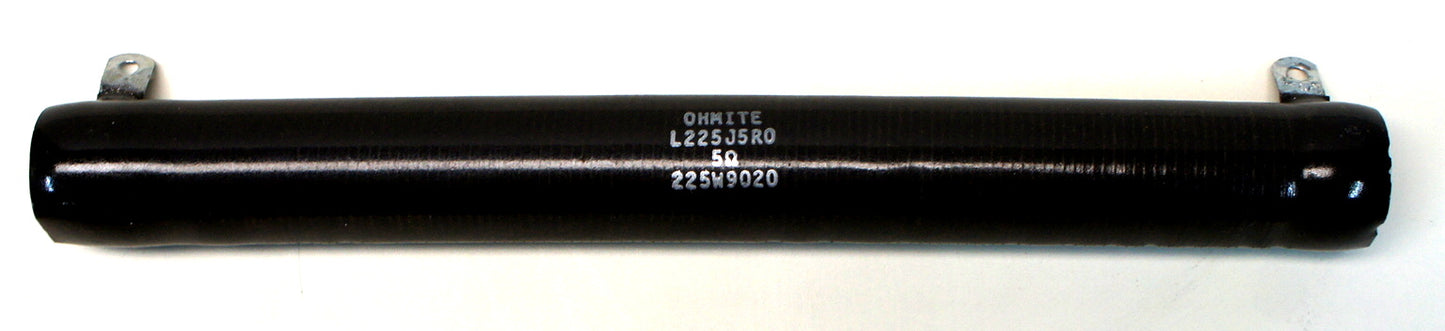

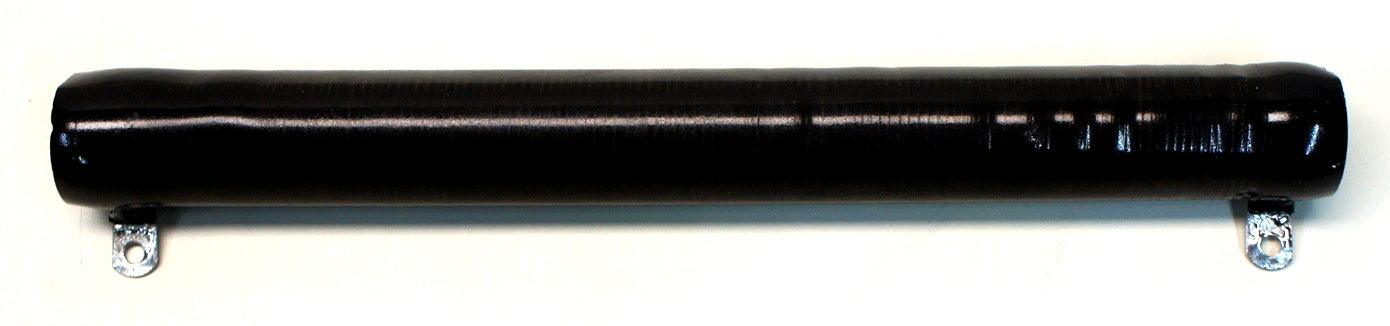

Ohmite L225J5R0 Lug Resistor 5 Ohm 225 Watt

Ohmite L225J5R0 Radial Lug Wire Wound Resistor 5 Ohm 225 Watt

Specifications :

• Brand : Ohmite
• Model : L225J5R0
• Type : Radial Lug Wire Wound Resistor
• Mounting : Bolt-on
• Resistance : 5 Ohms
• Wattage : 225 Watts
• Material : Vitreous Enamel body
• Tolerance : +/- 5%
• Temperature Coefficient : +/- 400 ppm/ degrees Celsius

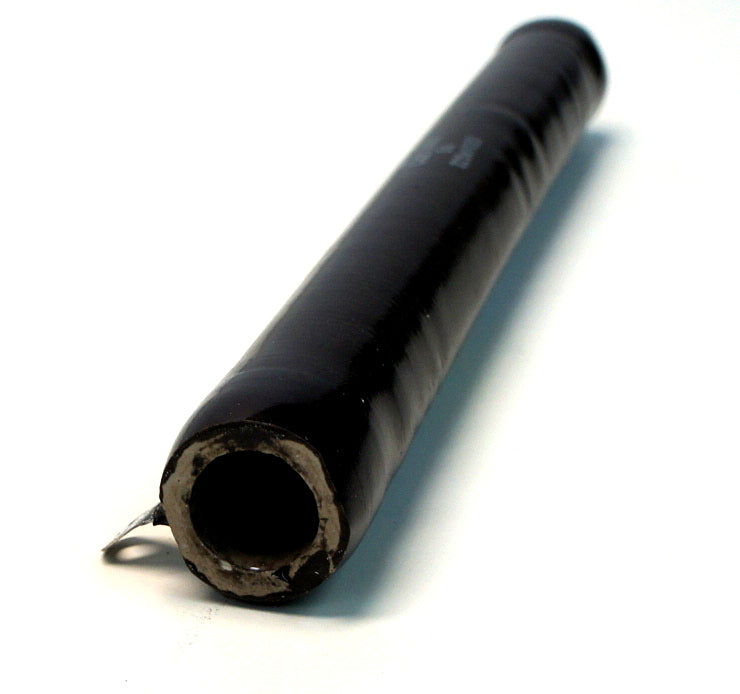

• Hollow body for better heat dissipation
• 10 1/2 inch length
• 1 inch diameter
• 9 1/2 inch between terminals

Guaranteed for a full 30 days
