ABB Baldor

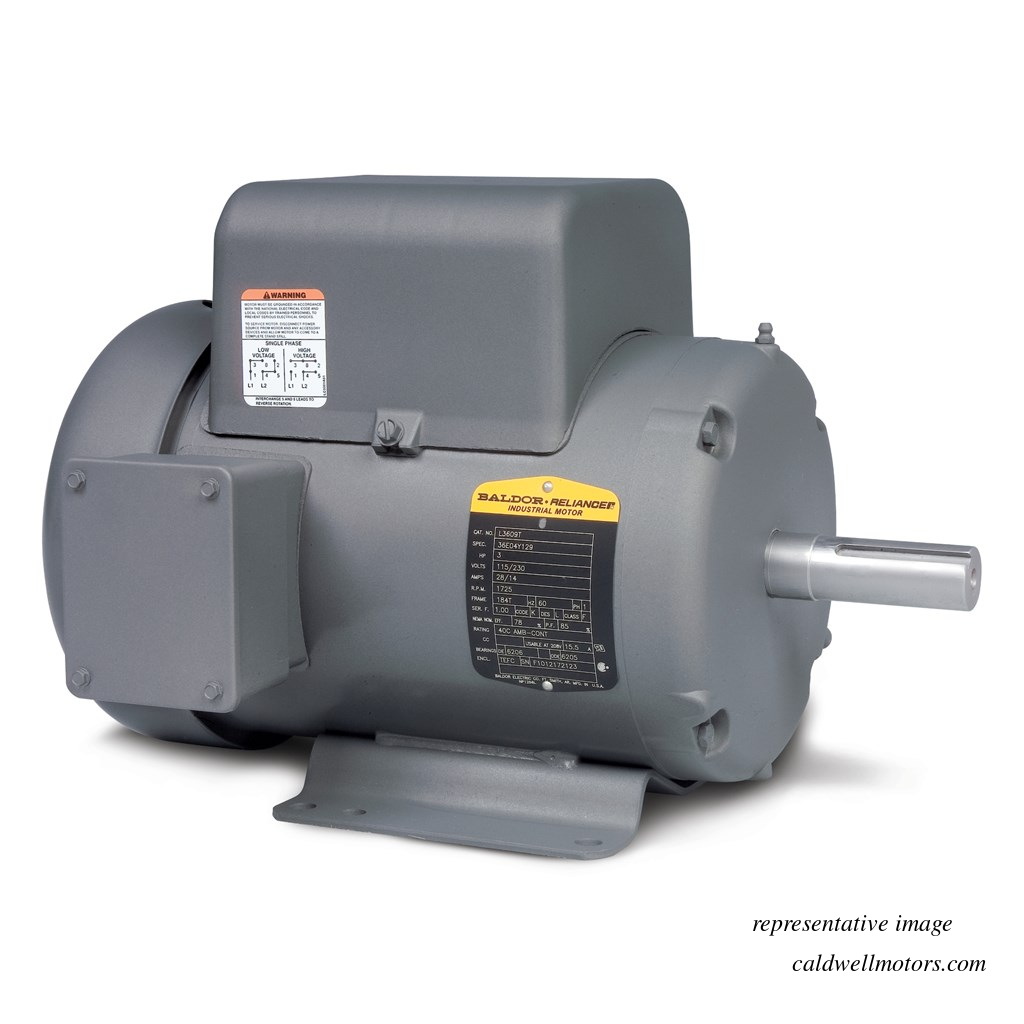

Baldor L3609T-50 2.2 KW 1440 rpm RPM 184T TEFC Single-Phase 220 V 50 Hz Motor
Baldor L3609T-50 2.2 KW 1440 rpm RPM 184T TEFC Single-Phase 220 V 50 Hz Motor
Regular price
$1,567.46
Regular price
Sale price
$1,567.46
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor single-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty.
Quick Specs
| Catalog No | L3609T-50 |
| Phase | 1 |
| Output Power | 2.2 KW |
| RPM | 1440 rpm |
| Frame | 184T |
| Enclosure | TEFC |
| Voltage | 220 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Robust heavy gauge steel
- Upgrade to IP54 with drain fitting kit #HA5027A03
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: L3609T-50
Phase: Single-Phase
Power: 2.9480000000000004 HP
RPM: 1500 RPM @ 50 HZ
Frame: 184T
Enclosure: TEFC
Voltage: 220.0 V @ 50 HZ
FL Amps: 12.000 A @ 220.0 V
Efficiency: 84.3
Service Factor: 1.15
Construction: Steel
Shaft Diameter: 1.125 IN
Inverter Ready? Not Inverter
NEMA Design: -
Weight: 95 lb
Application:
- General Purpose
