Description

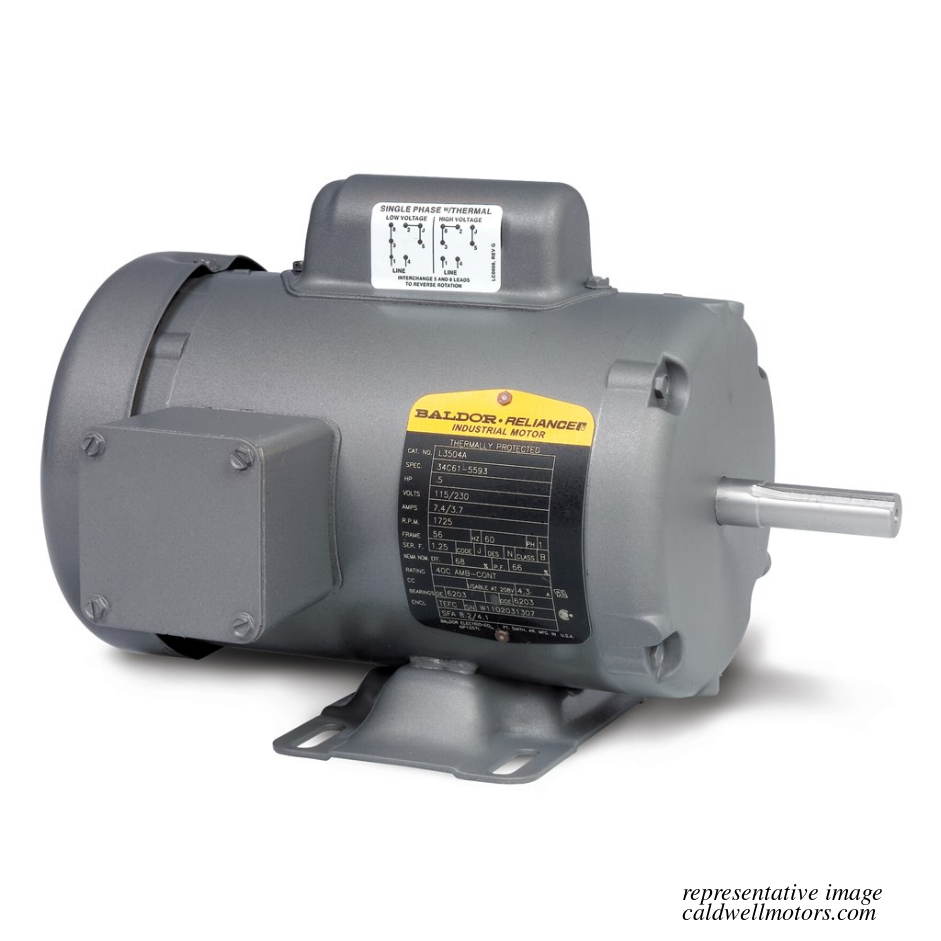

Baldor single-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty.
Quick Specs
| Catalog No |
L3409-50 |
| Phase |
1 |
| Output Power |
0.37 KW |
| RPM |
1425 rpm |
| Frame |
48 |
| Enclosure |
TEFC |
| Voltage |
220/110 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Robust heavy gauge steel
- Upgrade to IP54 with drain fitting kit #HA5027A03
Dimensional Drawing
baldor.com L3409-50 drawing
Wiring Diagram
baldor.com L3409-50 diagram
