ABB Baldor
Baldor EM2334T-58 20 HP 1465 rpm RPM 256T TEFC Three-Phase 400 V 50 Hz Motor
Baldor EM2334T-58 20 HP 1465 rpm RPM 256T TEFC Three-Phase 400 V 50 Hz Motor
Regular price
$3,578.55
Regular price
Sale price
$3,578.55
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

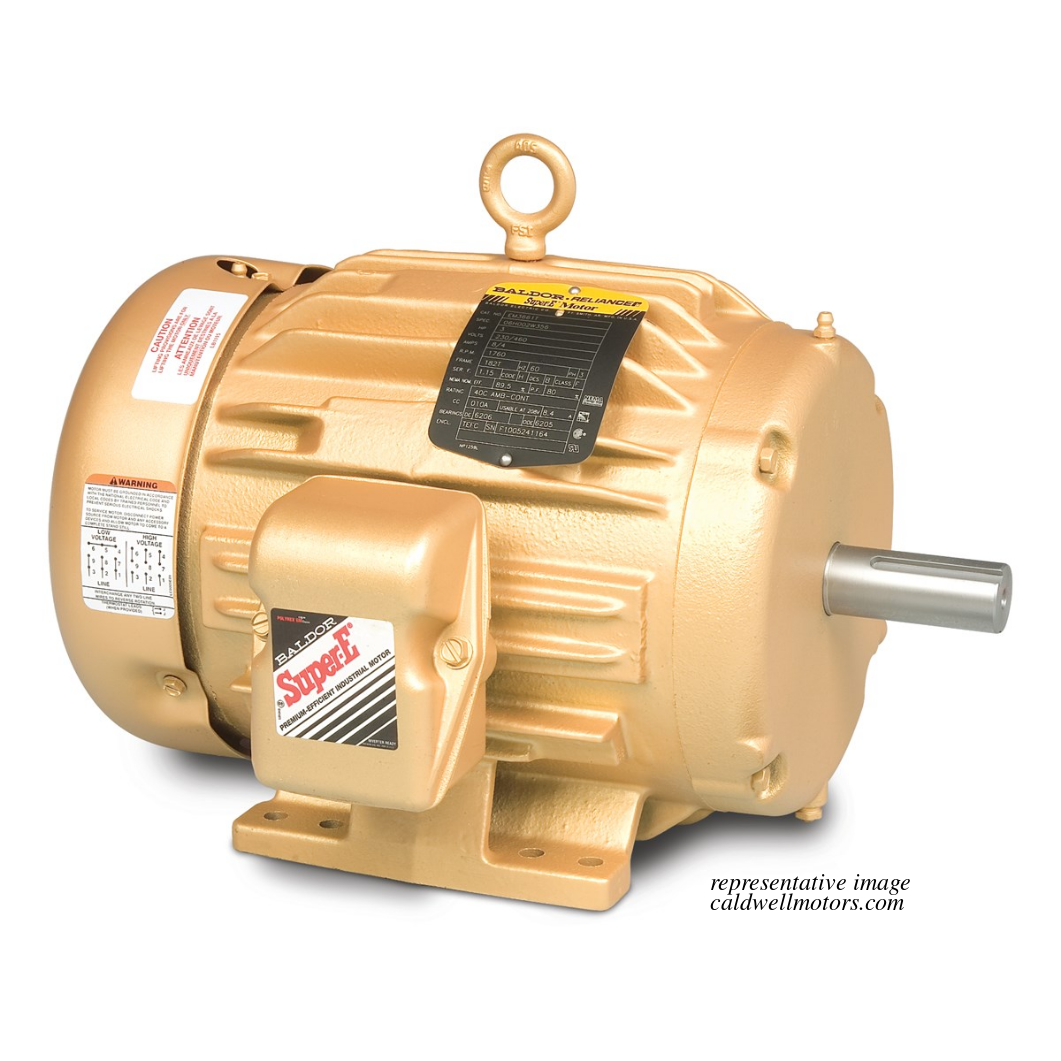

Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Quick Specs
| Catalog No | EM2334T-58 |
| Phase | 3 |
| Output Power | 20 HP |
| RPM | 1465 rpm |
| Frame | 256T |
| Enclosure | TEFC |
| Voltage | 400 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Cast Iron Construction
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: EM2334T-58
Phase: Three-Phase
Power: 20 HP
RPM: 1500
Frame: 256T
Enclosure: TEFC
Voltage: 400
FL Amps: 28
Efficiency: 92.1
Service Factor: 1.15
Construction: Cast Iron
Shaft Diameter:
Inverter Ready? Not Inverter
NEMA Design: A
Weight: 304 lb
Application:
- General Purpose
