ABB Baldor

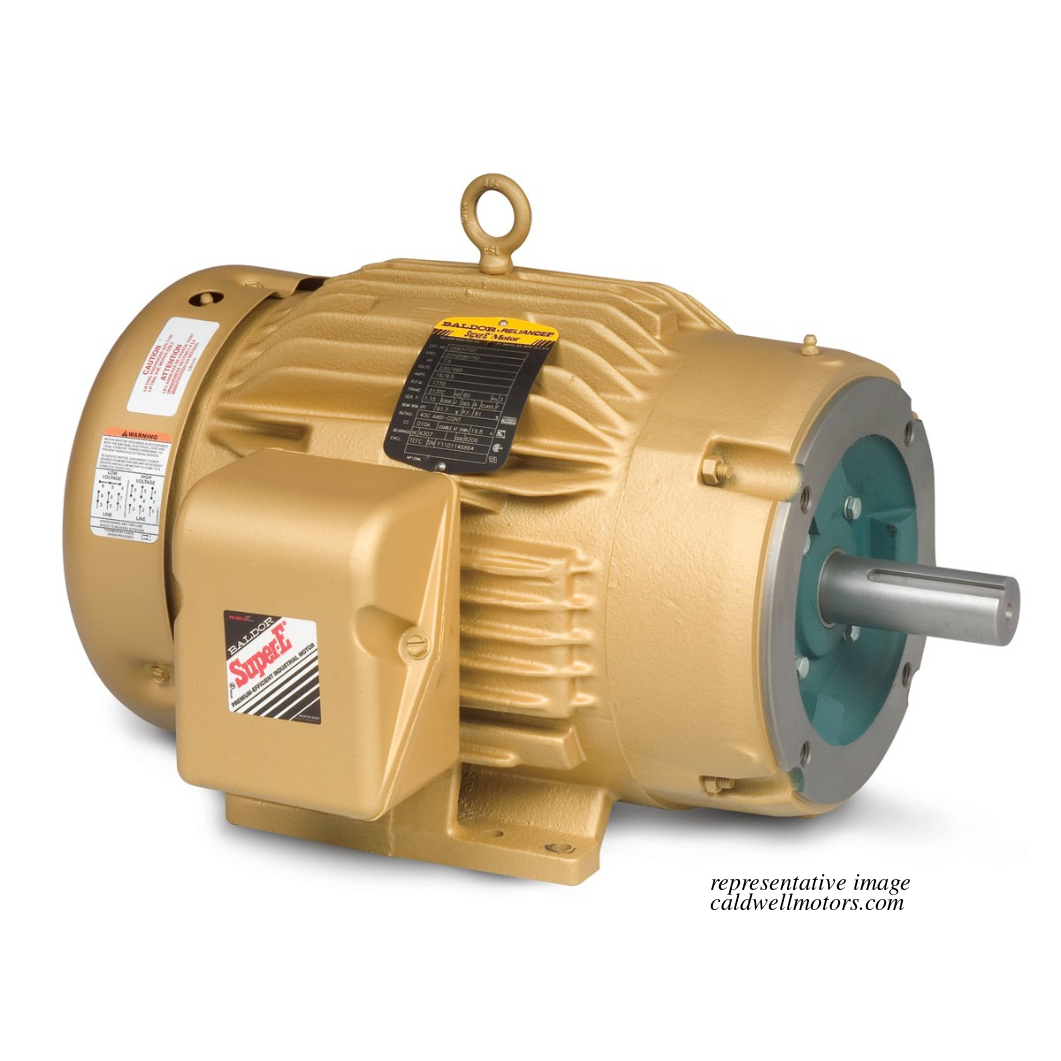

Baldor CM2333T-58 15 HP 1460 rpm RPM 254TC TEFC Three-Phase 380/415 V 50 Hz Motor
Baldor CM2333T-58 15 HP 1460 rpm RPM 254TC TEFC Three-Phase 380/415 V 50 Hz Motor
Regular price
$3,067.33
Regular price
Sale price
$3,067.33
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Quick Specs
| Catalog No | CM2333T-58 |
| Phase | 3 |
| Output Power | 15 HP |
| RPM | 1460 rpm |
| Frame | 254TC |
| Enclosure | TEFC |
| Voltage | 380/415 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Cast Iron Construction
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: CM2333T-58
Phase: Three-Phase
Power: 15.0 HP
RPM: 1500 RPM @ 50 HZ
Frame: 254TC
Enclosure: TEFC
Voltage: 380.0 V @ 50 HZ, 415.0 V @ 50 HZ
FL Amps: 22.000 A @ 380.0 V, 22.500 A @ 415.0 V
Efficiency: 90.2
Service Factor: 1
Construction: Cast Iron
Shaft Diameter: 1.625 IN
Inverter Ready? Not Inverter
NEMA Design: A
Weight: 236 lb
Application:
- General Purpose
