Weg CFW500 VFD AC Drives

The Weg CFW500 VFD is designed with a large choice of plug-and-play options, including most communication buses. Available in both single-phase input up to 3 HP,  3-phase 240V up to 75 HP and 460V up to 175 HP.  NEMA 4X / IP66 versions are also available up to 25 HP.

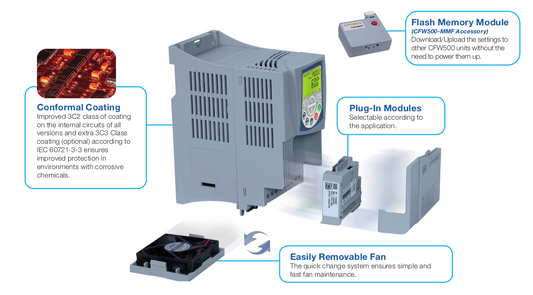

Features

  • Built-In programmable Soft-PLC for advanced control scenarios
  • IP20 Enclosure with optional NEMA 1 kit  (IP66 / NEMA 4X also available)
  • 200-240V, 380-480V, or 500-600 input voltages
  • 0 to 500 Hz output frequency
  • 2.5 to 15kHz adjustable carrier frequency
  • 4 isolated digital inputs built-in (more available as options)
  • 1 NC/NO  relay output up to 240VAC 0.5Amp
  • 1 Transistor output
  • 1 isolated analog input
  • 1 isolated analog output



101 products

Filter

Show previous products

  • CFW500 Frame Size C

    View options

    WEG Weg CFW500C14P0T4DB20 VFD 14.0 Amp 10 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 12105917 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $902.98

    View options

  • CFW500 Frame Size C

    View options

    WEG Weg CFW500C14P0T4DB20G2 VFD 14.0 Amp 10 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575707 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $902.98

    View options

  • CFW500 Frame Size C

    View options

    WEG Weg CFW500C16P0T4DB20G2 VFD 16.0 Amp 10 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575711 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,017.14

    View options

  • CFW500 Frame Size D

    View options

    WEG Weg CFW500D28P0T2DB20G2 VFD 28.0 Amp 10 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15575716 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,073.31

    View options

  • CFW500 Frame Size D

    View options

    WEG Weg CFW500D33P0T2DB20G2 VFD 33.0 Amp 10 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15576432 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,296.18

    View options

  • CFW500 Frame Size D

    View options

    WEG Weg CFW500D24P0T4DB20G2 VFD 24.0 Amp 15 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15576919 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,346.32

    View options

  • CFW500 Frame Size D

    View options

    WEG Weg CFW500D31P0T4DB20G2 VFD 31.0 Amp 25 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15577021 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,680.93

    View options

  • CFW500 Frame Size D

    View options

    WEG Weg CFW500D47P0T2DB20G2 VFD 47.0 Amp 15 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15576540 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $1,757.64

    View options

  • CFW500 Frame Size E

    View options

    WEG Weg CFW500E39P0T4DB20G2 VFD 39.0 Amp 30 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15577211 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $2,020.98

    View options

  • CFW500 Frame Size E

    View options

    WEG Weg CFW500E56P0T2DB20G2 VFD 56.0 Amp 20 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15577077 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $2,041.52

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F77P0T2DB20G2 VFD 77.0 Amp 20-25 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15342437 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $2,506.60

    View options

  • CFW500 Frame Size E

    View options

    WEG Weg CFW500E49P0T4DB20G2 VFD 49.0 Amp 40 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15577452 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $2,545.26

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F88P0T2DB20G2 VFD 88.0 Amp 25-30 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15342760 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $3,140.80

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F77P0T4DB20G2 VFD 77.0 Amp 50-60 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15733937 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $3,442.80

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F0105T2DB20G2 VFD 105 Amp 30-40 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15342909 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $4,258.20

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F88P0T4DB20G2 VFD 88.0 Amp 60-75 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15734064 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $4,409.20

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0145T2NB20G2 VFD 145 Amp 40-50 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15655460 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $5,134.00

    View options

  • CFW500 Frame Size F

    View options

    WEG Weg CFW500F0105T4DB20G2 VFD 105 Amp 75 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15734119 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $5,375.60

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0145T2DB20G2 VFD 145 Amp 40-50 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15654806 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $5,493.38

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0142T4NB20G2 VFD 142 Amp 100-125 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448492 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $6,160.80

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0180T2NB20G2 VFD 180 Amp 50-60 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15655462 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $6,191.00

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0142T4DB20G2 VFD 142 Amp 100-125 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448371 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $6,592.66

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0180T2DB20G2 VFD 180 Amp 50-60 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15654807 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $6,622.86

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0180T4NB20G2 VFD 180 Amp 125-150 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448493 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $7,550.00

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0180T4DB20G2 VFD 180 Amp 125-150 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448372 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $8,078.50

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0211T2NB20G2 VFD 211 Amp 60-75 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15655589 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $8,154.00

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0211T2DB20G2 VFD 211 Amp 60-75 HP 230 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15654828 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $8,724.78

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0211T4NB20G2 VFD 211 Amp 150-175 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448494 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $8,758.00

    View options

  • CFW500 Frame Size G

    View options

    WEG Weg CFW500G0211T4DB20G2 VFD 211 Amp 150-175 HP 460 VAC Three-Phase Input

    Normally ships within 24 hours

    WEG Product Code: 15448373 The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C. The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee. This is a CFW500 Generation 2 (G2) VFD. What is the difference? Features Multiple Control Modes: Scaler (V/F), VVW (including PM motor), Vector (open and closed loop) Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds Built-In Motor Protection: Protects motor from overload/overcurrent, overvoltage, phase-loss, and more Built-in SoftPLC: Flexible customization with programmable ladder logic and free WPS software. Built-In PID Controller: PID mode provides closed loop process control from pressure, flow, or other input. Ambient Temp Rating to 50°C (frame-dependent) Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more Conformal-Coated Circuit Boards: Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3. Available with WEG Pump Genius: Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more Documentation CFW500 Users Manual CFW500 IP66 User Manual CFW500-G2 IP20 Brochure CFW500-G2 IP20 Product Flyer CFW500-G2 IP66 Product Flyer CFW500 Quick Setup Guide CFW500 Quick Parameters Reference CFW500 Programming Manual V3.7X CFW500 User/Programming Manual Addendum CFW500 SoftPLC Manual WEG Pump Genius Brochure

    Read more

    Normally ships within 24 hours

    $9,371.06

    View options

You have seen 101 out of 101 products
