Contactor accessories include front and side-mount auxiliary contacts, bus rails, coil surge suppressors, and interlocks. Check out our collections here!
Contactor Accessories
-
WEG Weg VRB E34 Coil Suppressor Plug-In for CWB Contactors
The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means. Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in. Catalog No. VRB E34 Suppresor Type Varistor Voltage 50-127VAC, 60-180VDC Compatible with all Weg CWB series contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$13.83
-
WEG Weg VRB D73 Coil Suppressor Plug-In for CWB Contactors
The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means. Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in. Catalog No. VRB D73 Suppresor Type Varistor Voltage 400-510VAC Compatible with all Weg CWB series contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$13.83
-
WEG Weg RCB D55 Coil Suppressor Plug-In for CWB Contactors
The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means. Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in. Catalog No. RCB D55 Suppresor Type RC Circuit Voltage 50-127V 50/60Hz Compatible with all Weg CWB series contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$13.83
-
WEG Weg RCB D53 Coil Suppressor Plug-In for CWB Contactors
The Weg CWB Plug-in surge suppressors quench the high voltage spikes inherent in magnetic coils when power is applied or removed. These suppressors help increase the life-splan of relay and switch contacts and protect sensitive electronics which may be used to turn on the contactor. Strongly recommended for applications where the contactor is controlled by a PLC or other electronic means. Weg offers three types: RC-Circuit, Varistor, and Diode. RC circuit types are generally recommended for AC coils. Varistor types can be used for either AC or DC coils. Diode type suppressors are recommended for DC coils only, and polarity must be observed when using the diode plug-in. Catalog No. RCB D53 Suppresor Type RC Circuit Voltage 24-48V 50/60Hz Compatible with all Weg CWB series contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$13.83
-
WEG Weg IM2 Interlock for CWB Contactors
The Weg IM1 and IM2 CWB contactor interlocks provide a mechanical means of safety for reversing and star-delta type starters. The interlocks are designed to be "zero-width", which means contactors can be mounted side-by-side without any gap or spacing. The IM1 is for CWB sizes 9 to 38 Amps, and the IM2 is for CWB 40+ amp contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$6.92
-
WEG Weg IM1 Interlock for CWB Contactors
The Weg IM1 and IM2 CWB contactor interlocks provide a mechanical means of safety for reversing and star-delta type starters. The interlocks are designed to be "zero-width", which means contactors can be mounted side-by-side without any gap or spacing. The IM1 is for CWB sizes 9 to 38 Amps, and the IM2 is for CWB 40+ amp contactors. Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$5.53
-

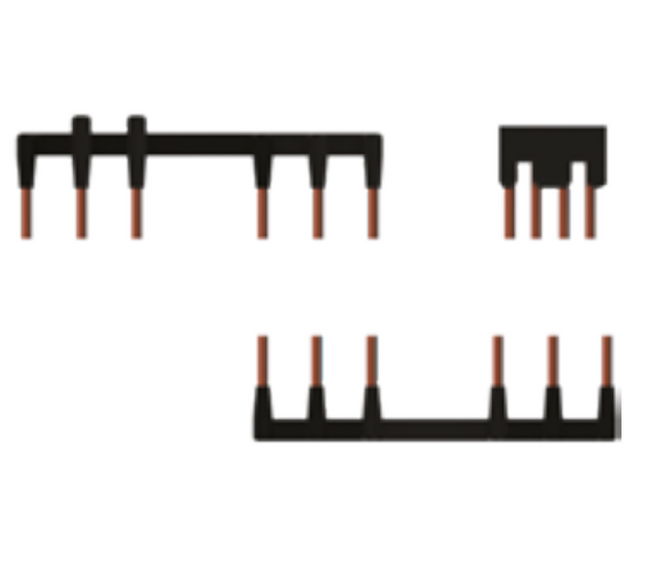

WEG Weg EC-SD3 Star-Delta Bus Bar Kit for CWB95-CWB125 Contactors for CWB Contactors
The Weg star-delta bus bars for CWB contactors provide an easy means of building a star-delta motor starter for 3-phase electric motors. These re specialized starters used to reduce the start-up in-rush currents on electric motors. A star-delta starter consists of 3 contactors working together to provide the appropriate switching so that the motor starts in a lower-current 'Y' mode, and then switches to 'Delta' mode once full speed is reached.Star-Delta starters should not be used when the motor is controlled by a soft-start or VFD drive. Contactor Model Combinations for the EC-SD3 CWB95/CWB95/CWB95 CWB110/CWB110/CWB95 CWB125/CWB125/CWB95 Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$62.24
-
WEG Weg EC-SD2 Star-Delta Bus Bar Kit for CWB50-CWB80 Contactors for CWB Contactors
The Weg star-delta bus bars for CWB contactors provide an easy means of building a star-delta motor starter for 3-phase electric motors. These re specialized starters used to reduce the start-up in-rush currents on electric motors. A star-delta starter consists of 3 contactors working together to provide the appropriate switching so that the motor starts in a lower-current 'Y' mode, and then switches to 'Delta' mode once full speed is reached.Star-Delta starters should not be used when the motor is controlled by a soft-start or VFD drive. Contactor Model Combinations for the EC-SD2 CWB50/CWB50/CWB40 CWB65/CWB65/CWB40 CWB80/CWB80/CWB50 Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$41.49
-
WEG Weg EC-SD1 Star-Delta Bus Bar Kit for CWB9-CWB38 Contactors for CWB Contactors
The Weg star-delta bus bars for CWB contactors provide an easy means of building a star-delta motor starter for 3-phase electric motors. These re specialized starters used to reduce the start-up in-rush currents on electric motors. A star-delta starter consists of 3 contactors working together to provide the appropriate switching so that the motor starts in a lower-current 'Y' mode, and then switches to 'Delta' mode once full speed is reached.Star-Delta starters should not be used when the motor is controlled by a soft-start or VFD drive. Contactor Model Combinations for the EC-SD1 CWB9/CWB9/CWB9 CWB12/CWB12/CWB9 CWB18/CWB18/CWB12 CWB25/CWB25/CWB18 CWB32/CWB32/CWB18 CWB38/CWB38/CWB25 Documentation Weg CWB Flyer Weg CWB & RW27 Catalog
$34.58
You have seen 153 out of 153 products
