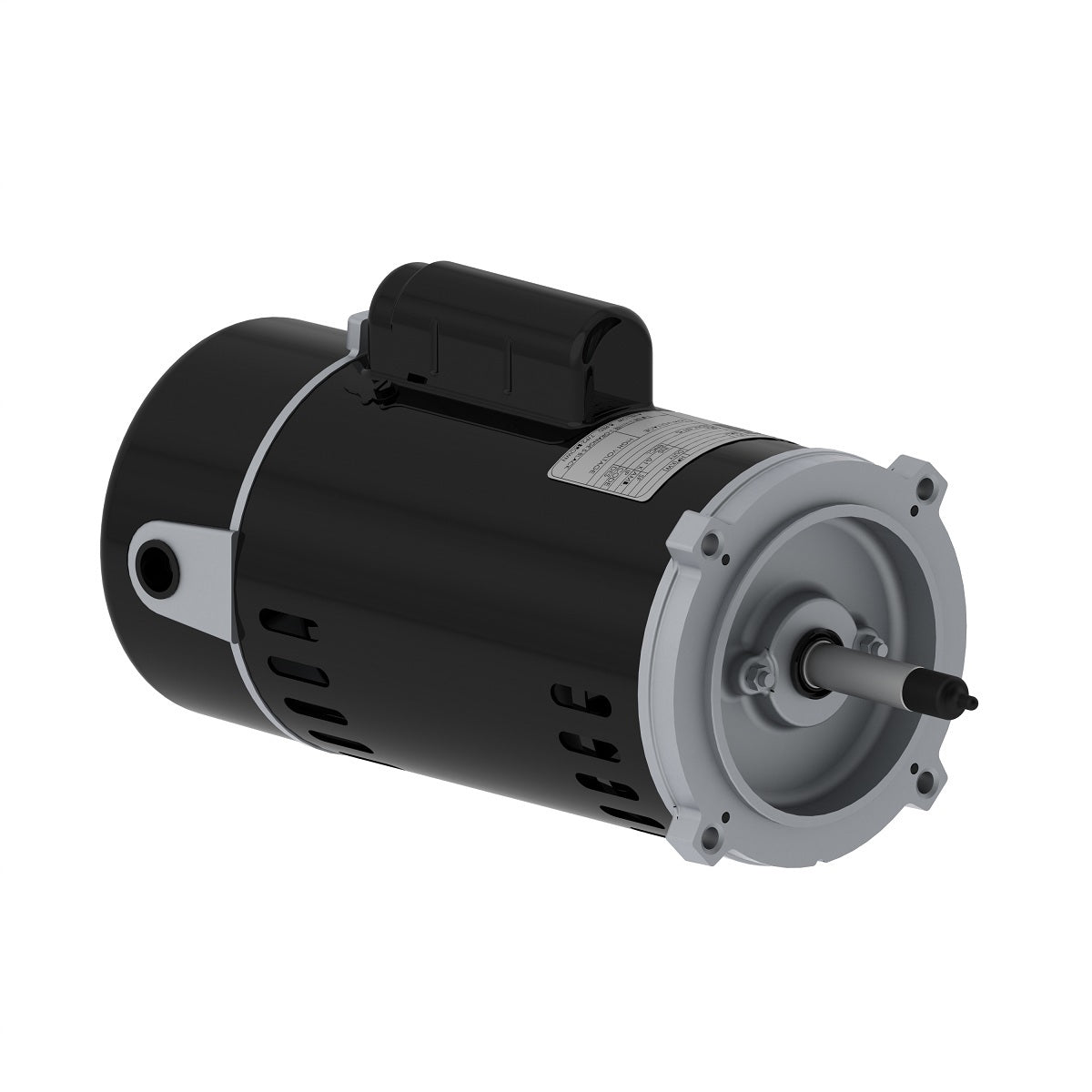

Weg PCJ107H 0.75 HP 3600 RPM K56J ODP Single-Phase Pool Pump Motor
Weg PCJ107H 0.75 HP 3600 RPM K56J ODP Single-Phase Pool Pump Motor
Couldn't load pickup availability
WEG Pool and Spa Pump motors are specifically designed for pool duty, featuring stainless steel shaft, automatic reset thermal protection , epoxy coating and rated for up to 50°C ambient temperatures.
Available with both round and square mount flanges, this model has a Round flange
It is also available in both high service factor (1.3-1.95) and standard service factor (1.04-1.3). Service factor determines how much the motor is designed to be overloaded. Catalog numbers ending in 'H' are high service factor motors. This motor is High service factor.
Share
![Weg Jet Pump Motor](http://www.caldwellmotors.com/cdn/shop/files/Weg_POOL_SPA_PUMP_C_FLANGE_d4a9dc02-41c4-4b29-9b40-0d8a0d3cb3f5.jpg?v=1704680202&width=1445)
Specifications, Features and Documentation
-
Specs
Model: PCJ107H
Phase: Single-Phase
Power: 0.75 HP
RPM: 3600
Frame: K56J
Enclosure: ODP
Voltage: 115/230V
Bearings: Ball Bearing
Weight: 26.89 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
-
Features
- Dual compartment for easy maintenance
- Rate for 50°C ambient temperature
- Stainless steel shaft
- Automatic reset thermal protection
- Threaded Shaft
- Terminal Box threaded fro NPT 1/2"
- Sealed Bearings
- Drive End shaft sealing
- Epoxy Coating
-
