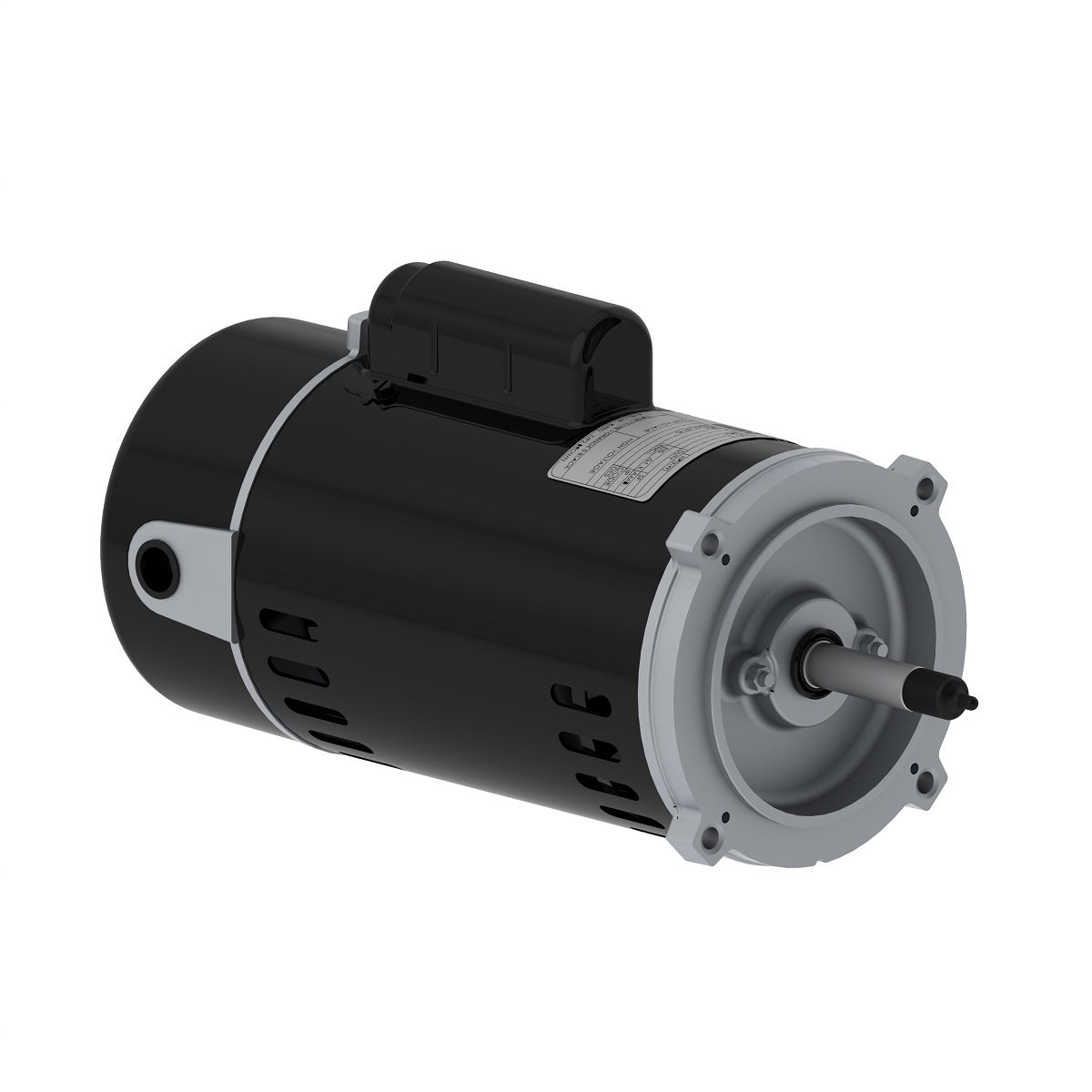

Weg PCJ107 0.75 HP 3600 RPM K56J ODP Single-Phase Pool Pump Motor
Weg PCJ107 0.75 HP 3600 RPM K56J ODP Single-Phase Pool Pump Motor
Couldn't load pickup availability
WEG Pool and Spa Pump motors are specifically designed for pool duty, featuring stainless steel shaft, automatic reset thermal protection , epoxy coating and rated for up to 50°C ambient temperatures.
Available with both round and square mount flanges, this model has a Round flange
It is also available in both high service factor (1.3-1.95) and standard service factor (1.04-1.3). Service factor determines how much the motor is designed to be overloaded. Catalog numbers ending in 'H' are high service factor motors. This motor is Standard service factor.
Share
Specifications, Features and Documentation
-
Specs
Model: PCJ107
Phase: Single-Phase
Power: 0.75 HP
RPM: 3600
Frame: K56J
Enclosure: ODP
Voltage: 115/230V
Bearings: Ball Bearing
Weight: 23.42 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
-
Features
- Dual compartment for easy maintenance
- Rate for 50°C ambient temperature
- Stainless steel shaft
- Automatic reset thermal protection
- Threaded Shaft
- Terminal Box threaded fro NPT 1/2"
- Sealed Bearings
- Drive End shaft sealing
- Epoxy Coating
-
