WEG

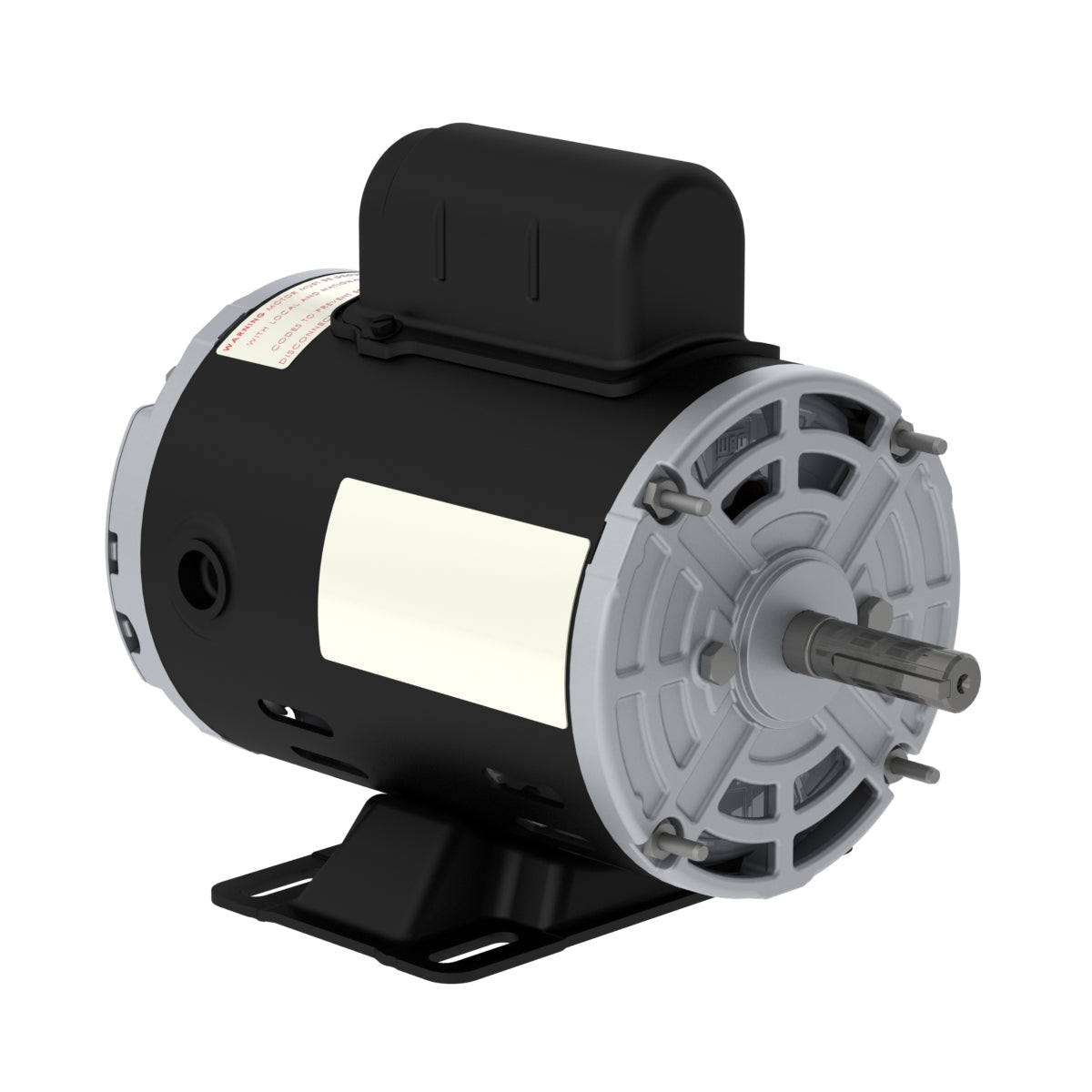

Weg .7536OS1BCDW56-S 0.75 HP 3600 RPM 56 ODP Single-Phase Compressor Duty Motor
Weg .7536OS1BCDW56-S 0.75 HP 3600 RPM 56 ODP Single-Phase Compressor Duty Motor
Regular price
$177.75
Regular price
$237.00
Sale price
$177.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG compressor duty motors are designed to meet the high torque requirements of air compressor loads.
This model is designed for high-torque compressor applications.
Share
Specifications, Features and Documentation
-
Specs
Model: .7536OS1BCDW56-S
Phase: Single-Phase
Power: 0.75 HP
RPM: 3600
Frame: 56
Enclosure: ODP
Voltage: 115/208-230V
Bearings: Ball Bearing
Weight: 22.46 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- Compressor
-
Features
- High Starting Torque
- Ball Bearings
- Class 'B' Insulation
- Base Seam-welded to Frame
- Manual Reset Overload (on single-phase motors)
-
More Documentation
