WEG

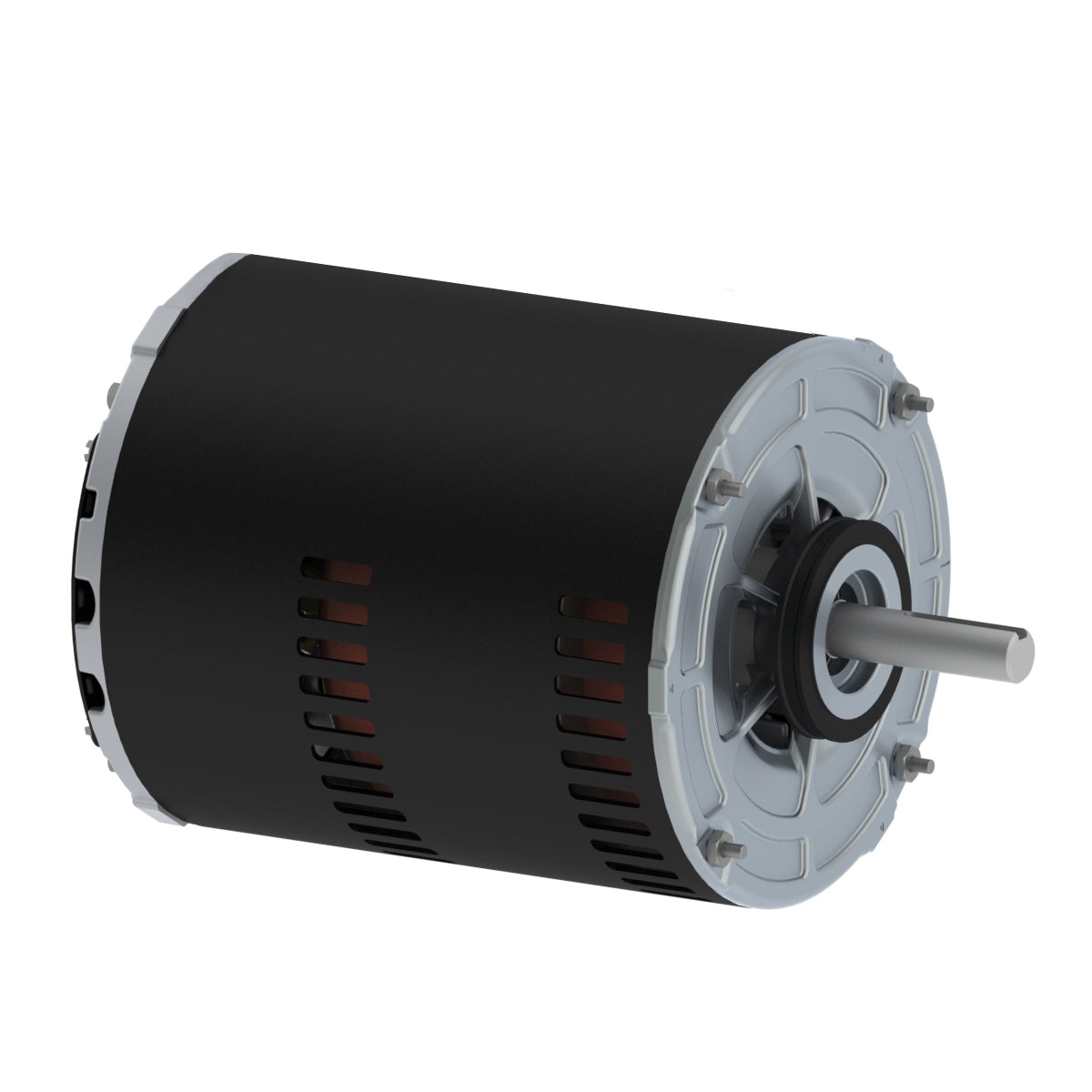

Weg .3382OS1AEC56 0.33 HP 1800/1200 RPM 56 ODP Single-Phase Motor
Weg .3382OS1AEC56 0.33 HP 1800/1200 RPM 56 ODP Single-Phase Motor
Regular price
$144.76
Regular price
$188.00
Sale price
$144.76
Unit price
/
per
Weg rolled steel Open Drip Proof (ODP) Single-Phase motors are popular, economical yet duarable motors suitable for home, office, farm, and light industrial use. The open enclosure offers a light-weight, quite and cost-effective motor with IP 21 rated protection.The rolled steel frame is painted with a nano-ceramic coating for protection against corrosion.
This model is designed for evaporative coolers.
Share
Specifications, Features and Documentation
-
Specs
Model: .3382OS1AEC56
Phase: Single-Phase
Power: 0.33 HP
RPM: 1800/1200
Frame: 56
Enclosure: ODP
Voltage: 115V
Bearings: Ball Bearing
Weight: 16.97 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- Evaporative Cooler
-
Features
- Open Drip-Proof Design
- Light-weight
- Quite operation: no fan
- SAE 1010 steel
- Nano-ceramic anti-corrosion coating
- Designed to NEMA MG 1 standards
- Oversized diagonally split aluminum terminal box exceeds IP55 requirements
- Terminal box rotatable in 90º increments for flexibility during installation
- Option for internal AEGIS® SGR
- Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
- Color coded/numbered leads as standard for easy wiring
-
