Description

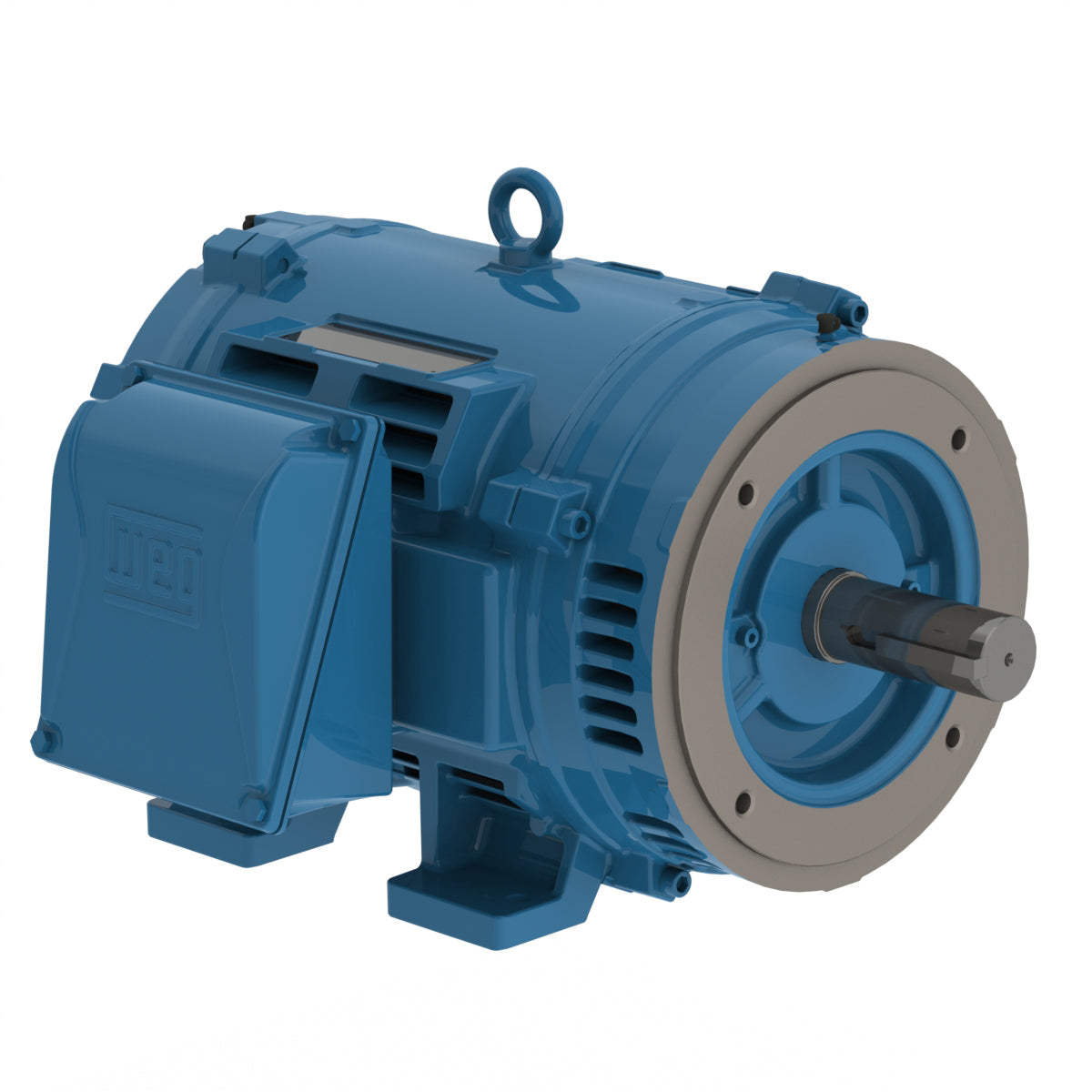

Weg W40 open drip proof cast iron motors are general purpose motors designed for environments where dirt and moisture are minimal. It provides maximum ventilation and heat dissipation and offers low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps, and chillers.

This model (--W40G) has Aegis Ring bearing protection installed.

Specifications

• Model: 12518OT3E405TC-W40G
• Phase: Three-Phase
• Power: 125 HP
• Base RPM: 1800
• Frame: 405TC
• Enclosure: ODP
• Enclosure Rating: IP23
• Voltage: 230/460V (usable at 208V)
• Construction: Cast Iron
• Weight: 1168.05 lb
