WEG

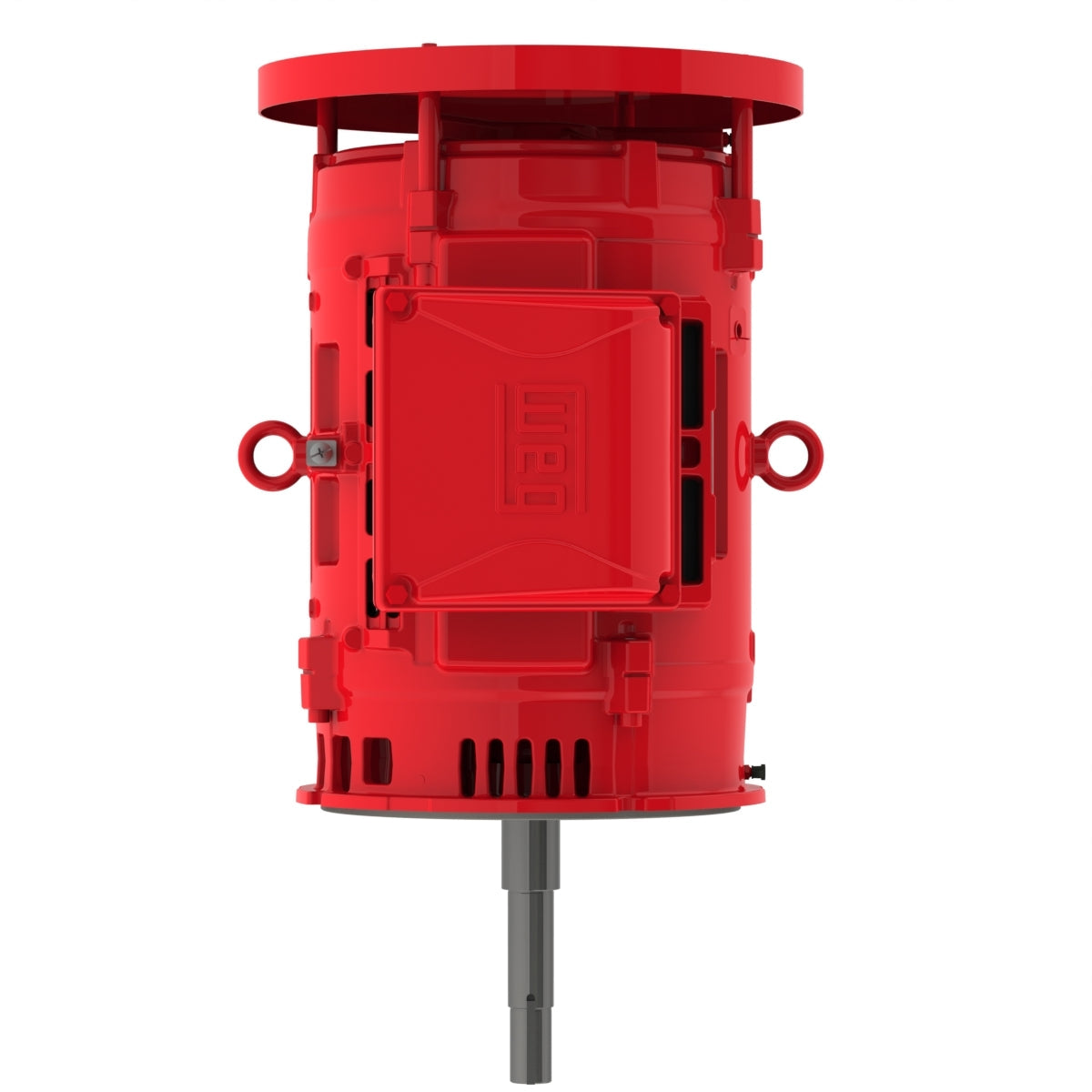

Weg 03036OP3HFP284JPV-W4 30 HP 3600 RPM 284JPV ODP Three-Phase Fire Pump Motor
Weg 03036OP3HFP284JPV-W4 30 HP 3600 RPM 284JPV ODP Three-Phase Fire Pump Motor
Regular price
$2,385.85
Regular price
Sale price
$2,385.85
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
This model is UL Listed for fire pump applications.
Share
Specifications, Features and Documentation
-
Specs
Model: 03036OP3HFP284JPV-W4
Phase: Three-Phase
Power: 30 HP
RPM: 3600
Frame: 284JPV
Enclosure: ODP
Voltage: 575V
Bearings: Ball Bearing
Weight: 388.58 lb
Efficiency: High Efficiency
Construction: Cast Iron
Application:
- Fire Pump
-
Features
- UL Listed for Fire Pump Service
- 12-Leads for Variety of Connection Options
- Class F Insulation with Class H Wire
- Stainless Steel Nameplate
- Service Factor 1.15
-
More Documentation
