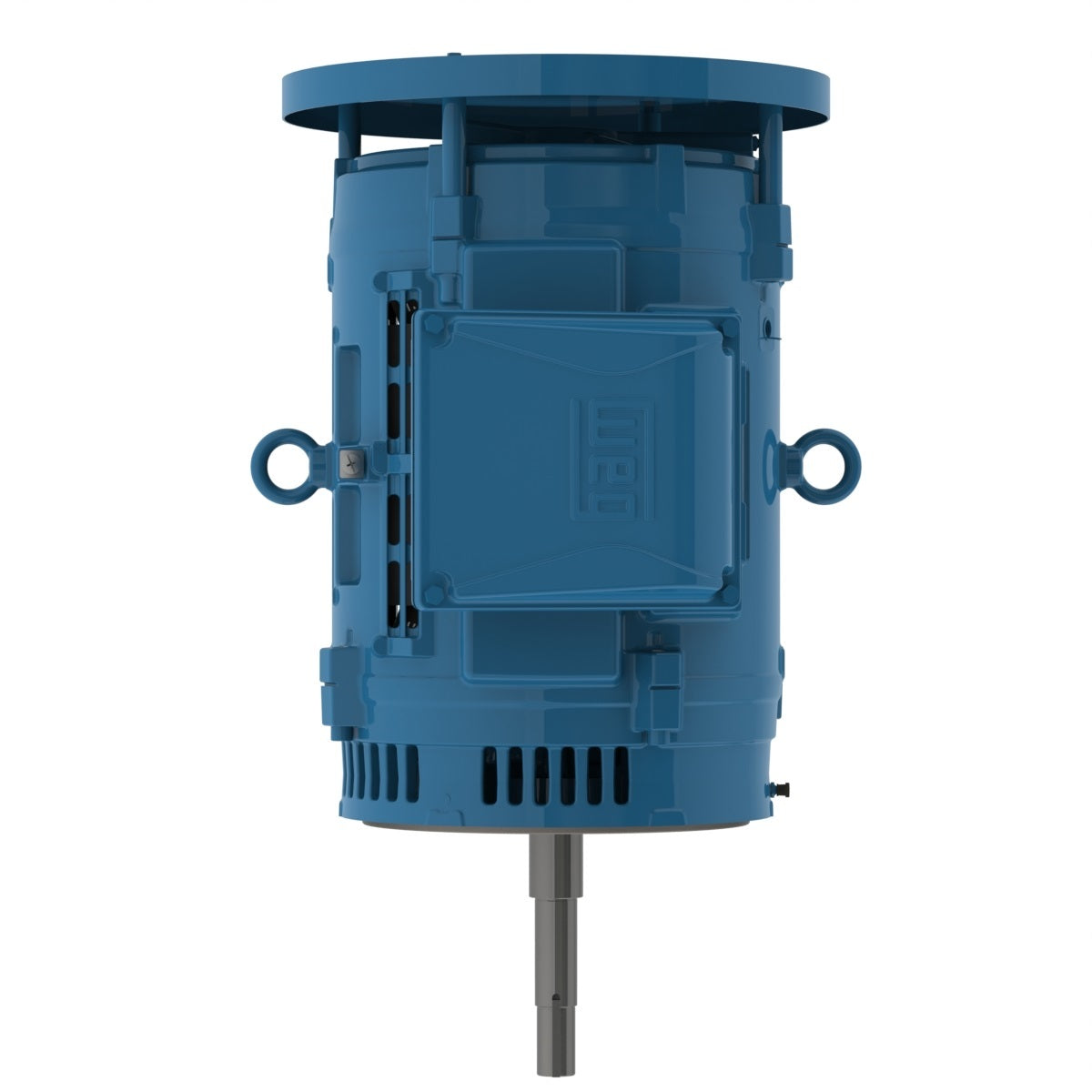

Weg 03018OT3E286JPV-W40 30 HP 1800 RPM 286JPV ODP Three-Phase Vertical Pump Motor
Weg 03018OT3E286JPV-W40 30 HP 1800 RPM 286JPV ODP Three-Phase Vertical Pump Motor
Regular price
$3,474.26
Regular price
Sale price
$3,474.26
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 03018OT3E286JPV-W40
Phase: Three-Phase
Power: 30 HP
RPM: 1800
Frame: 286JPV
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
FL Amps:
Bearings: Ball Bearing
Weight: 462.88 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Inverter Rated 1000:1 variable torque
- Class F Insulation, with Class H Wire
- Stainless Steel Laser Etched Nameplate
- Aegis Shaft Grounding Option (look for 'G' in suffix)
-
