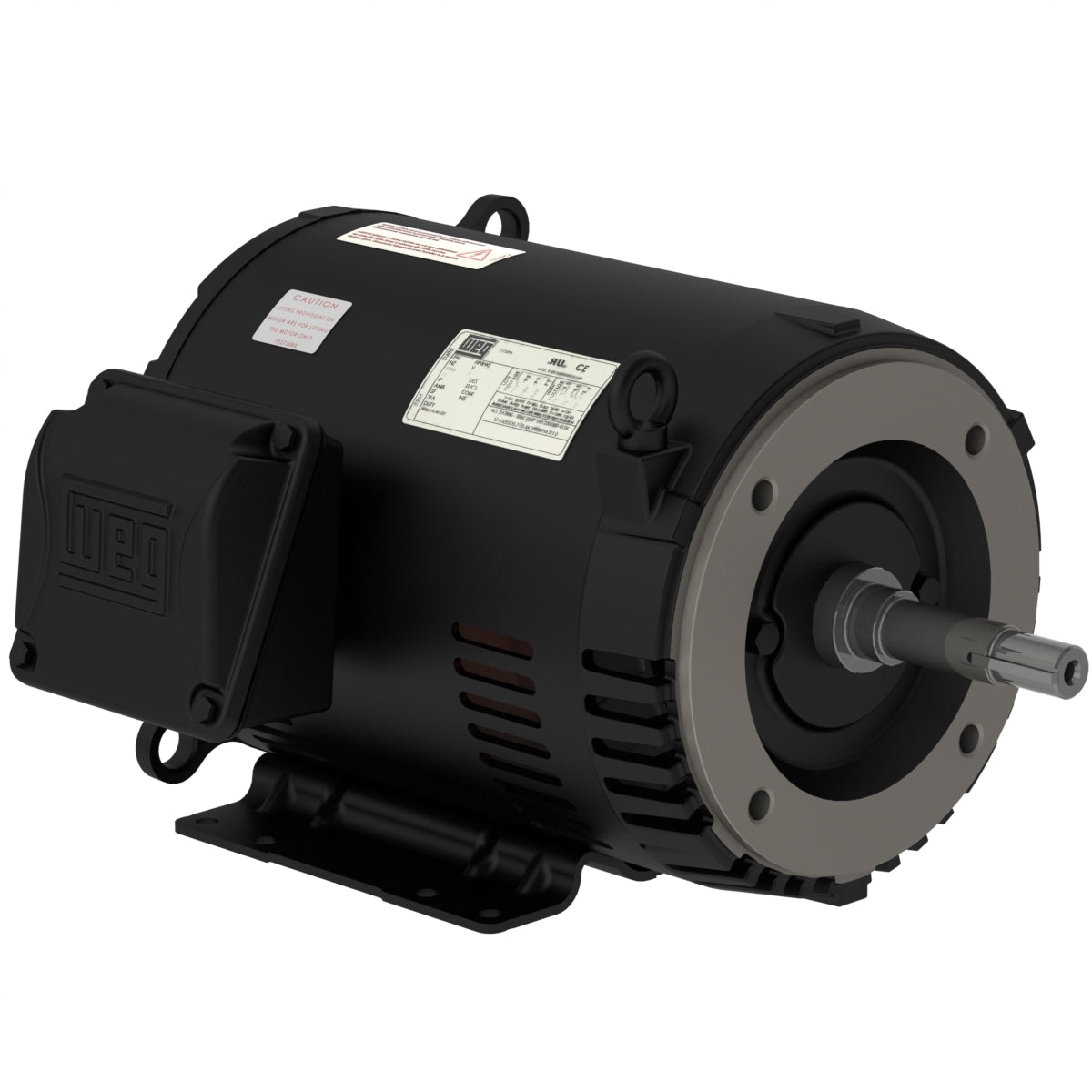

Weg 02536OT3E256JM-S 25 HP 3600 RPM 256JM ODP Three-Phase Close-Coupled Pump Motor
Weg 02536OT3E256JM-S 25 HP 3600 RPM 256JM ODP Three-Phase Close-Coupled Pump Motor
Regular price
$2,501.01
Regular price
Sale price
$2,501.01
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 02536OT3E256JM-S
Phase: Three-Phase
Power: 25 HP
RPM: 3600
Frame: 256JM
Enclosure: ODP
Voltage: 230/460V (usable at 208V)
FL Amps:
Bearings: Ball Bearing
Weight: 219.75 lb
Efficiency: NEMA Premium Efficiency
Construction: Rolled Steel
Application:
- Pump
-
Features
- Inverter Rated 1000:1 variable torque
- Class F Insulation, with Class H Wire
- Stainless Steel Laser Etched Nameplate
- Aegis Shaft Grounding Option (look for 'G' in suffix)
-
More Documentation
