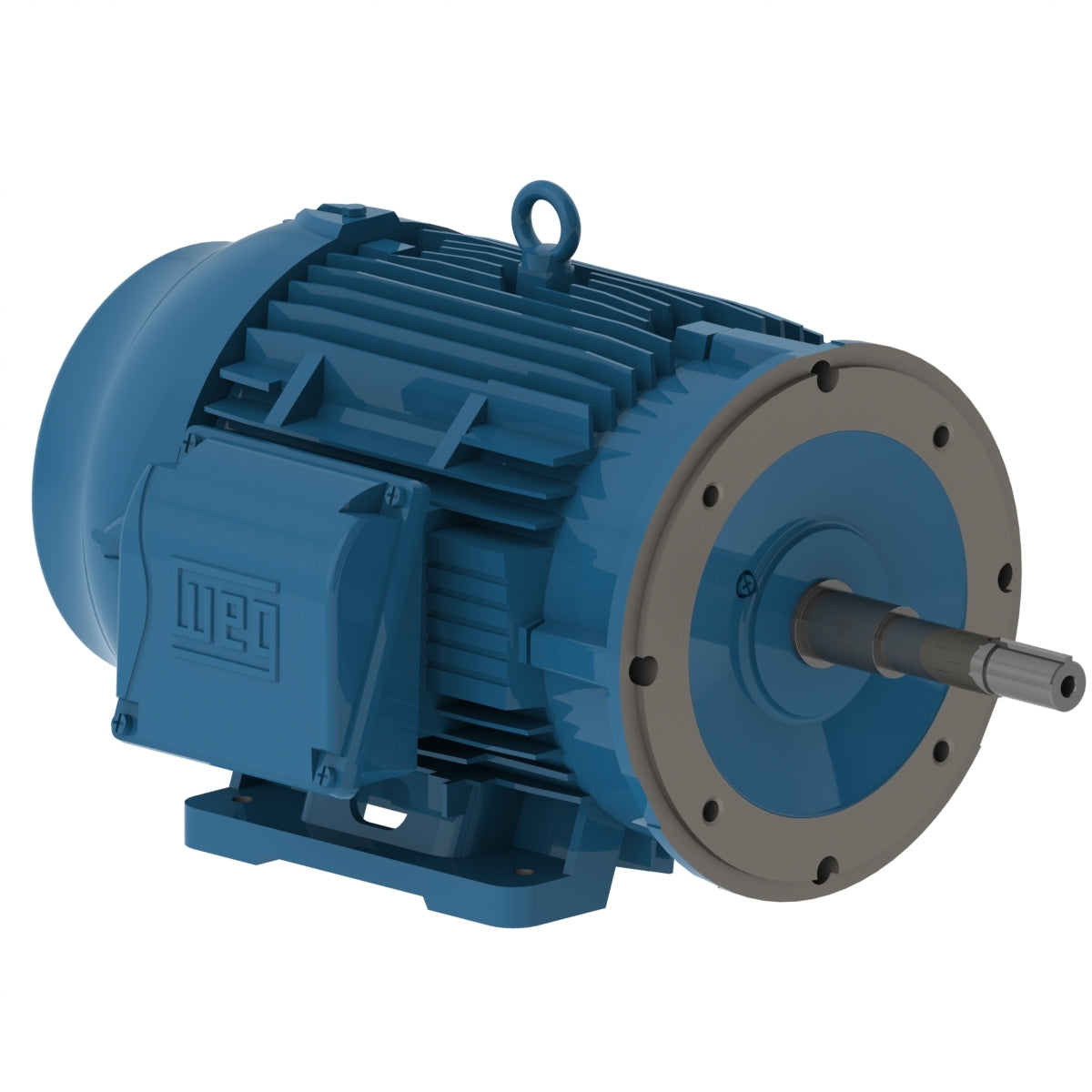

Weg 02512ET3E324JP-W22 25 HP 1200 RPM 324JP TEFC Three-Phase Close-Coupled Pump Motor
Weg 02512ET3E324JP-W22 25 HP 1200 RPM 324JP TEFC Three-Phase Close-Coupled Pump Motor
Regular price
$4,479.18
Regular price
Sale price
$4,479.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 TEFC pump motors are severe duty and VFD rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 1000:1 variable torque.
Share
Specifications, Features and Documentation
-
Specs
Model: 02512ET3E324JP-W22
Phase: Three-Phase
Power: 25 HP
RPM: 1200
Frame: 324JP
Enclosure: TEFC
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 597.72 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Inverter Rated 1000:1 Variable Torque
- 1.25 Service Factor
- Class F Insulation with Class H Wire
- Stainless Steel Laser-Etched Nameplate
- Gasketed Conduit Box
- Class I Div 2 Groups A,B,C,D - T3; Class II Div 2 Groups F,G - T3C
- NPT Threaded Terminal Box
- Aegis Ring Shaft Grounding Option ('G' in model suffix)
-
