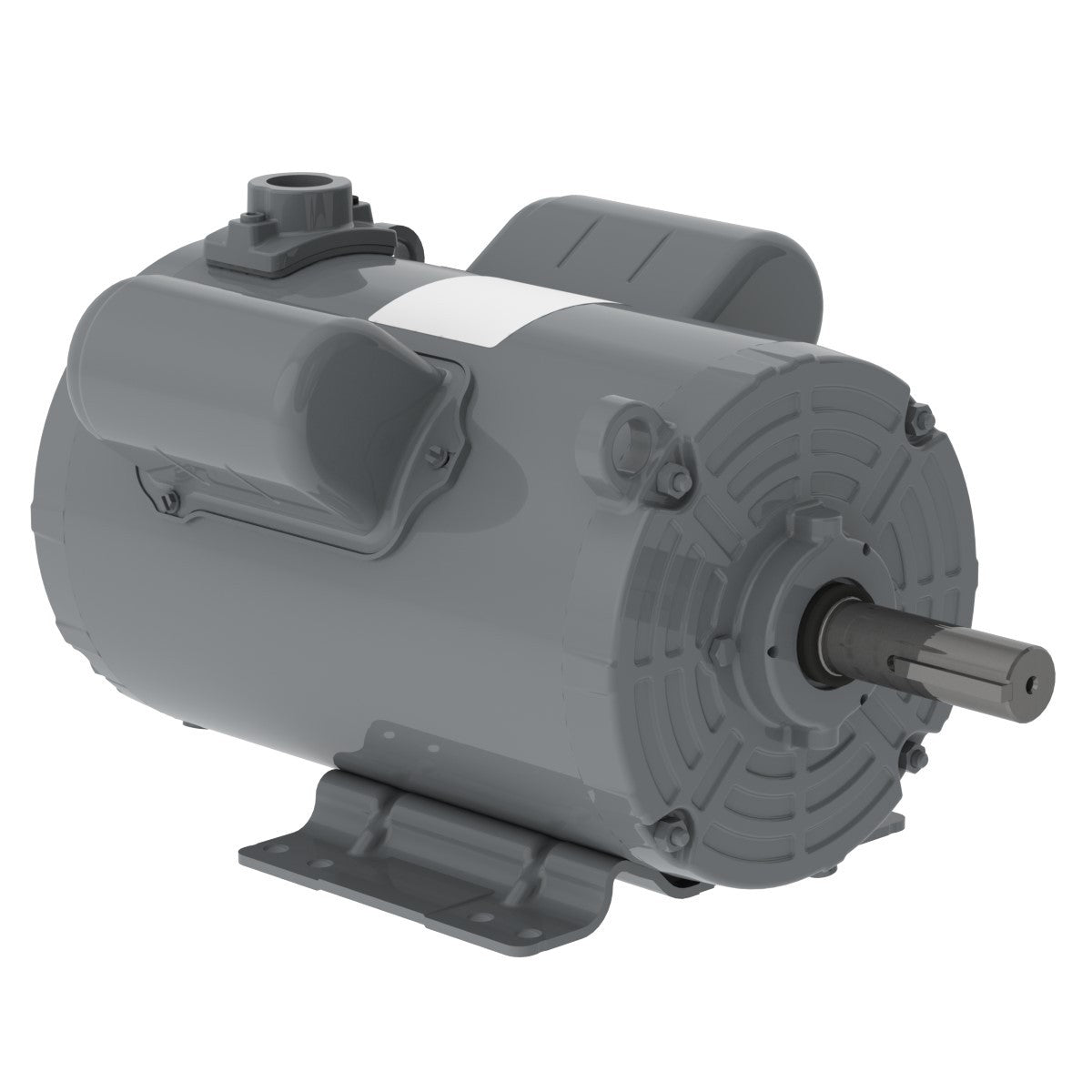

Weg 01536AP1DGD215TZ-S 15 HP 3600 RPM 215TZ TEAO Single-Phase Grain Dryer Motor
Weg 01536AP1DGD215TZ-S 15 HP 3600 RPM 215TZ TEAO Single-Phase Grain Dryer Motor
Regular price
$1,518.00
Regular price
$2,024.00
Sale price
$1,518.00
Unit price
/
per
WEG Farm Duty Grain Dryer motors are specifically designed for grain dyer applications. Features in totally enclosed air over design (TEAO), high starting torque, v-ring shaft seal, and built-in thermostats for thermal protection.

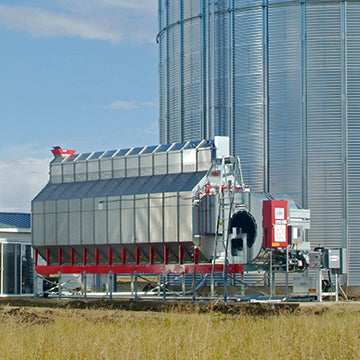

This model is especially suited for Grain dryers and vane axial fans.
Share
Specifications, Features and Documentation
-
Specs
Model: 01536AP1DGD215TZ-S
Phase: Single-Phase
Power: 15 HP
RPM: 3600
Frame: 215TZ
Enclosure: TEAO
Voltage: 230V
Bearings: Ball Bearing
Weight: 173.09 lb
Efficiency: High Efficiency
Construction: Rolled Steel
Application:
- Grain Dryer
-
Features
- Totally Enclosed Air Over (TEAO)
- IP55 Ingress Rating
- Built-in Thermostats for Thermal Protection
- V-Ring Shaft Seal
- NPT 3/4" fitting on Terminal Box
-
