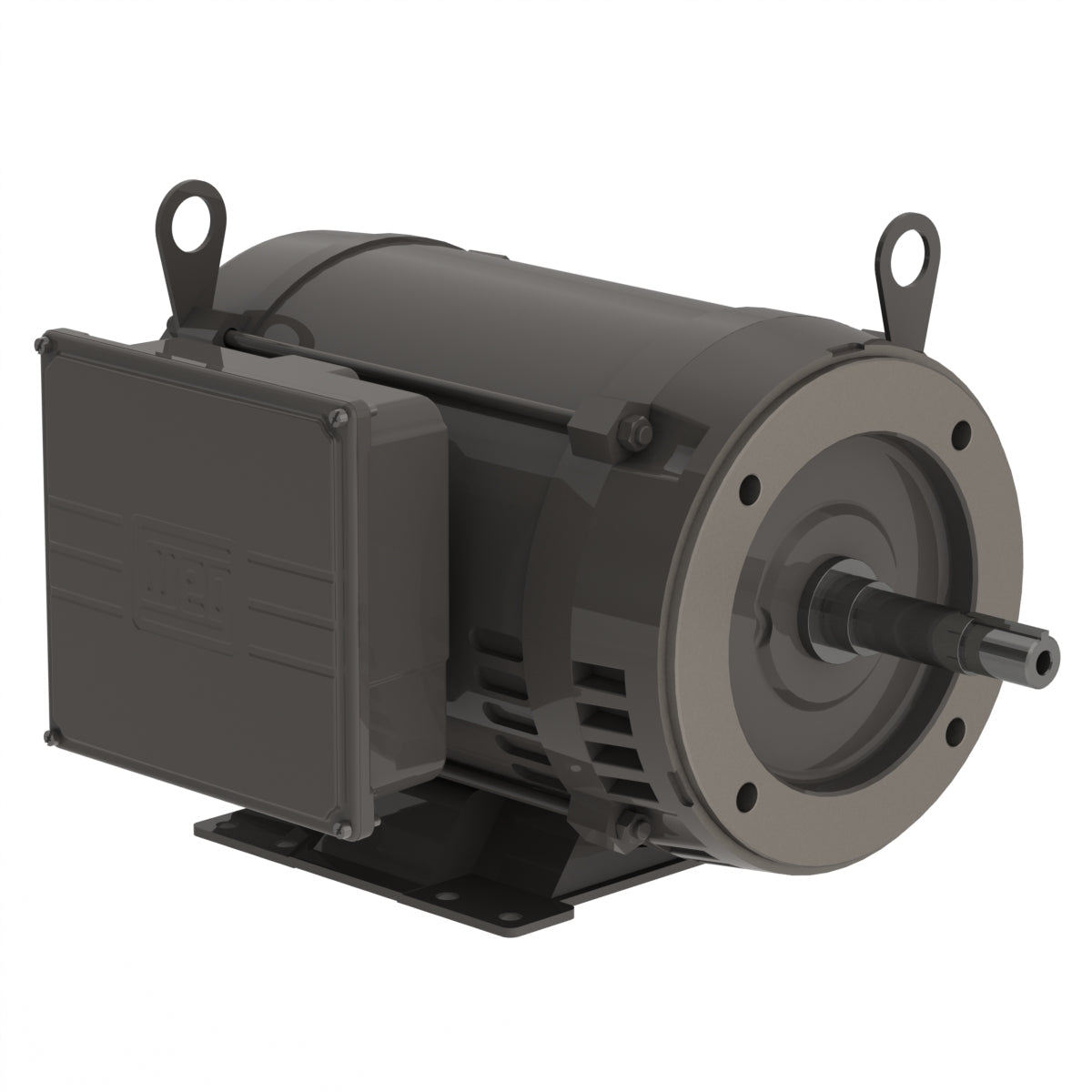

Weg 01036OS1C215JM 10 HP 3600 RPM 215JM ODP Single-Phase Close-Coupled Pump Motor
Weg 01036OS1C215JM 10 HP 3600 RPM 215JM ODP Single-Phase Close-Coupled Pump Motor
Regular price
$1,550.31
Regular price
Sale price
$1,550.31
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 01036OS1C215JM
Phase: Single-Phase
Power: 10 HP
RPM: 3600
Frame: 215JM
Enclosure: ODP
Voltage: 208-230V
FL Amps:
Bearings: Ball Bearing
Weight: 129.85 lb
Efficiency: Standard Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Service Factor for ODP: 1.0
- Service Factor for TEFC: 1.15
- Insulation Class F
- NPT Threaded Terminal Box
- Enclosure Rating for ODP: IP21
- Enclosure Rating for TEFC: IP55
-
