Description

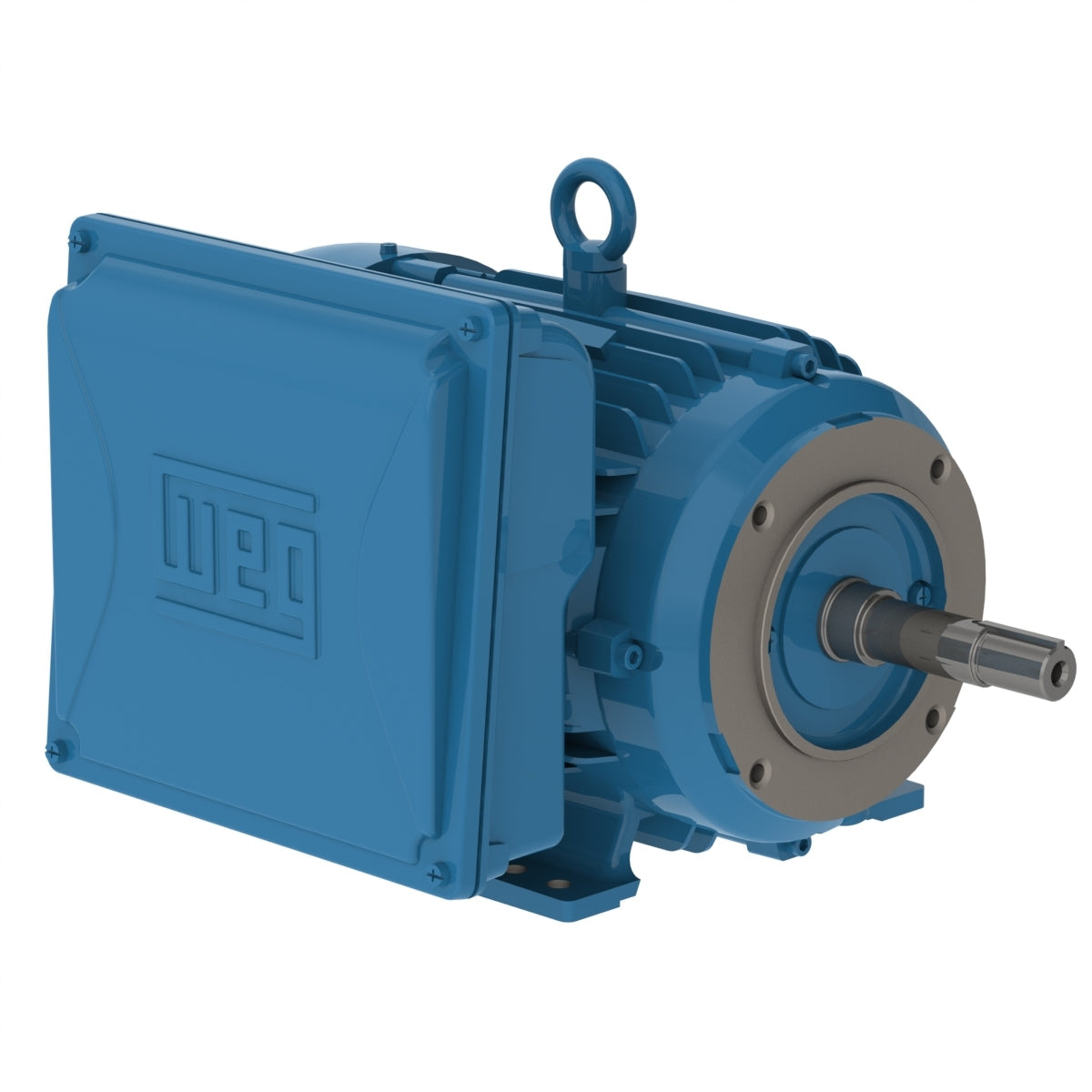

Weg W22 TEFC pump motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, and certification to Class I, Div2 locations.

Specifications

• Model: 01036ES1E215JM-W22
• Phase: Single-Phase
• Power: 10 HP
• Base RPM: 3600
• Frame: 215JM
• Enclosure: TEFC
• Enclosure Rating: IP55
• Voltage: 230/460V (usable at 208V)
• Construction: Cast Iron
• Weight: 177.37 lb
