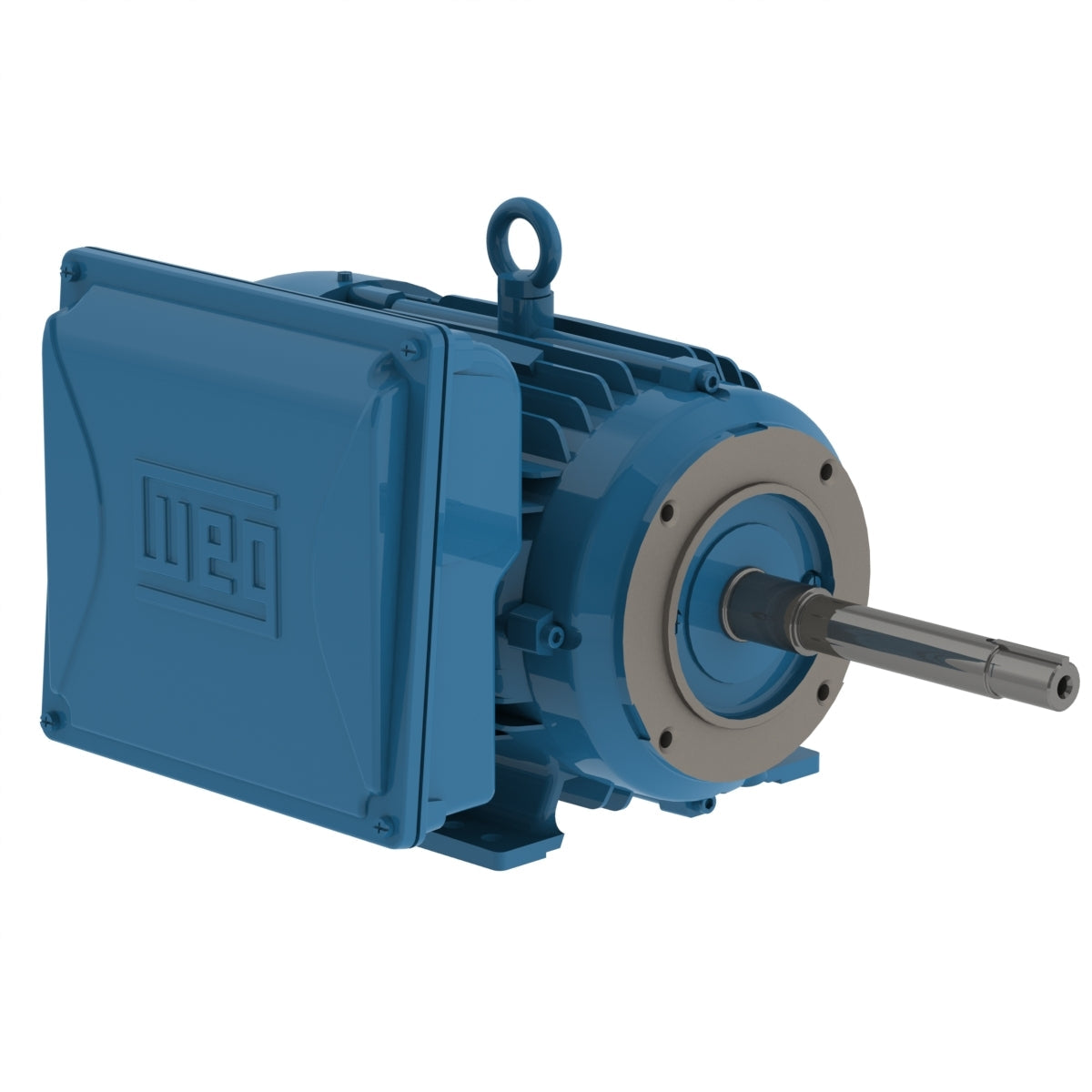

Weg 01036ES1C215JP-W22 10 HP 3600 RPM 215JP TEFC Single-Phase Close-Coupled Pump Motor
Weg 01036ES1C215JP-W22 10 HP 3600 RPM 215JP TEFC Single-Phase Close-Coupled Pump Motor
Regular price
$1,629.07
Regular price
Sale price
$1,629.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 TEFC pump motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, and certification to Class I, Div2 locations.
Share
Specifications, Features and Documentation
-
Specs
Model: 01036ES1C215JP-W22
Phase: Single-Phase
Power: 10 HP
RPM: 3600
Frame: 215JP
Enclosure: TEFC
Voltage: 208-230V
Bearings: Ball Bearing
Weight: 187.64 lb
Efficiency: Standard Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Service Factor for ODP: 1.0
- Service Factor for TEFC: 1.15
- Insulation Class F
- NPT Threaded Terminal Box
- Enclosure Rating for ODP: IP21
- Enclosure Rating for TEFC: IP55
-
