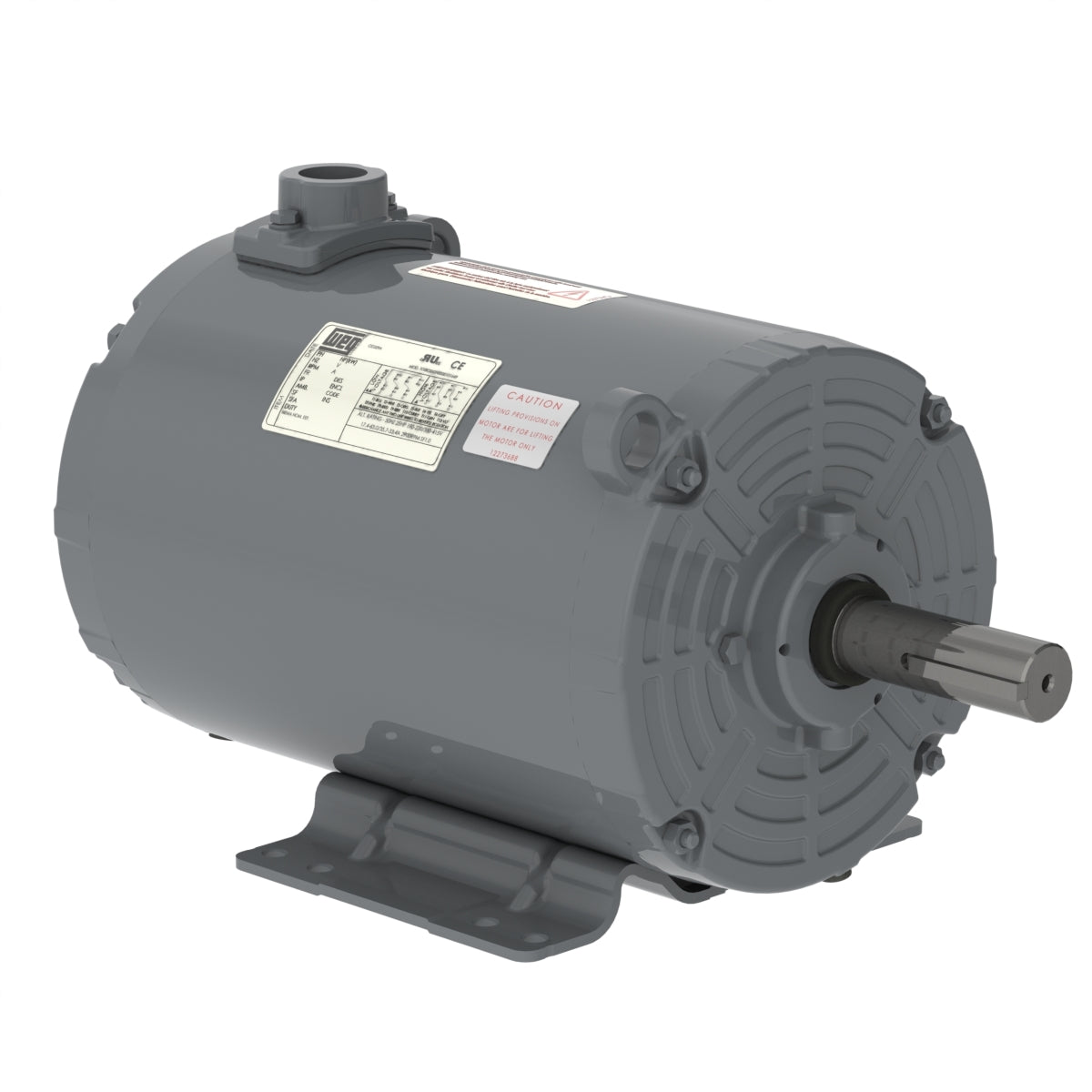

Weg 00736AP3FGD184TZ-S 7.5 HP 3600 RPM 184TZ TEAO Three-Phase Grain Dryer Motor
Weg 00736AP3FGD184TZ-S 7.5 HP 3600 RPM 184TZ TEAO Three-Phase Grain Dryer Motor
Regular price
$718.41
Regular price
$933.00
Sale price
$718.41
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG Farm Duty Grain Dryer motors are specifically designed for grain dyer applications. Features in totally enclosed air over design (TEAO), high starting torque, v-ring shaft seal, and built-in thermostats for thermal protection.

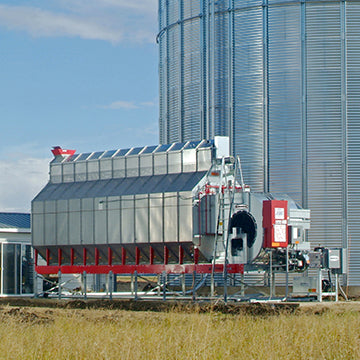

This model is especially suited for Grain dryers and vane axial fans.
Share


Specifications, Features and Documentation
-
Specs
Model: 00736AP3FGD184TZ-S
Phase: Three-Phase
Power: 7.5 HP
RPM: 3600
Frame: 184TZ
Enclosure: TEAO
Voltage: 230/460V
FL Amps:
Bearings: Ball Bearing
Weight: 76.92 lb
Efficiency: High Efficiency
Construction: Rolled Steel
Application:
- Grain Dryer
-
Features
- Totally Enclosed Air Over (TEAO)
- IP55 Ingress Rating
- Built-in Thermostats for Thermal Protection
- V-Ring Shaft Seal
- NPT 3/4" fitting on Terminal Box
-
