Description

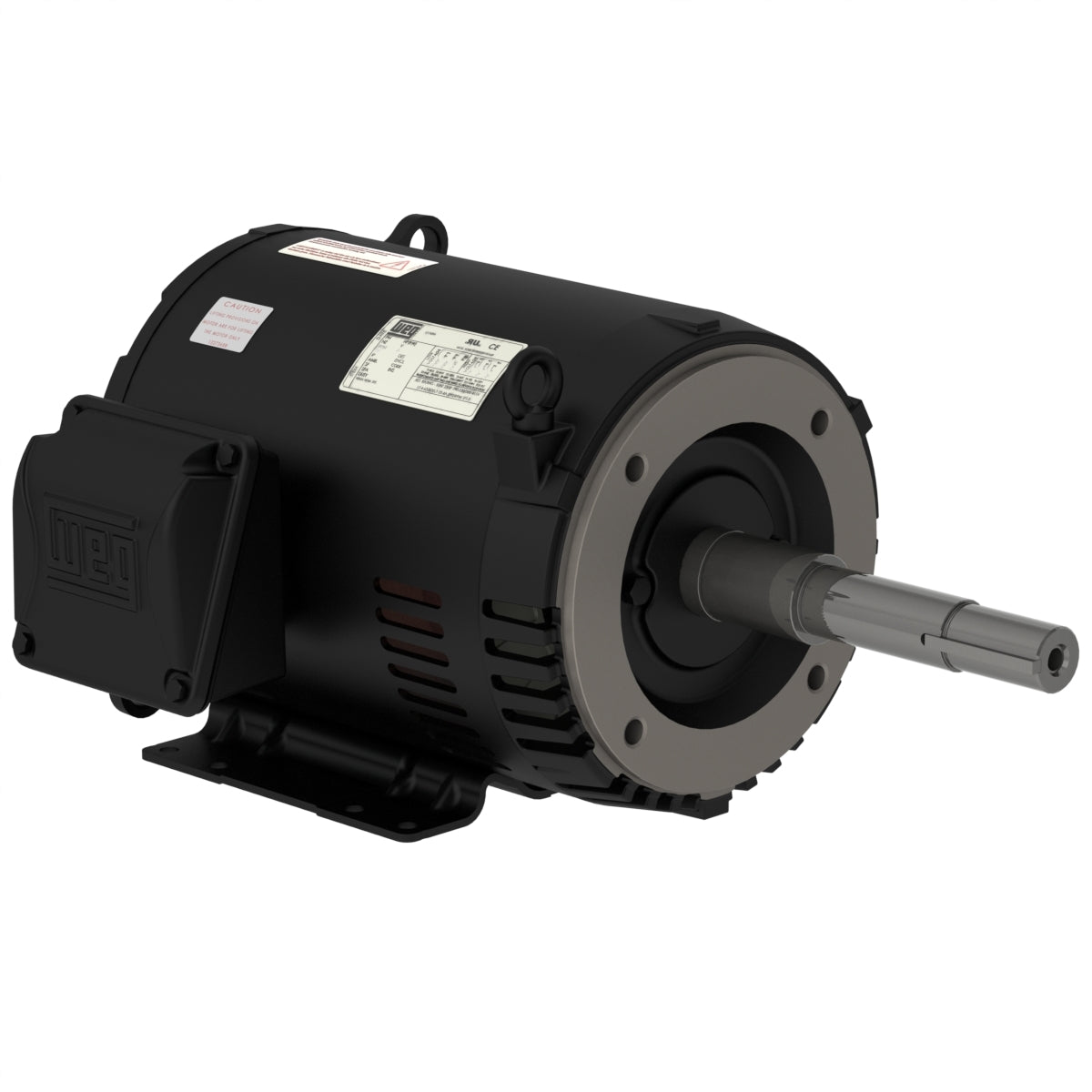

WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.

This model (--SG) has Aegis Ring bearing protection installed.

This model ('G' in model suffix) has an Aegis ring shaft grounding installed for bearing protection from VFD use.

Specifications

• Model: 00536OT3E182JP-SG
• Phase: Three-Phase
• Power: 5 HP
• Base RPM: 3600
• Frame: 182JP
• Enclosure: ODP
• Enclosure Rating: IP23
• Voltage: 230/460V (usable at 208V)
• Construction: Rolled Steel
• Weight: 63.26 lb
