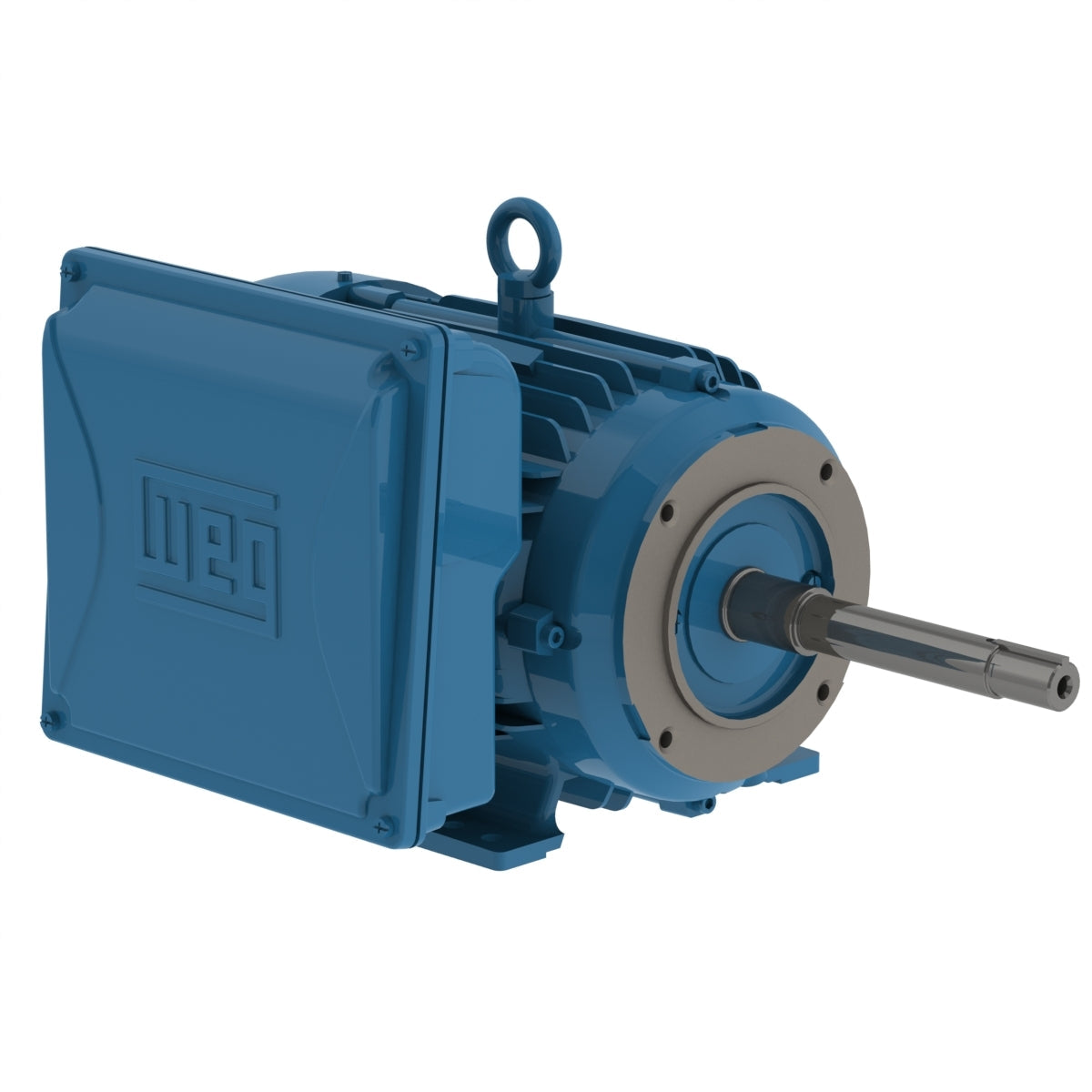

Weg 00536ES1B184JP-W22 5 HP 3600 RPM 184JP TEFC Single-Phase Close-Coupled Pump Motor

VendorWEG
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Weg W22 TEFC pump motors are severe duty rated with rugged features not found in many other electric motors, including... Read more

SKU: Weg-00536ES1B184JP-W22
Barcode: 7909492116462

Normally ships within 24 hours

$1,402.61

Description

Weg W22 TEFC pump motors are severe duty rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, and certification to Class I, Div2 locations.

Specifications

Model: 00536ES1B184JP-W22
Phase: Single-Phase
Power: 5 HP
Base RPM: 3600
Frame: 184JP
Enclosure: TEFC
Enclosure Rating: IP55
Voltage: 115/208-230V
Construction: Cast Iron
Weight: 119.72 lb
Read more less

Weg 00536ES1B184JP-W22 5 HP 3600 RPM 184JP TEFC Single-Phase Close-Coupled Pump Motor
