Description

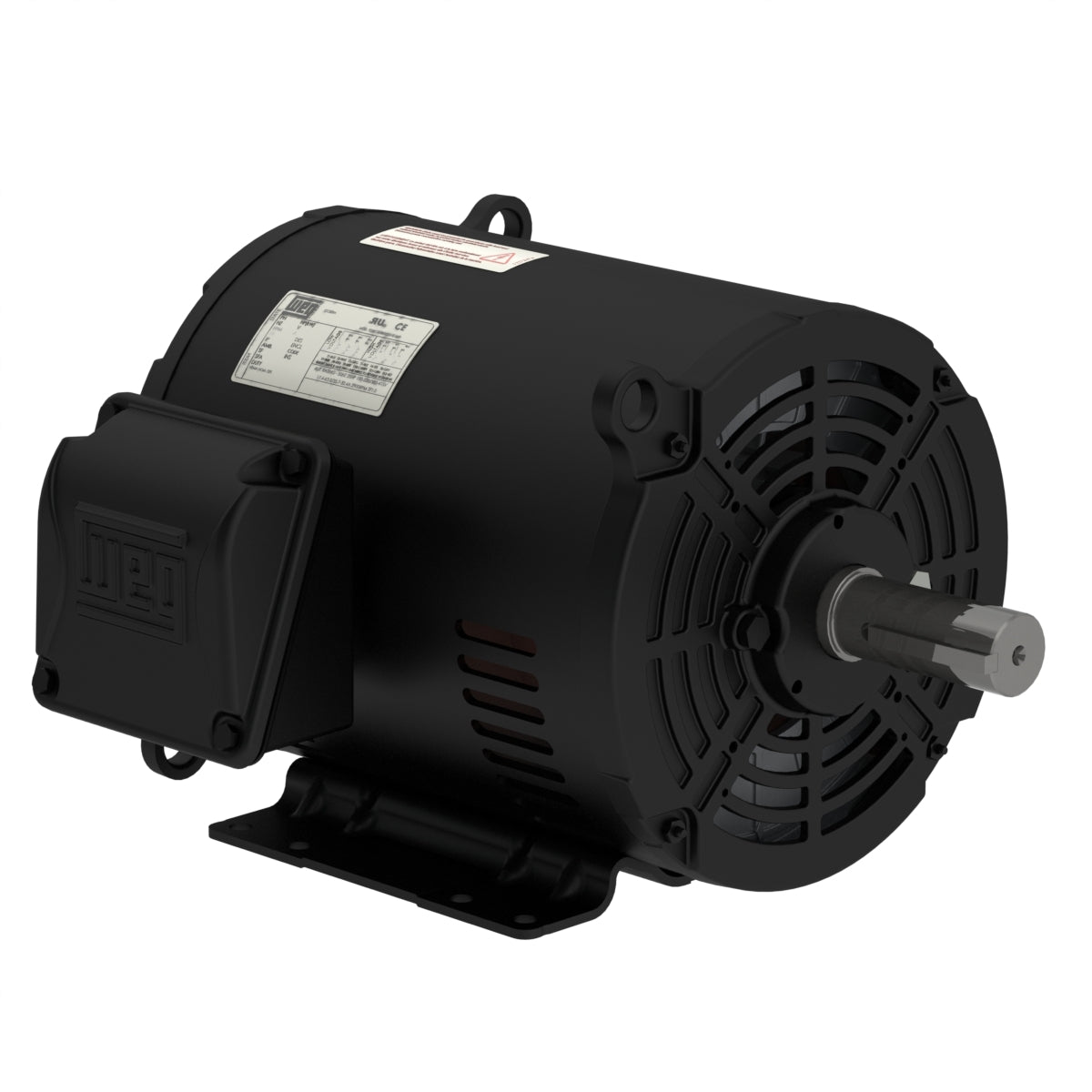

Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.

This model (--SG) has Aegis Ring bearing protection installed.

Specifications

• Model: 00518OT3P184T-SG
• Phase: Three-Phase
• Power: 5 HP
• Base RPM: 1800
• Frame: 184T
• Enclosure: ODP
• Enclosure Rating: IP21
• Voltage: 200V
• Construction: Rolled Steel
• Weight: 87.03 lb
