WEG

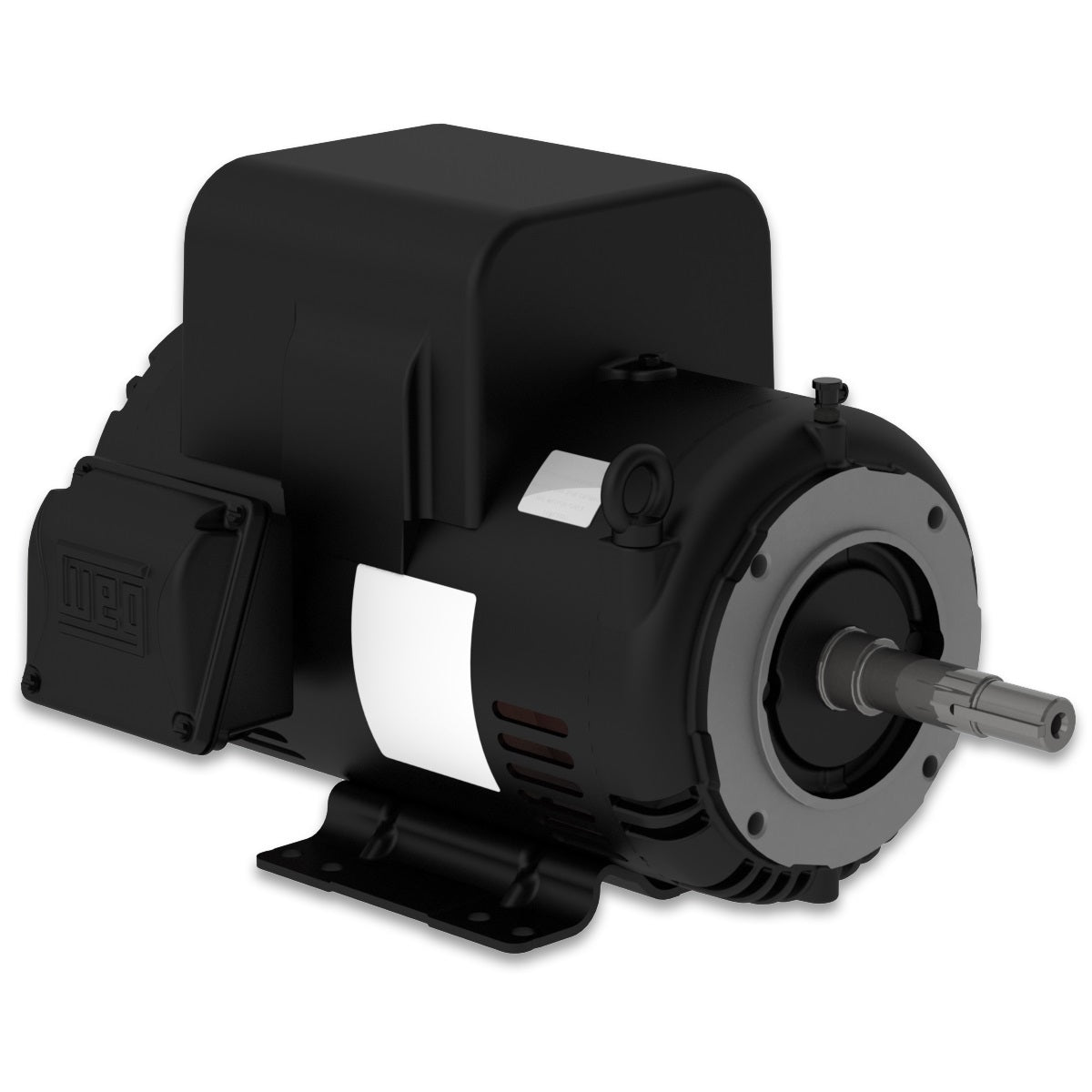

Weg 00336OS1B182JM-S 3 HP 3600 RPM 182JM ODP Single-Phase Close-Coupled Pump Motor
Weg 00336OS1B182JM-S 3 HP 3600 RPM 182JM ODP Single-Phase Close-Coupled Pump Motor
Regular price
$752.29
Regular price
Sale price
$752.29
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG ODP close-coupled pump motors are designed to meet demanding pump allications in environments where dirt and humidity are minimal. The open drip-proof design allows for maximal heat dissipation and lighter weight compared to a TEFC (totally-enclosed fan cooled) motor.
Share
Specifications, Features and Documentation
-
Specs
Model: 00336OS1B182JM-S
Phase: Single-Phase
Power: 3 HP
RPM: 3600
Frame: 182JM
Enclosure: ODP
Voltage: 115/208-230V
Bearings: Ball Bearing
Weight: 77.24 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- Pump
-
Features
- Service Factor for ODP: 1.0
- Service Factor for TEFC: 1.15
- Insulation Class F
- NPT Threaded Terminal Box
- Enclosure Rating for ODP: IP21
- Enclosure Rating for TEFC: IP55
-
More Documentation
