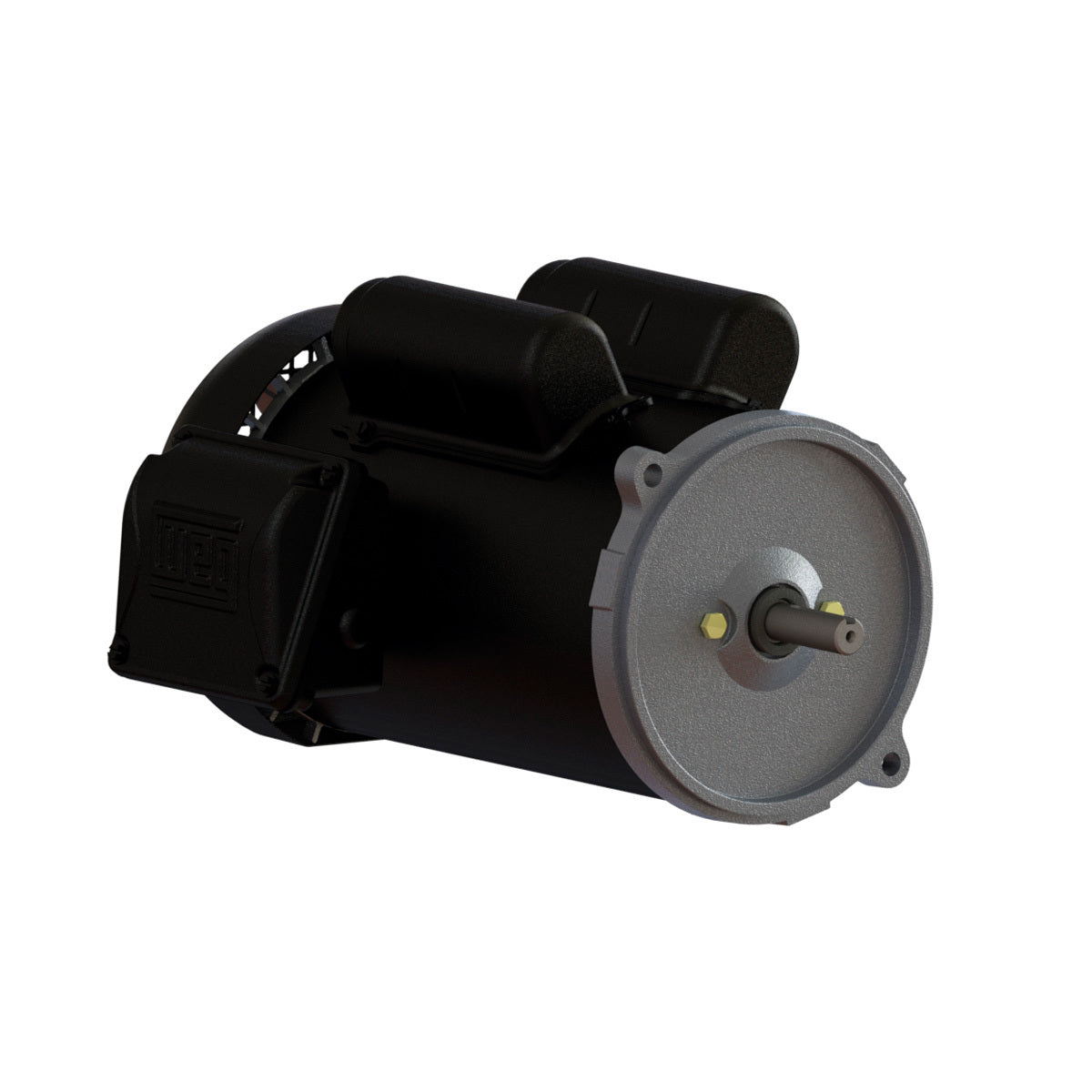

Weg 00158ES1RAD56N 1.5 HP 1800 RPM 56 TEFC Single-Phase Auger Motor
Weg 00158ES1RAD56N 1.5 HP 1800 RPM 56 TEFC Single-Phase Auger Motor
Regular price
$447.75
Regular price
$597.00
Sale price
$447.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
WEG Auger Drive motors are specifically designed for Feed-Drive units requiring a reliable and efficient motor. Provided with mechanical protection of centrifugal switch to prevent damage to the motor in case of overspeed, manual thermal overload protection and two bolts mounting NEMA N flange.
This model is designed to match most for auger drives.
Share
Specifications, Features and Documentation
-
Specs
Model: 00158ES1RAD56N
Phase: Single-Phase
Power: 1.5 HP
RPM: 1800
Frame: 56
Enclosure: TEFC
Voltage: 115/230V
Bearings: Ball Bearing
Weight: 0.07 lb
Efficiency: Standard Efficiency
Construction: Rolled Steel
Application:
- Auger
-
Features
- 2-Bolt NEMA N Flange Mounting
- Extended Shaft (NDE) with wrench flat for manual jogging of auger
- Centrifugal internal switch protected from auger drive overspeed
- Manual Reset Thermal Overload Protector
- Double-Shielded ball bearings
- Totally Enclosed Fan Cooled (IP55) motor
-
