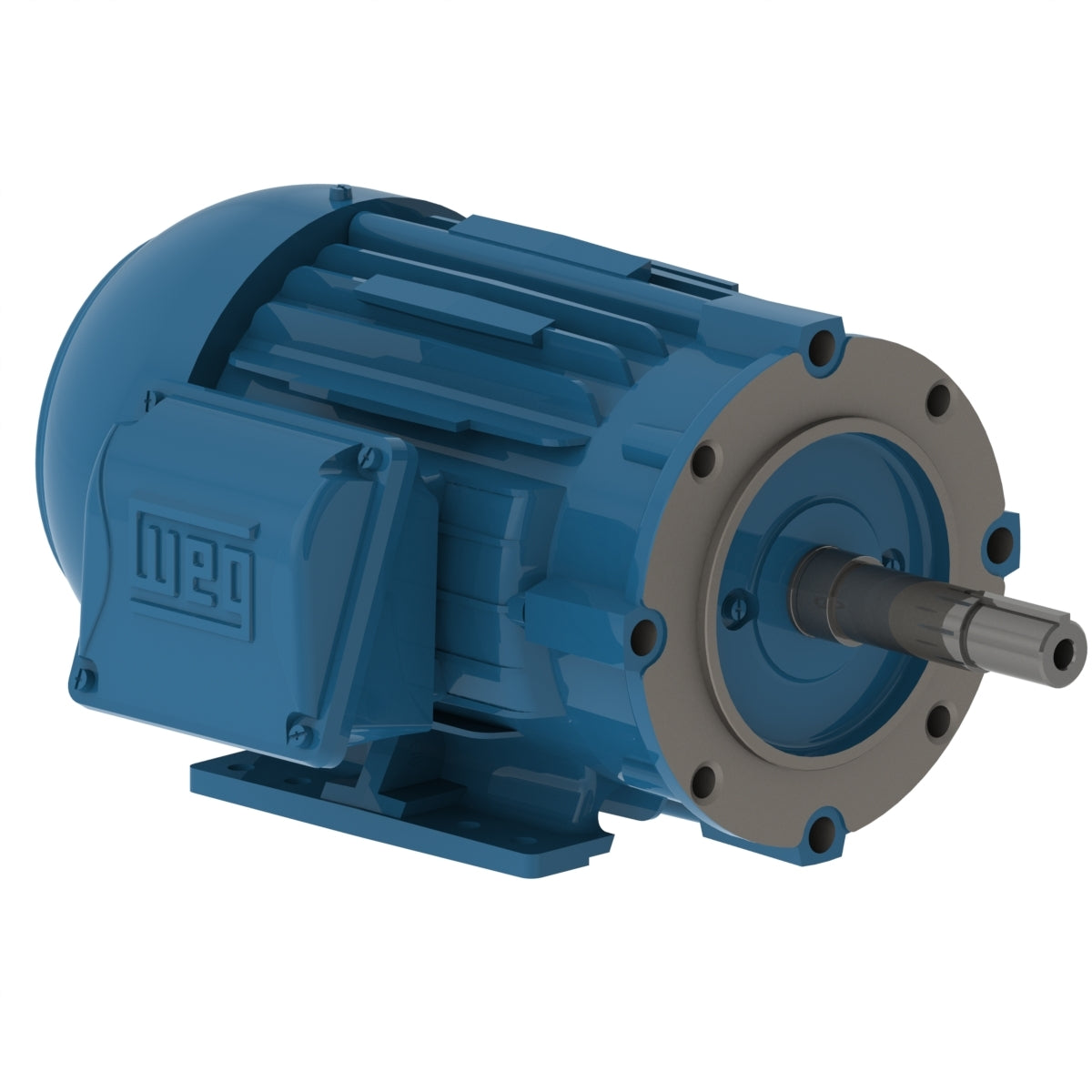

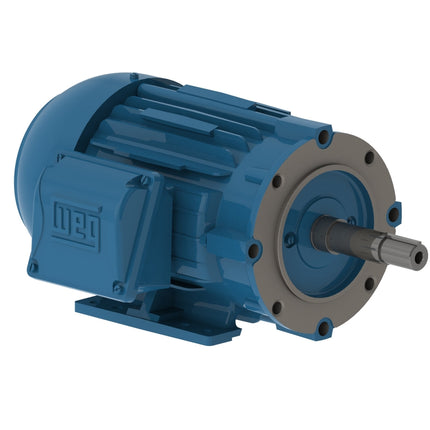

Weg 00156ET3E143JM-W22 1.5 HP 3600 RPM 143JM TEFC Three-Phase Close-Coupled Pump Motor
Weg 00156ET3E143JM-W22 1.5 HP 3600 RPM 143JM TEFC Three-Phase Close-Coupled Pump Motor
Regular price
$546.70
Regular price
Sale price
$546.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 TEFC pump motors are severe duty and VFD rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 1000:1 variable torque.
Share
Specifications, Features and Documentation
-
Specs
Model: 00156ET3E143JM-W22
Phase: Three-Phase
Power: 1.5 HP
RPM: 3600
Frame: 143JM
Enclosure: TEFC
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 53.35 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Inverter Rated 1000:1 Variable Torque
- 1.25 Service Factor
- Class F Insulation with Class H Wire
- Stainless Steel Laser-Etched Nameplate
- Gasketed Conduit Box
- Class I Div 2 Groups A,B,C,D - T3; Class II Div 2 Groups F,G - T3C
- NPT Threaded Terminal Box
- Aegis Ring Shaft Grounding Option ('G' in model suffix)
-
