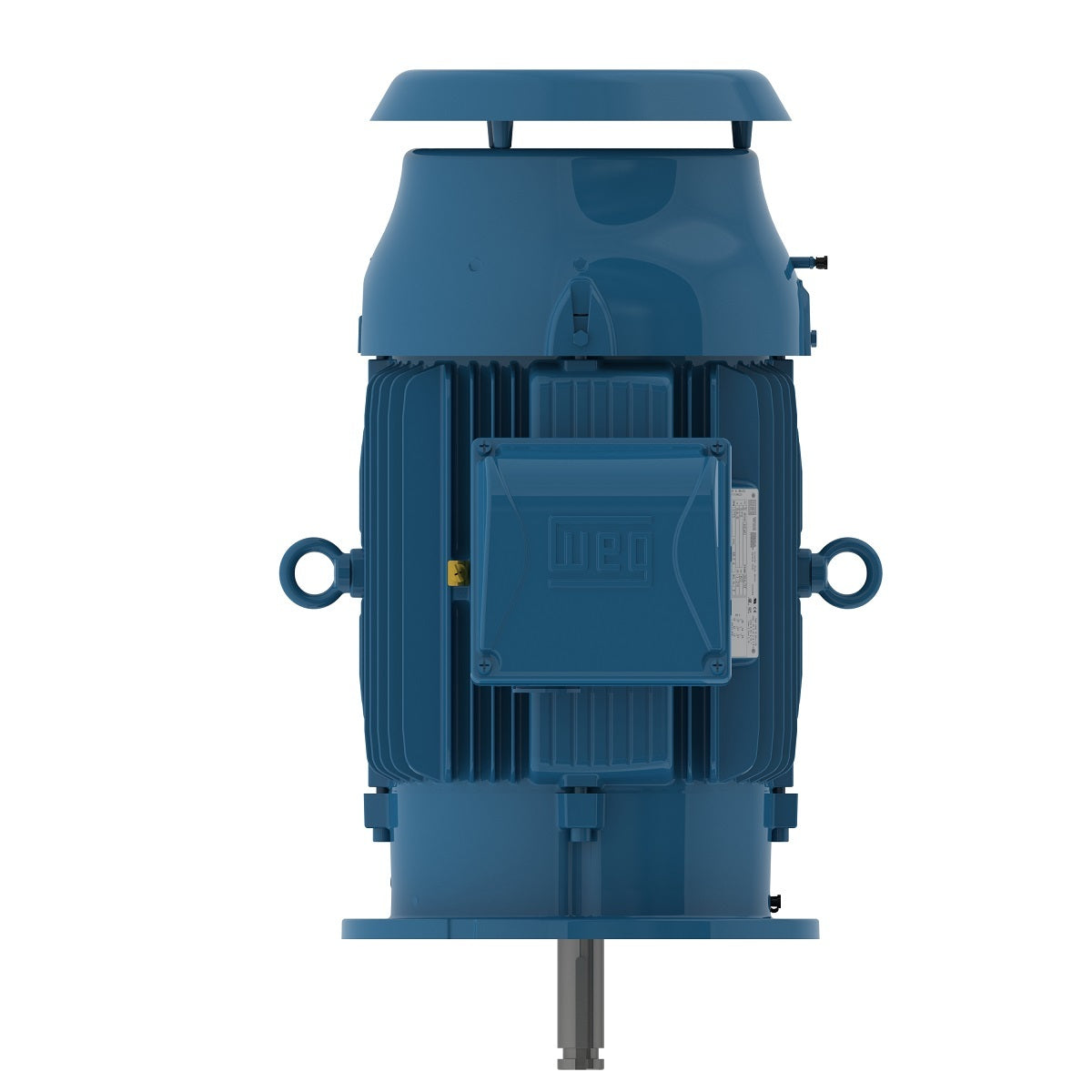

Weg 00156ET3E143HP-W22 1.5 HP 3600 RPM 143HP TEFC Three-Phase P-Base Vertical Pump Motor
Weg 00156ET3E143HP-W22 1.5 HP 3600 RPM 143HP TEFC Three-Phase P-Base Vertical Pump Motor
Regular price
$429.77
Regular price
Sale price
$429.77
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Weg W22 TEFC pump motors are severe duty and VFD rated with rugged features not found in many other electric motors, including IP55 ingress protection, IEEE841 vibration levels, certification to Class I, Div2, and inverter rated to 1000:1 variable torque.
Share
Specifications, Features and Documentation
-
Specs
Model: 00156ET3E143HP-W22
Phase: Three-Phase
Power: 1.5 HP
RPM: 3600
Frame: 143HP
Enclosure: TEFC
Voltage: 230/460V (usable at 208V)
Bearings: Ball Bearing
Weight: 56.33 lb
Efficiency: NEMA Premium Efficiency
Construction: Cast Iron
Application:
- Pump
-
Features
- Inverter Rated 1000:1 Variable Torque
- HP and HPH Types Available
- 1.25 Service Factor
- NPT Threaded Terminal Box
- Gasketed Terminal Box
- Stainless Steel Laser-Etched Nameplate
- Class F Insulation with Class H Magnet Wire
- Class I Div 2 Groups A,B,C, D-T3, Class II Div II Groups F&G-T3C
-
