Description

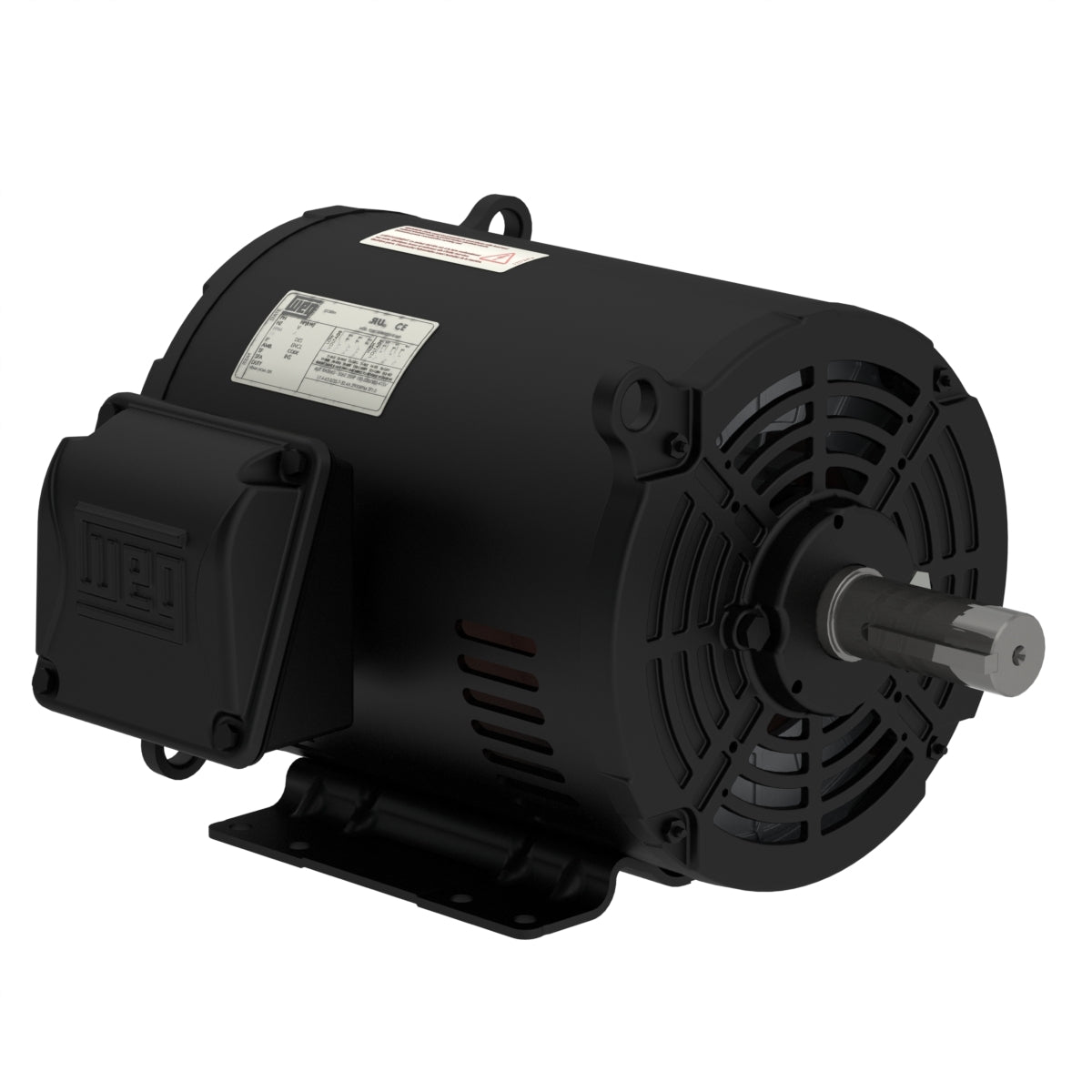

Weg rolled steel open drip proof (ODP) motors are general purpose motors designed to provide a low-cost light-weight solution for environments where dirt and moisture are minimal. Popular applications include jet pumps, close-coupled pumps, and small compressors. VFD suitable and internal mounting for optional AEGIS shaft grounding rings.

This model (--SG) has Aegis Ring bearing protection installed.

Specifications

• Model: 00152OT3E182T-SG
• Phase: Three-Phase
• Power: 1.5 HP
• Base RPM: 1200
• Frame: 182T
• Enclosure: ODP
• Enclosure Rating: IP21
• Voltage: 230/460V (usable at 208V)
• Construction: Rolled Steel
• Weight: 61.56 lb
