Description

Techtop Cast Iron motors are well built with many features not found on other motors. They are NEMA Premium rated for efficiency, and compliant for use with variable frequency drives (VFDs). The terminal box can be rotated 90-degrees. A service factor of 1.25 along with IP23 rating and VPI tropicalization winding makes these motors an excellent value. Comes with a 3-year / 36-month warranty.

Spec Sheets

460V-60Hz

3D Models

GR-447T-CI-OP.step

Specifications

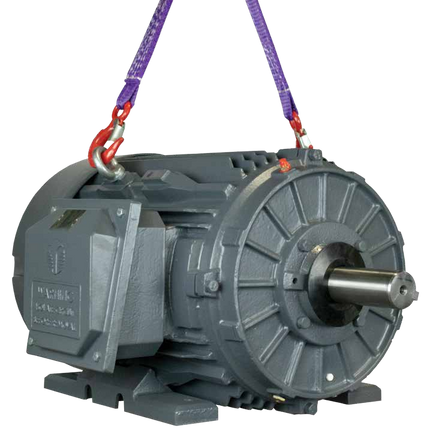

• Model: GR3-CI-OP-447T-4-RR-E-200
• Phase: Three-Phase
• Power: 200 HP
• Base RPM: 1800
• Frame: 447T
• Enclosure: ODP
• Enclosure Rating: IP23
• Voltage: 460V
• Construction: Cast Iron
• Weight: 2100 lb
