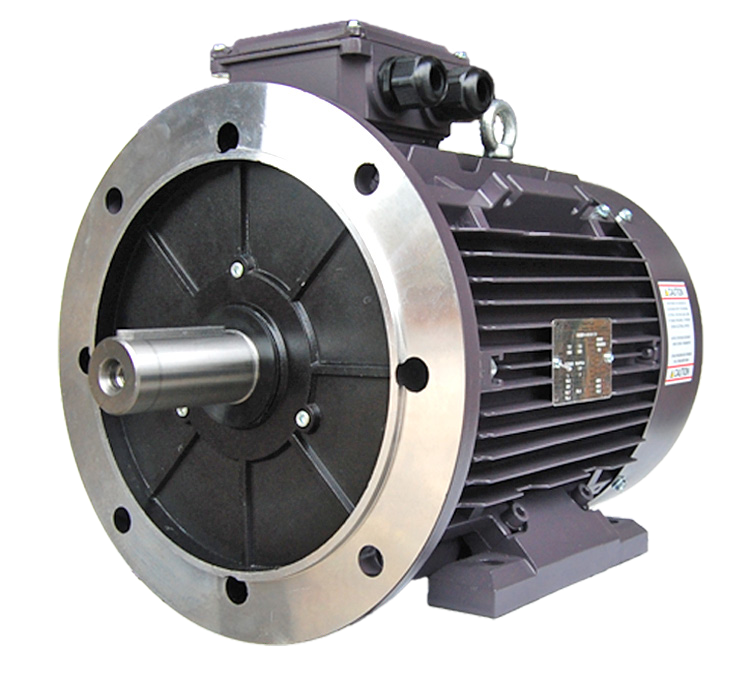

Techtop GR3-AL-TF-112MB35-2-B-D-5.5 TEFC 5.5 HP 3600 112MB35 IEC Motor
Techtop GR3-AL-TF-112MB35-2-B-D-5.5 TEFC 5.5 HP 3600 112MB35 IEC Motor
Regular price
$1,072.74
Regular price
Sale price
$1,072.74
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop IEC Motors are high-quality motors with features not found on other brands, such as IP55 rated ingress protection, brass condensation drains, and Class 1, Div 2 Groups A,B,C & D Compliant rating. Designed to meet IEC-standards metric specifications, with a 36 month 3-year warranty.
Frames ending in B35 have the larger IEC B5 flange for shaft-face mounting.
Share
Specifications, Features and Documentation
-
Specs
Model: GR3-AL-TF-112MB35-2-B-D-5.5
Phase: Three-Phase
Power: 5.5 HP (4.1 kW)
RPM: 3600
Frame: 112MB35
Enclosure: TEFC
Voltage: 208-30/460 VAC
Bearings:
Weight: 64 lb
Efficiency:
Construction:
Application:
- General Purpose
- Metric IEC
-
Features
- IP 55 Ingress Protection
- Inverter Rated 15:1 Constant Torque - MG1 Part 31
- Double Lip Shaft Seals on Both Ends
- VPI Lap Wound Stator with Tropicalization
- Dual Oversized Bearings
- Multi-Mount Removable Feet
- Corrosion Resistant Hardware
- Rubber Slinger on Drive End
- Conduit Box 90° Rotatable
- Zerk Regreasable Bearings on Frames 160 and larger
- F1,F2,F3 Conduit Box Location Field Convertable
- Class H Insulated Stator with Class F Leads
- One-Way Brass Condensation Drains on Both Ends
- Class 1, Div 2, Groups A,B,C, and D Compliant
- 36 Month Warranty_
