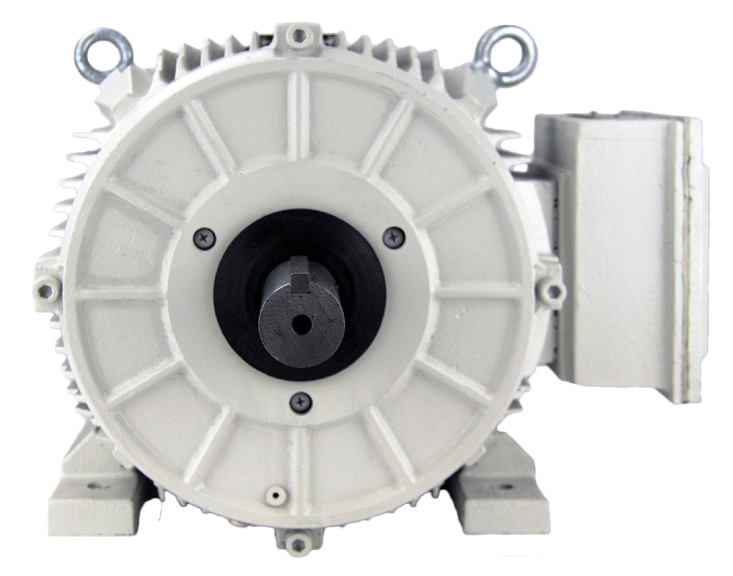

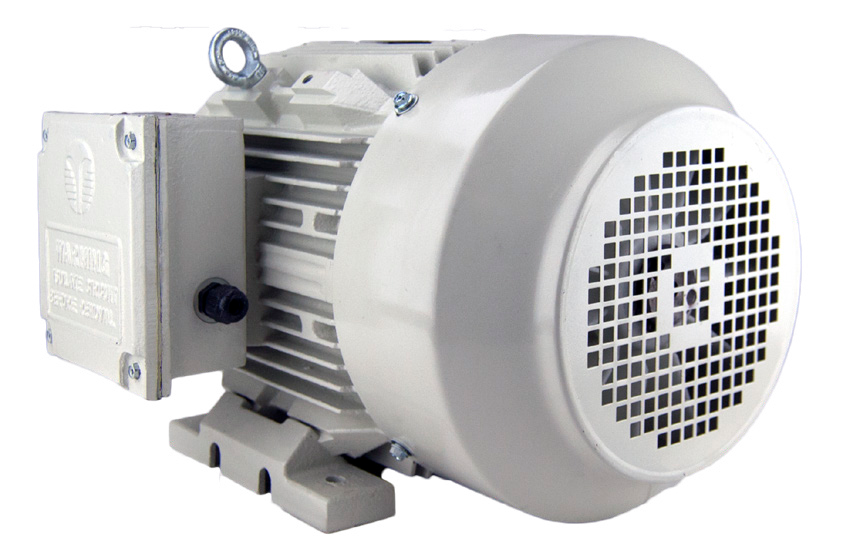

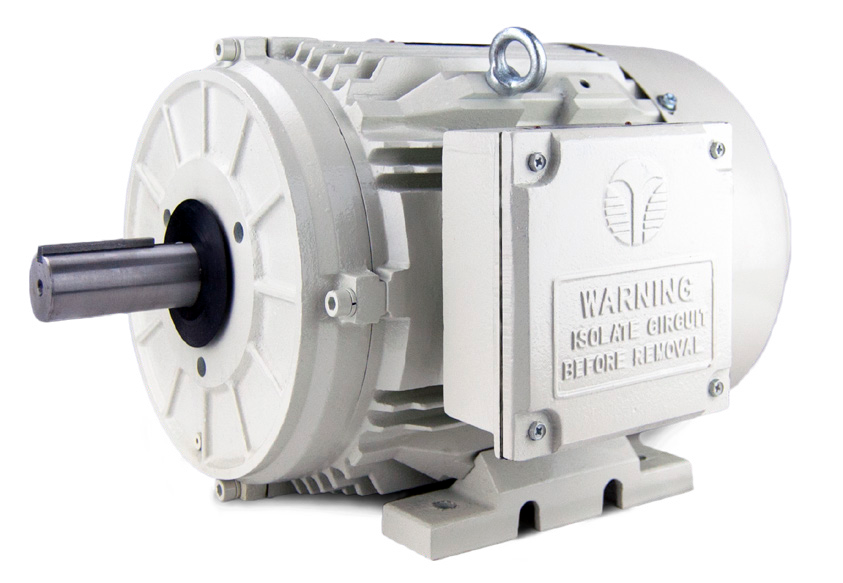

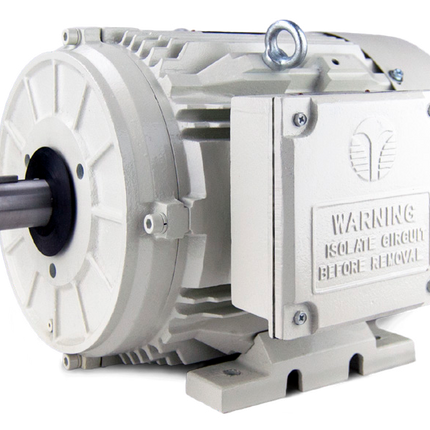

Techtop BK3-CI-TF-365T-6-BR-G-50 TEFC 50 HP 1200 365T Oil Pump Motor
Techtop BK3-CI-TF-365T-6-BR-G-50 TEFC 50 HP 1200 365T Oil Pump Motor
Regular price
$3,950.25
Regular price
Sale price
$3,950.25
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Techtop Oil Pumper motors are engineered specifically for high inertia starting loads, such as oil pumps and cranes. NEMA Design code 'D' allow for higher 'slip' while boosting starting torque.
Share
Specifications, Features and Documentation
-
Specs
Model: BK3-CI-TF-365T-6-BR-G-50
Phase: Three-Phase
Power: 50 HP
RPM: 1200
Frame: 365T
Enclosure: TEFC
Voltage: 230/460/796 VAC
Bearings:
Weight: 756 lb
Efficiency:
Construction:
Application:
- Oil Pump
-
Features
- 5%-8% Slip NEMA Design D
- Double Lip Oil Seals on Both Ends
- Cast Iron Terminal Box with Gasket
- Roller Bearing on 404T and Above
- TEFC Cast Iron Frame
- Corrosion Resistant Hardware
- T-Box Mount Position Convertable F1,F2,F3 up to 326T
- Class F Insulation , Class H Stator
- VPI and Tropicalization on Stator Winding
- One-Way Brass Condensation Drains
- 24 Month Warranty
