ABB Baldor

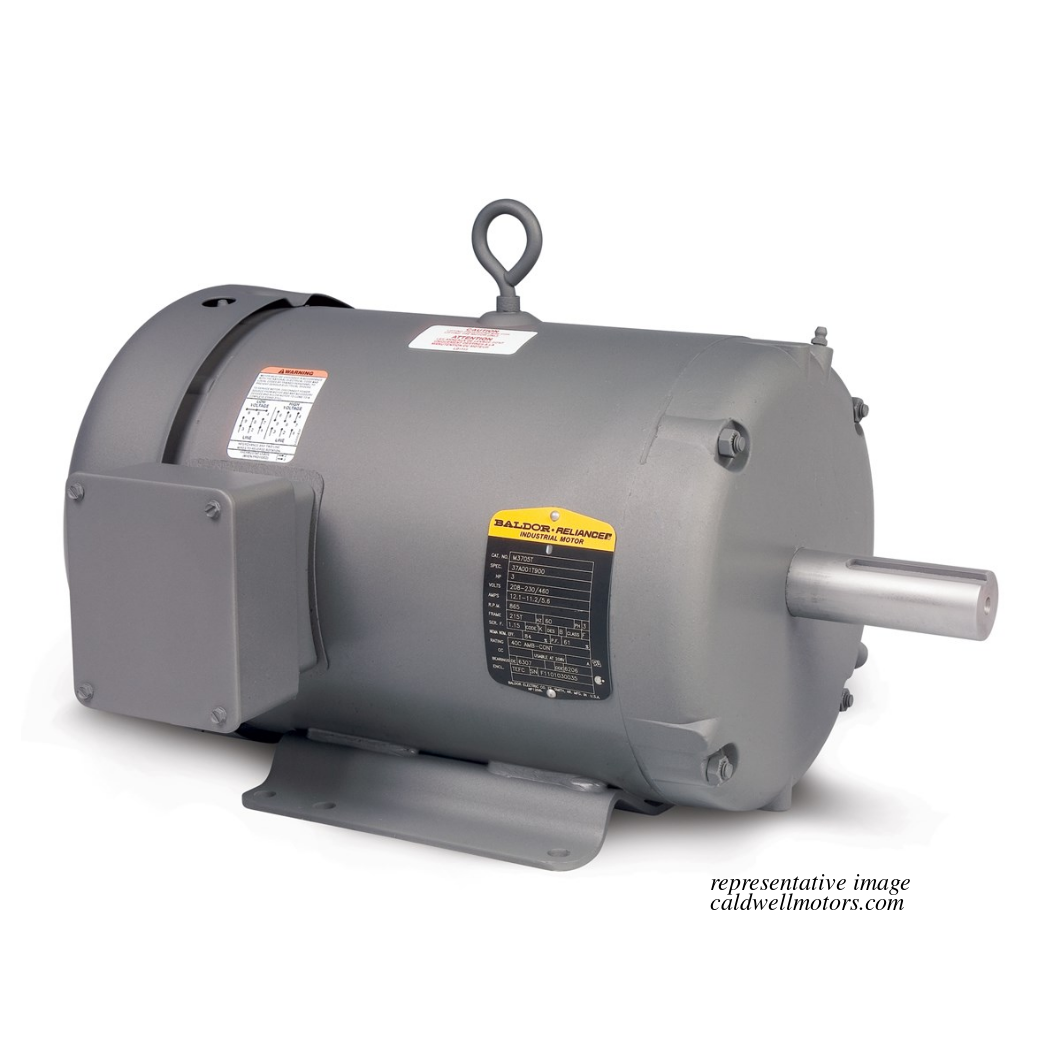

Baldor M3538-57 0.5 HP 1425 rpm RPM 56 TEFC Three-Phase 230/400 V 50 Hz Motor
Baldor M3538-57 0.5 HP 1425 rpm RPM 56 TEFC Three-Phase 230/400 V 50 Hz Motor
Regular price
$543.89
Regular price
Sale price
$543.89
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Quick Specs
| Catalog No | M3538-57 |
| Phase | 3 |
| Output Power | 0.5 HP |
| RPM | 1425 rpm |
| Frame | 56 |
| Enclosure | TEFC |
| Voltage | 230/400 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Heavy Gauge Steel
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: M3538-57
Phase: Three-Phase
Power: 0.5 HP
RPM: 1500
Frame: 56
Enclosure: TEFC
Voltage: 230/400
FL Amps: 1
Efficiency: 73
Service Factor: 1.25
Construction: Steel
Shaft Diameter:
Inverter Ready? Not Inverter
NEMA Design: B
Weight: 26 lb
Application:
- General Purpose
