ABB Baldor

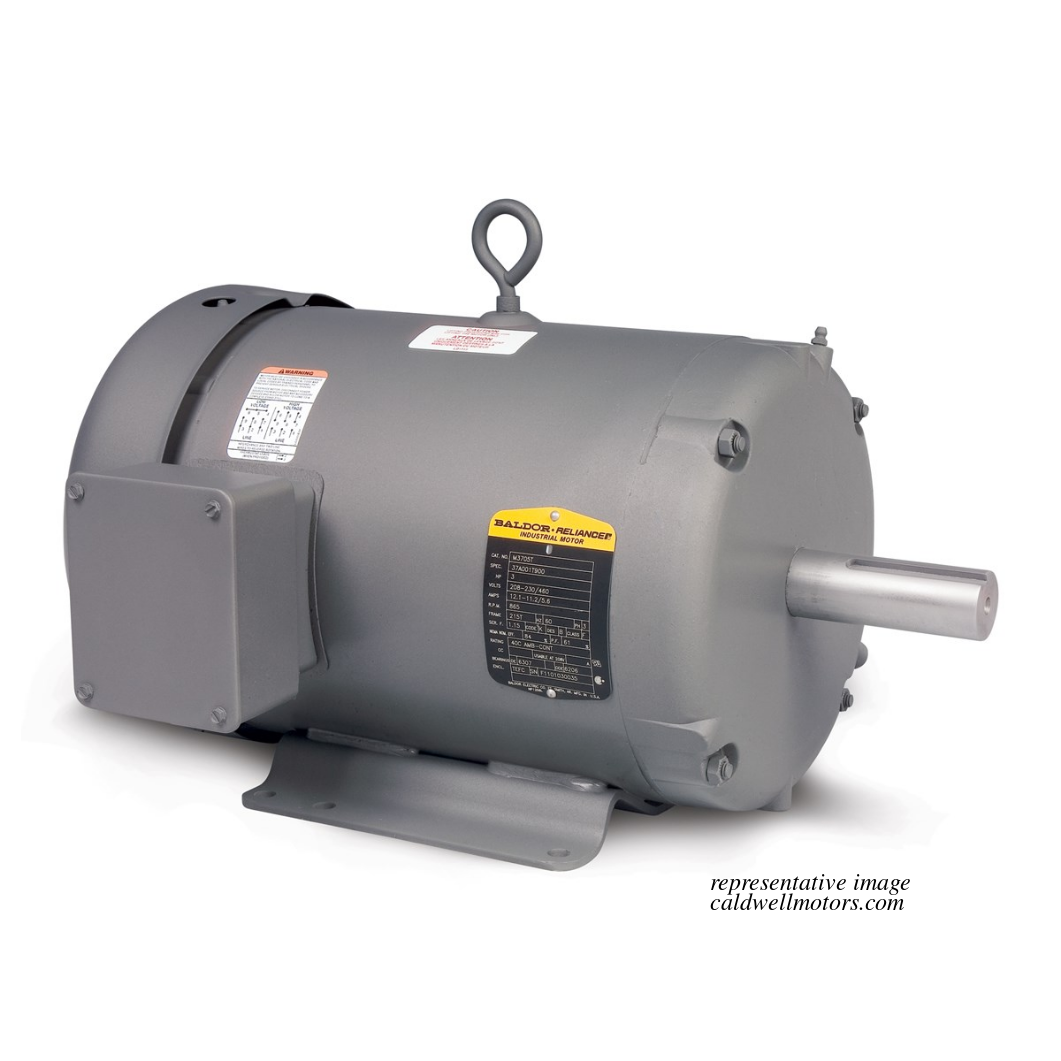

Baldor EM3615T-57 5 HP 1450 rpm RPM 184T TEFC Three-Phase 230/400 V 50 Hz Motor
Baldor EM3615T-57 5 HP 1450 rpm RPM 184T TEFC Three-Phase 230/400 V 50 Hz Motor
Regular price
$1,091.60
Regular price
Sale price
$1,091.60
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor general purpose three-phase totally enclosed motors are rugged, reliable motors designed and built in the USA. The motors deliver high starting torque and high reliability and come with an 18 month warranty and 36 months on Super-E motors.
Quick Specs
| Catalog No | EM3615T-57 |
| Phase | 3 |
| Output Power | 5 HP |
| RPM | 1450 rpm |
| Frame | 184T |
| Enclosure | TEFC |
| Voltage | 230/400 V 50 Hz |
Features
- Low Noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design
- Upgrade to IP54 with drain fitting kit #HA5027A03
- Robust Heavy Gauge Steel
Dimensional Drawing
Wiring Diagram
Share
Specifications and Documentation
-
Specs
Model: EM3615T-57
Phase: Three-Phase
Power: 5 HP
RPM: 1500
Frame: 184T
Enclosure: TEFC
Voltage: 230/400
FL Amps: 8
Efficiency: 88.4
Service Factor: 1.15
Construction: Steel
Shaft Diameter:
Inverter Ready? Not Inverter
NEMA Design: B
Weight: 101 lb
Application:
- General Purpose
