Description

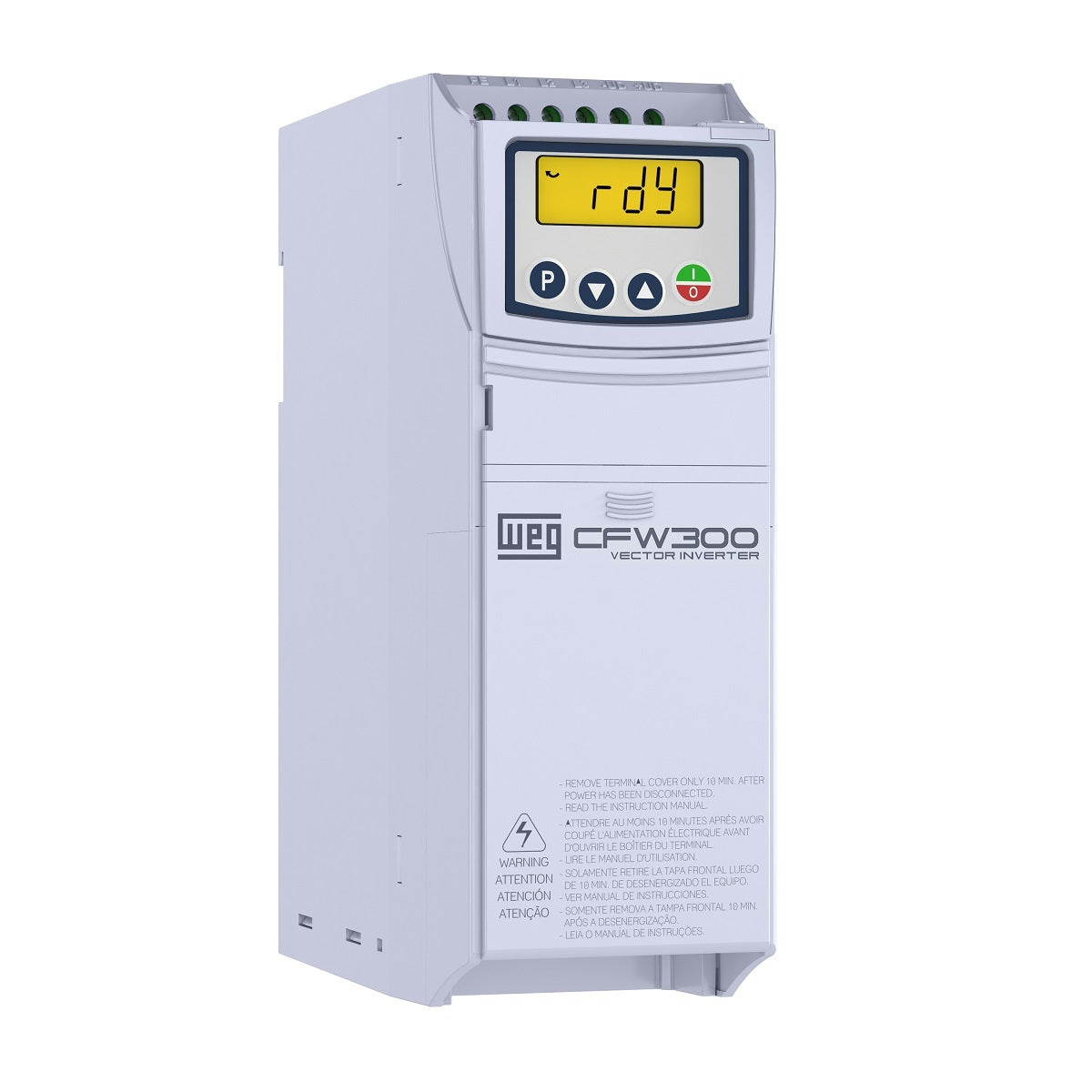

The Weg CFW300 series AC Drive for 3-phase induction motors is a compact, cost-effective VFD for a variety of applications.
The drive features a compact IEC DIN-Rail mountable frame with contactor-style connections (top in / bottom out).
The CFW300 product range includes single-phase 120 or 230 VAC input up to 3 HP, as well as 3-phase 240VAC input up to 5 HP.
Features
-
DIN-Rail Form Factor
Easily replace contactor/overlaod setup with VFD.
-
Built-In Motor Protection
Protects motor from overload/overcurrent, overvoltage, phase-loss, and more
-
SoftPLC
Flexible customization with programmable ladder logic and free WPS software.
-
Built-In PID Controller
PID mode provides closed loop process control from pressure, flow, or other input.
-

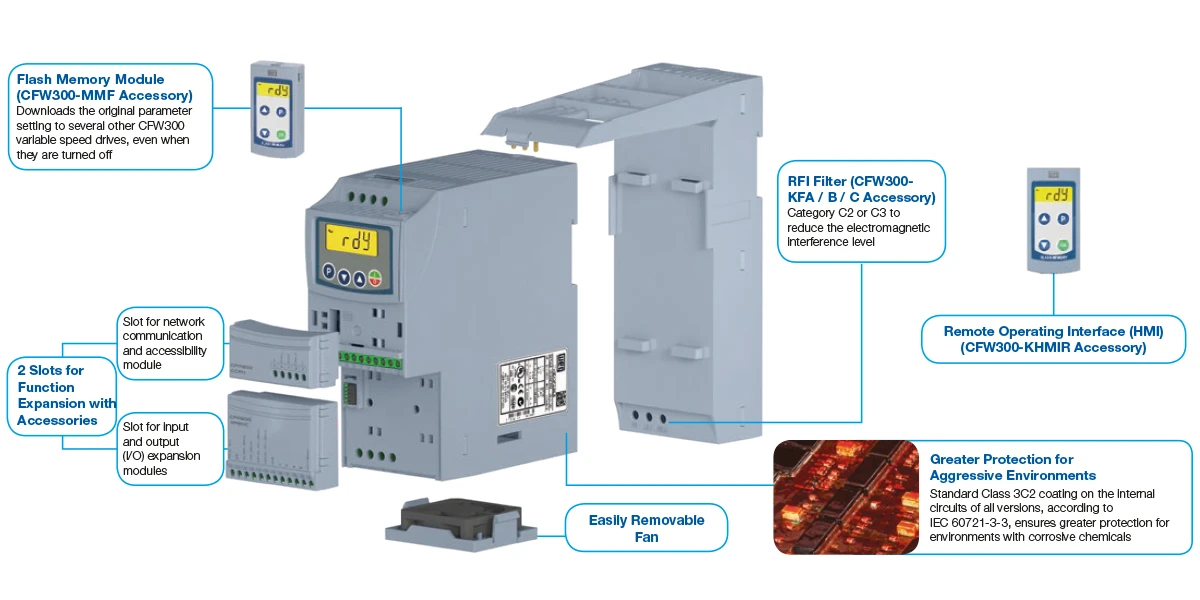

2-Slots for Options
Large variety of communications and I/O Option Modules available
-
Conformal-Coated Circuit Boards
Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3.
Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.
